Tractor · 2020Unverified

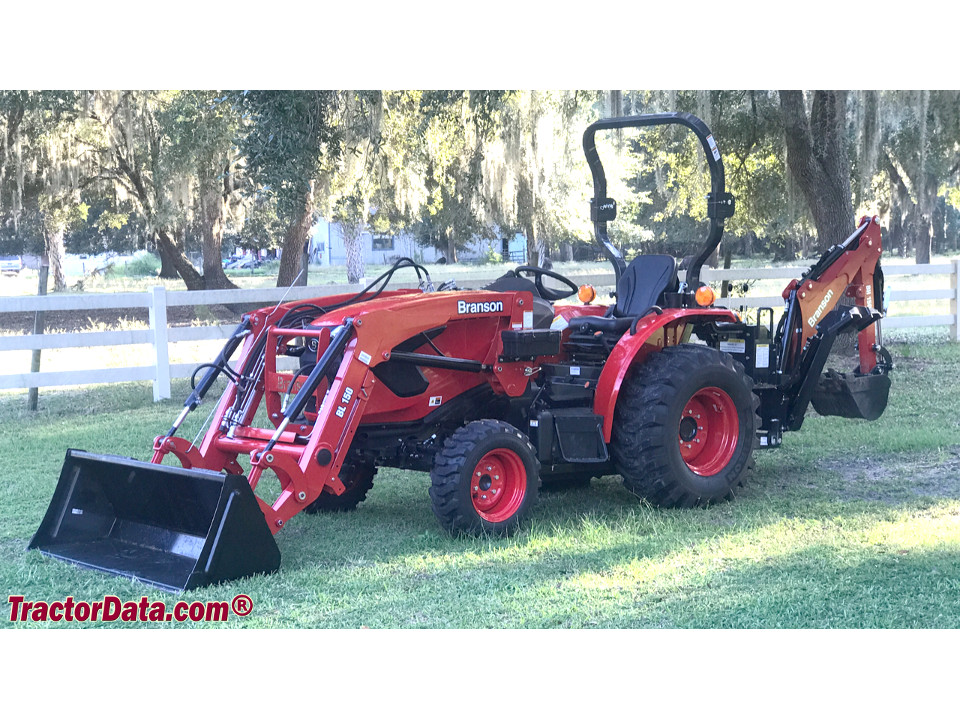

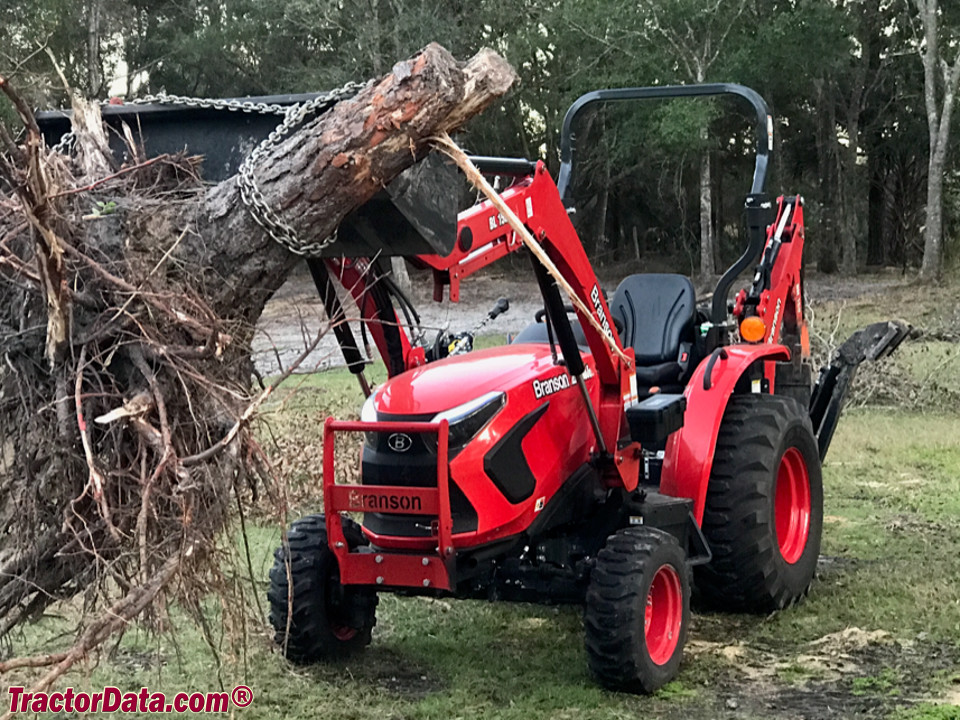

Branson 2515
Branson 2515 — 15 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2969 to 2989 pounds
Hover a source tag to verify
Overview
ManufacturerBranson (a part of TYM)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
2515HhydrostaticReference
2515RshuttleReference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)17.9 kWReference
Kukje A1700N6Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier IVReference
Power (gross)17.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed sync shuttleReference
hydrostaticReference
Gear Weight1355 kgReference
Typesync shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)15.7 kWReference
Pump flow28.4 lpmReference
Total flow43.5 lpmReference
Steering flow15.1 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase166 cmReference
Weight2969 to 2989 poundsReference
Front tire8-16Reference
Rear tire12.4-24Reference
Ag front8-16Reference
Ag rear12.4-24Reference
Industrial front28x8.50-15Reference
Industrial rear43x16.00-20Reference
Length307 cmReference
Width143 cmReference
Height (ROPS)264 cmReference
Height (Folded ROPS)152 cmReference
Hydro Weight1346 kgReference
Ground clearance36 cmReference
Branson 2515 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Branson BH150 Backhoe
Backhoe typeBranson BH150 BackhoeReference
Transport height212 cmReference
Bucket width40 cmReference
Digging depth233 cmReference
Reach from pivot313 cmReference
Bucket Rotation149°Reference
Swing Arc180°Reference
Bucket force1986 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
