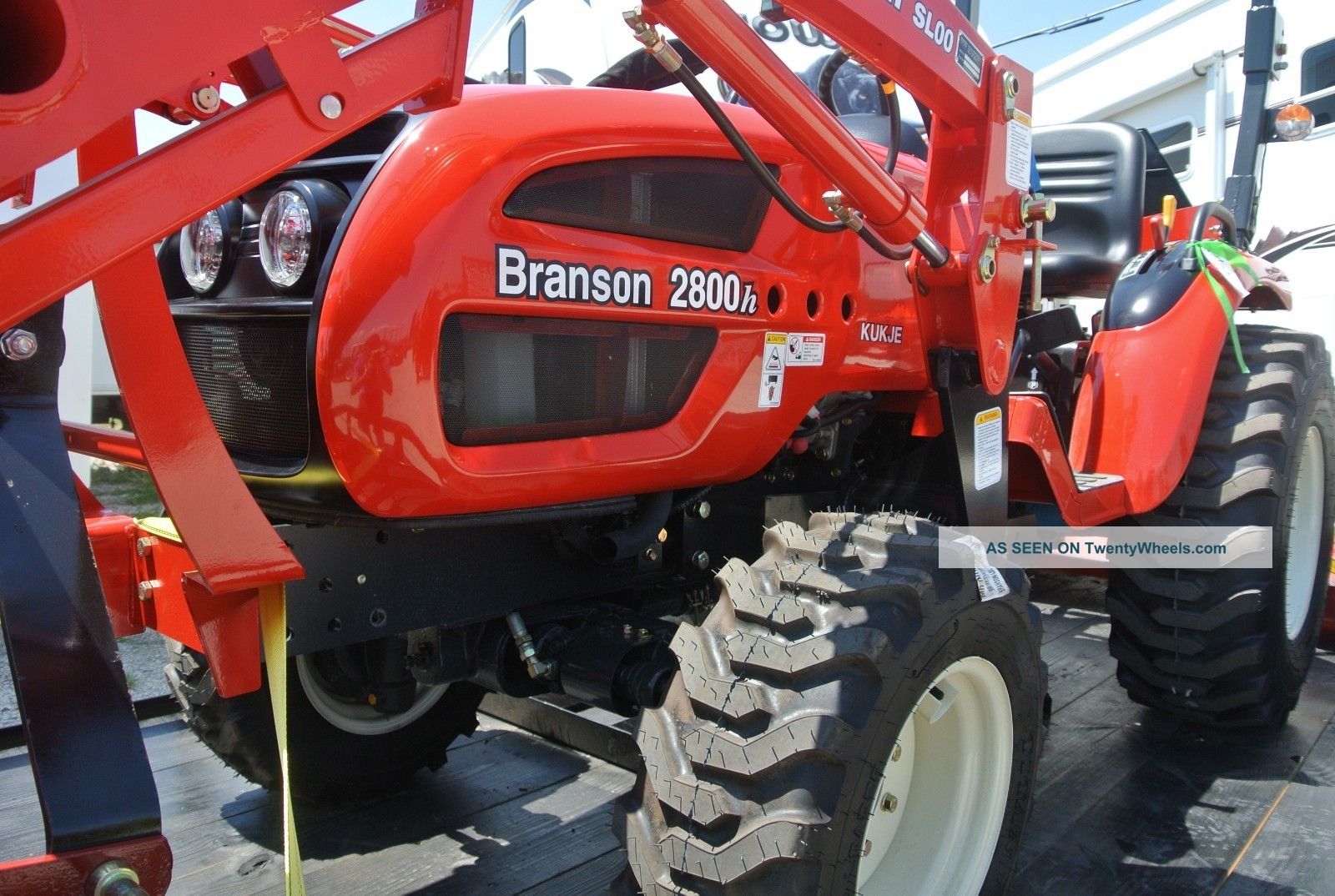

The Branson 2800 is a compact tractor model with a rated power output of 28 hp, manufactured in 2007. It features a 3-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The tractor's listed weight is 917 kg, and it is designed for use in areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
917 kg
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Recorded power
28 hp
Recorded weight
917 kg
Transmissions
6-speed gear
Production years
2007-2007
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorBransonReference
ManufacturerKukjeReference
Built in Yangsu-ri, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS.Reference
Variants
2800hhydrostatic transmissionReference
Engine
1.1L 3-cyl dieselReference
Fuel tank23.0 LReference
Engine (gross)20.9 kWReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Power (gross)20.9 kWReference
Air cleanerdry elementReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)18.6 kWReference
Total flow31.4 lpmReference
Rear TypeIReference
Rear PTO Type540/960Reference
Mid PTO Type2500Reference
Dimensions
Wheelbase150 cmReference
Weight917 kgReference
Industrial front12x8.5-12Reference
Industrial rear12-16.5Reference
Length303 cmReference
Width112 cmReference
Height (ROPS)221 cmReference
Weight917 kgReference
Weight917 kgReference
Ground clearance34 cmReference
Front tread85 cmReference
Rear tread87 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
