Tractor · 2005Unverified

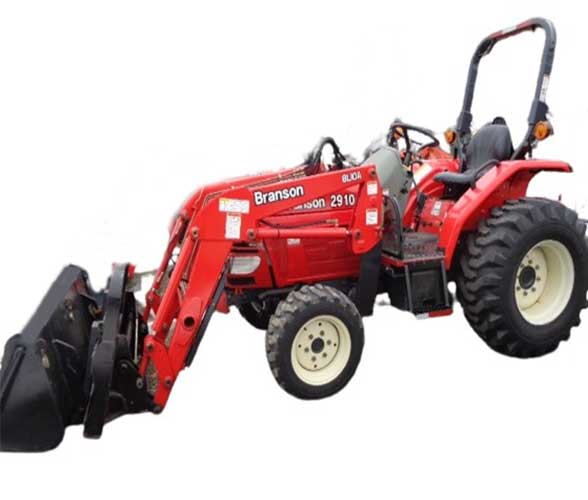

Branson 2910i
Branson 2910i — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1651 kg
Hover a source tag to verify
Overview
ManufacturerBransonReference
Compact Utility tractorReference
Built in Yangsu-ri, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kukje 1.5L 3-cyl dieselReference
Engine21.6 kWReference
KukjeReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 88 mmReference
Power21.6 kWReference
Compression21.2:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity3.0 LReference
Transmission
12-speedReference
TransmissionsynchromeshReference
Gears12 forward and reverseReference
Oil capacity35.0 LReference
PTO & Hydraulics
PTO (claimed)18.6 kWReference
Hydraulic system35.0 LReference
Typeopen centerReference
Capacity35.0 LReference
Valves1 to 3Reference
Pump flow33.7 lpmReference
Total flow50.0 lpmReference
Rear TypeIReference
Rear lift1170 kgReference
Rear PTOlive , independent optional (2-stage clutch)Reference
Rear PTO Type540/1000Reference
Capacities
Fuel40.1 LReference
Dimensions
Wheelbase165 cmReference
Weight1651 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Ag front7-16Reference
Ag rear12.4-24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear41x14.00-20Reference
Industrial front27x8.50-15Reference
Industrial rear15x19.5Reference
Industrial front10-16.5Reference
Industrial rear420/70-24Reference
Length304 cmReference
Width149 cmReference
Height241 cmReference
Ground clearance28 cmReference
Front tread113 cmReference
Rear tread107 to 145 cmReference
Electrical
GroundnegativeReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
