Tractor · 2016Unverified
Branson 3015H
Branson 3015H — 15 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1367 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS.Reference
Variants
3015RshuttleReference
3015HhydrostaticReference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank26.5 LReference
Engine22.4 kWReference
Kukje A1700N5Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier 4Reference
Power22.4 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Pump flow32.9 lpmReference
Steering flow17.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1097 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase167 cmReference
Weight1367 kgReference
Front tire7x16Reference
Rear tire12.4x24Reference
Ag front7x16Reference
Ag rear12.4x24Reference
Industrial front28x8.50-15Reference
Industrial rear43x16-20Reference
Length299 cmReference
Width144 cmReference
Height (ROPS)238 cmReference
Height (Folded ROPS)152 cmReference
Ground clearance30 cmReference

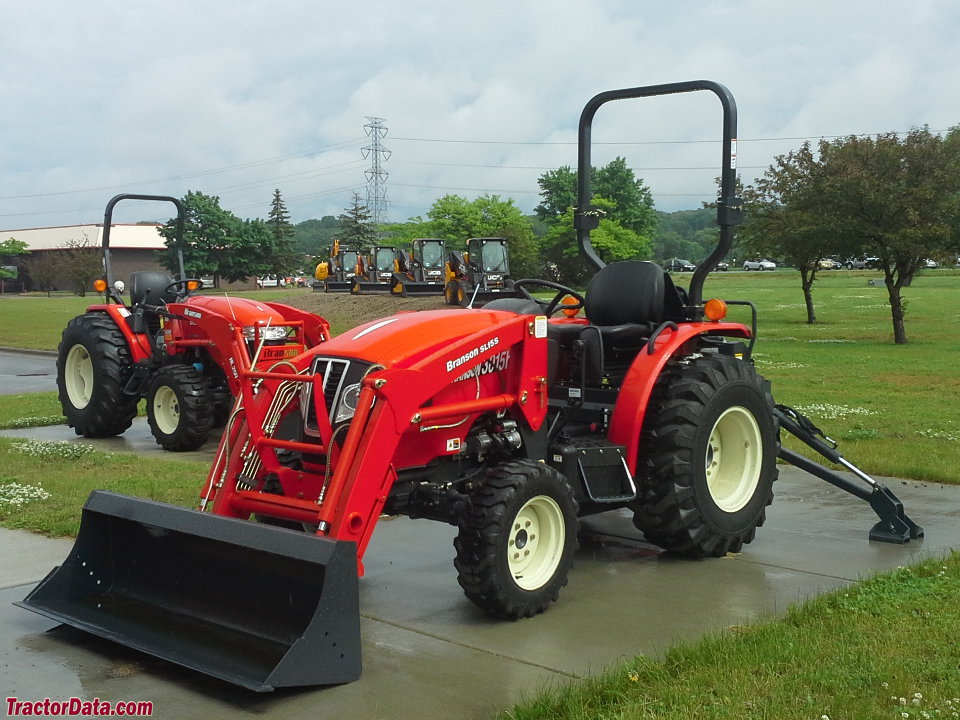

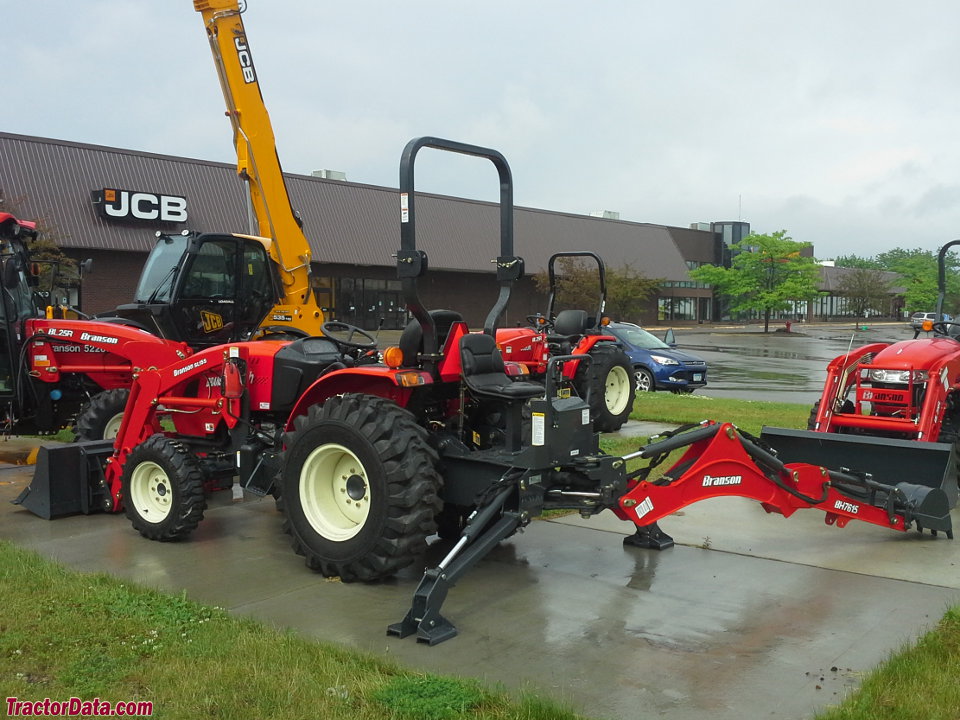

Branson 3015H attachments
front-end loaderReference
3015H Serial Number Location
Serial number plate on the front right side of the main tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
