Tractor · 2008Unverified

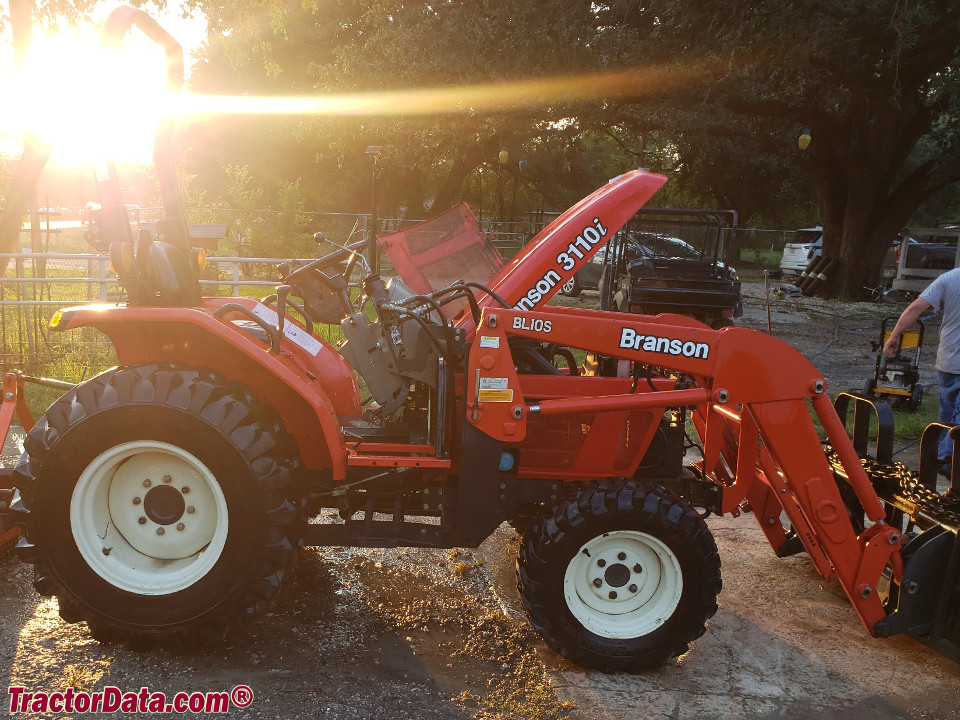

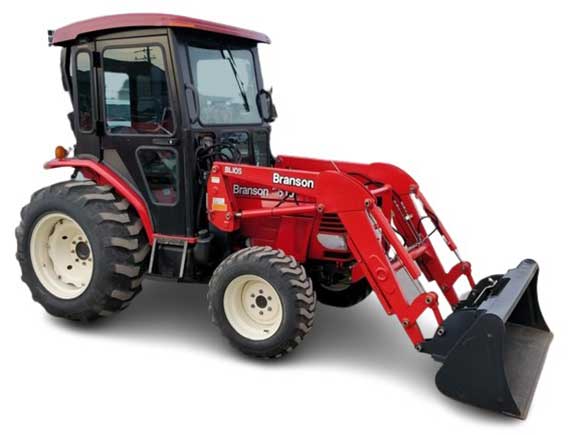

Branson 3110i

Name: Branson 3110i
Brand: Branson

Branson 3110i — Kukje built · 31 hp. Reference specifications; pending source verification.

The Branson 3110i is a tractor model with a rated output of 31 hp, making it a compact option in its class. It was produced in 2008 and features a 3-cylinder diesel liquid-cooled engine, which powers a hydrostatic transmission and four-wheel drive system. The listed weight of the 3110i is 1694 kg, and it is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Weight

1694 kg

Catalogue coverage

Variants represented

Richest spec table

37 rows

Recorded power

31 hp

Recorded weight

1694 kg

Transmissions

12-speed synchronized shuttle

Production years

2008-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorBransonReference

ManufacturerKukjeReference

Built in Yangsu-ri, South KoreaReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

ROPS. Canopy optional. Soft cab optional.Reference

Engine

1.6L 3-cyl dieselReference

Fuel tank41.6 LReference

Engine (gross)23.1 kWReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Power (gross)23.1 kWReference

Air cleanerdry elementReference

Pre-heatingblock heater (optional)Reference

Rated RPM2600Reference

Starter typeelectricReference

Transmission

12-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in each of three ranges plus synchronized shuttle.Reference

PTO & Hydraulics

Valves0 to 2Reference

Total flow31.8 lpmReference

Rear TypeIReference

Rear lift (at ends)970 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Dimensions

Wheelbase165 cmReference

Weight1694 kgReference

Length302 cmReference

Width139 cmReference

Height (ROPS)241 cmReference

Ground clearance27 cmReference

Front tread113 cmReference

Rear tread107 to 145 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
