Tractor · 2011Unverified

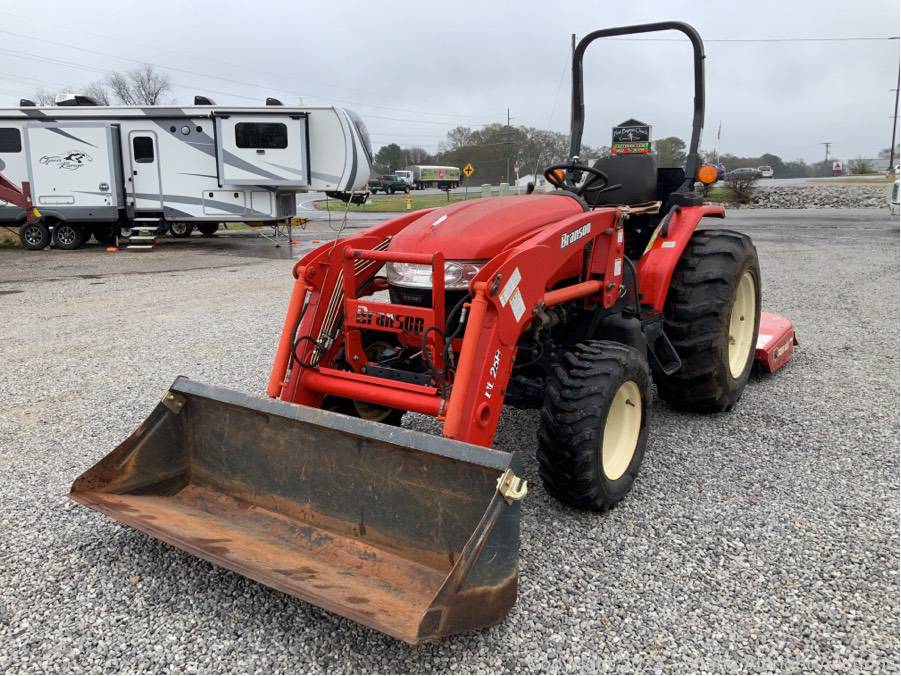

Branson 3120R

Name: Branson 3120R
Brand: Branson

Branson 3120R — 20R Series · 27 hp. Reference specifications; pending source verification.

The Branson 3120R is a compact tractor, rated at 27 hp, which was manufactured from 2011 to 2015. It features a 3-cylinder diesel liquid-cooled engine, powering four-wheel drive through a hydrostatic transmission. The tractor's listed weight is 1838 kg, suitable for tasks on approximately 200 acres. Specifications for this model are available in both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Weight

1838 kg

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

27 hp

Recorded weight

1838 kg

Transmissions

12-speed synchro shuttle

Production years

2011-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBransonReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Kukje 1.6L 3-cyl dieselReference

Fuel tank35.2 LReference

Engine23.1 kWReference

Kukje A1500N2-RReference

dieselReference

3-cylinder 6-valveReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke84 x 94 mmReference

Power23.1 kWReference

Fuel use7.2 l/hourReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Compression21.3:1Reference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed synchro shuttleReference

Typesynchro shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

PTO & Hydraulics

PTO (claimed)19.8 kWReference

Typeopen centerReference

Mid valves2Reference

Pump flow33.7 lpmReference

Steering flow18.2 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift1499 kgReference

Rear Armstelescopic lower armsReference

Rear PTOindependentReference

Rear PTO Type540/790 (1.375)Reference

Dimensions

Wheelbase180 cmReference

Weight1838 kgReference

Front tire9.5x16Reference

Rear tire12.4x28Reference

Weight396 kgReference

Weight419 kgReference

Ag front9.5x16Reference

Ag rear12.4x28Reference

Lawn/turf front25x10.50LLReference

Lawn/turf rearLSW610R470Reference

Industrial front10-16.5Reference

Industrial rear420/70-24Reference

Length330 cmReference

Width162 cmReference

Height248 cmReference

Ground clearance32 cmReference

Front tread128 cmReference

Rear tread110 to 152 cmReference

Branson 3120R attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Branson BL25S loaderReference

Branson 2500X loaderReference

BackhoeReference

Branson BH76C Backhoe

Backhoe typeBranson BH76C BackhoeReference

Digging depth228 cmReference

Reach from pivot312 cmReference

Loading height226 cmReference

Bucket Rotation149°Reference

Swing Arc180°Reference

Branson BH7620 Backhoe

Backhoe typeBranson BH7620 BackhoeReference

Digging depth243 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot289 cmReference

Loading height177 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1288 kgReference

Dipperstick force909 kgReference

Branson 7540X Backhoe

Backhoe typeBranson 7540X BackhoeReference

Digging depth233 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot314 cmReference

Loading height198 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1288 kgReference

Dipperstick force900 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
