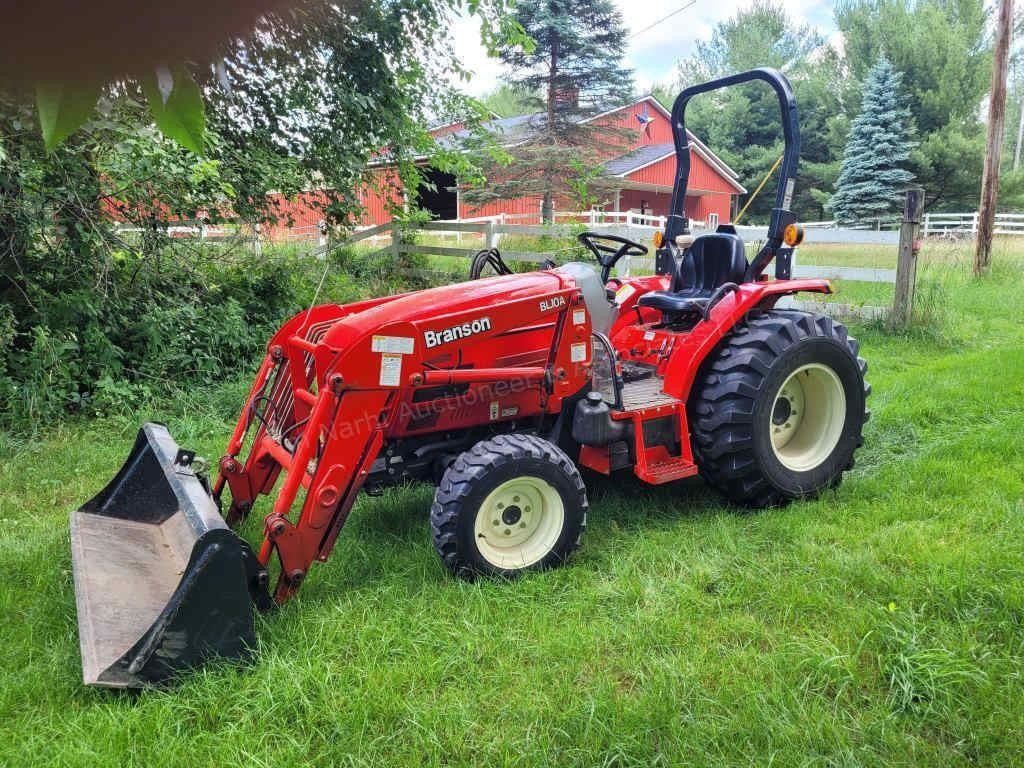

The Branson 3510h is a compact tractor with a rated output of 35 hp, making it suitable for smaller-scale operations. It was manufactured in 2005 and features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The listed weight of the tractor is 1577 kg, and it is designed for tasks on areas of approximately up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1577 kg
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Recorded power
35 hp
Recorded weight
1577 kg
Transmissions
hydrostatic
Production years
2005-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Canopy optional.Reference
Variants
3510ishuttleReference
3510hhydrostaticReference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank37.1 LReference
Engine (gross)26.1 kWReference
Kukje A1700Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
Power (gross)26.1 kWReference
Air cleanerdry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Total flow43.9 lpmReference
Rear TypeIReference
Rear lift (at ends)1250 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase165 cmReference
Weight1577 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Ag front7-16Reference
Ag rear12.4-24Reference
Length309 cmReference
Width140 cmReference
Height (ROPS)237 cmReference
Ground clearance27 cmReference
Front tread111 cmReference
Rear tread106 to 144 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
