Tractor · 2005Unverified

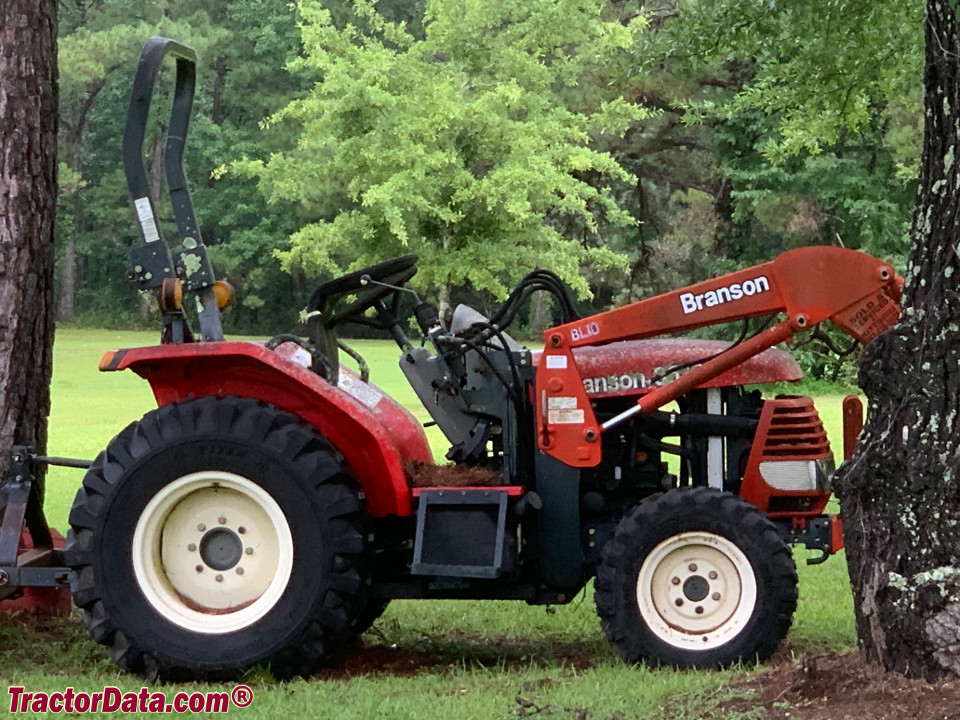

Branson 3510i
Branson 3510i — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1703 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Canopy optional.Reference
Variants
3510ishuttleReference
3510hhydrostaticReference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank41.6 LReference
Engine (gross)26.1 kWReference
Kukje A1700Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
Power (gross)26.1 kWReference
Air cleanerdry elementReference
Pre-heatingblock heaterReference
Compression21.3:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves0 to 2Reference
Total flow31.8 lpmReference
Rear TypeIReference
Rear lift (at ends)970 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase165 cmReference
Weight1703 kgReference
Length302 cmReference
Width139 cmReference
Height (ROPS)241 cmReference
Ground clearance27 cmReference
Front tread113 cmReference
Rear tread107 to 145 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
