Tractor · 2021Unverified

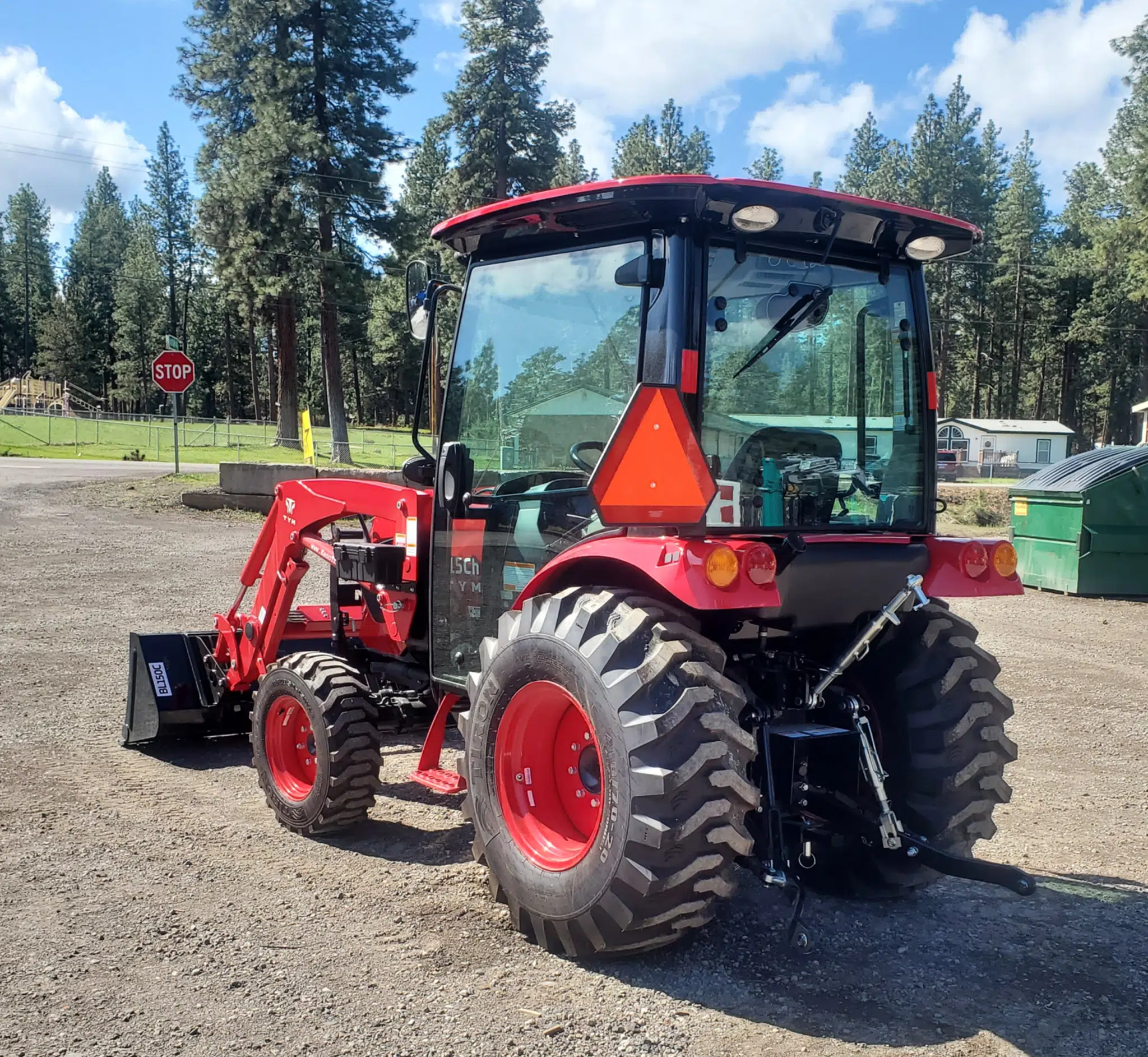

Branson 3515CH
Branson 3515CH — 15 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1661 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of TYM)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Variants
3515RshuttleReference
3515HhydrostaticReference
3515CcabReference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine26.1 kWReference
Kukje A2300NAReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier 4Reference
Power26.1 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)22.4 kWReference
Pump flow42.0 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear lift1499 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM560@2600Reference
Dimensions
Wheelbase166 cmReference
Weight1661 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Industrial front28-8.50Reference
Industrial rear43x16-20Reference
Length330 cmReference
Width141 cmReference
Height (cab)226 cmReference
Ground clearance33 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
