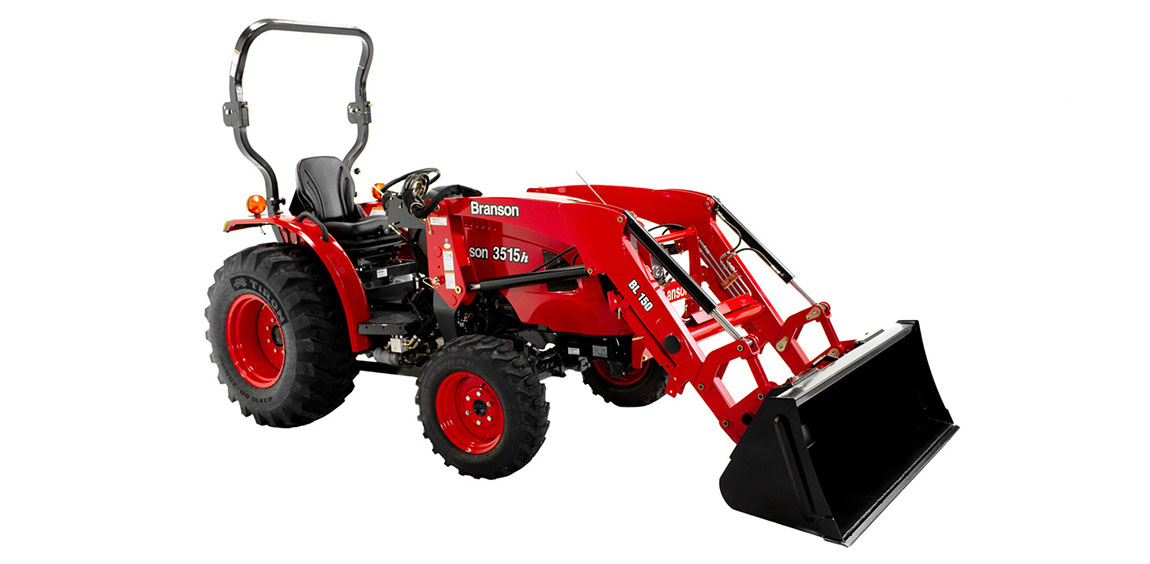

The Branson 3515H is a compact tractor with a rated output of 35 hp, making it suitable for a range of applications. Produced from 2016 to 2023, this model features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with hydrostatic transmission. The listed weight of the Branson 3515H is 1367 kg, and it is designed for use on areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1367 kg
Catalogue coverage
Variants represented
2
Richest spec table
54 rows
Recorded power
35 hp
Recorded weight
1367 kg
Transmissions
hydrostatic
Production years
2016-2023
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS.Reference
Variants
3515RshuttleReference
3515HhydrostaticReference
3515CcabReference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank26.5 LReference
Engine26.1 kWReference
Kukje A1700N4Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier 4Reference
Power26.1 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Pump flow32.9 lpmReference
Steering flow17.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1097 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase167 cmReference
Weight1367 kgReference
Front tire7x16Reference
Rear tire12.4x24Reference
Ag front7x16Reference
Ag rear12.4x24Reference
Industrial front28x8.50-15Reference
Industrial rear43x16-20Reference
Length299 cmReference
Width144 cmReference
Height (ROPS)238 cmReference
Height (Folded ROPS)152 cmReference
Ground clearance30 cmReference
Branson 3515H attachments
front-end loaderReference
3515H Serial Number Location
Serial number plate on the front right side of the main tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
