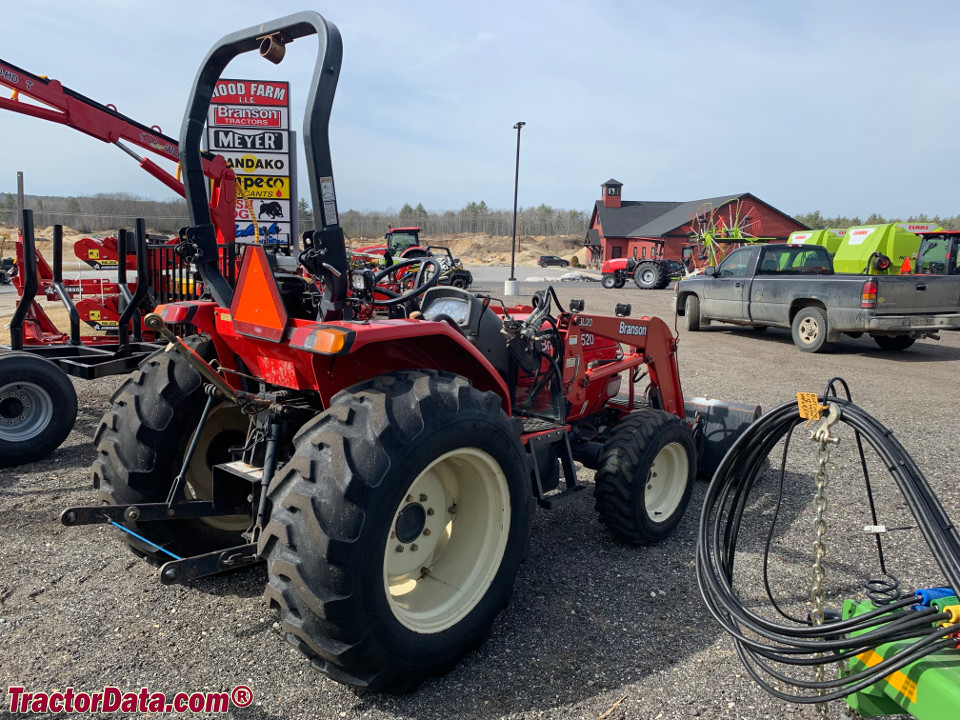

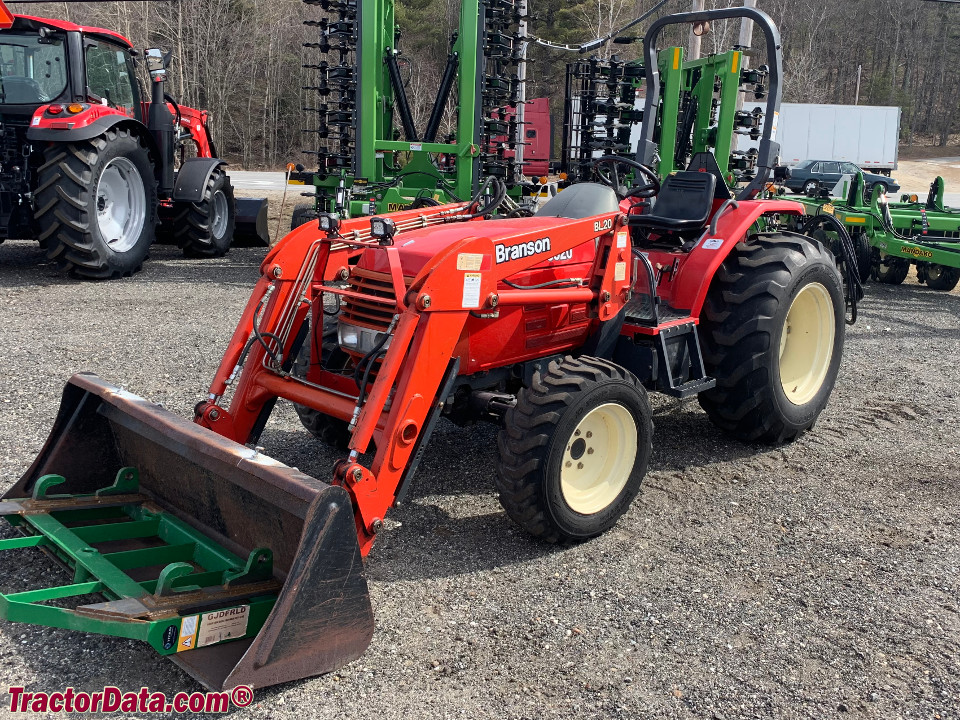

The Branson 3520 is a tractor with a rated power output of 35 hp, positioning it at the lighter end of its class. Manufactured from 2002 to 2004, this model features a 3-cylinder diesel liquid-cooled engine. It is equipped with four-wheel drive and a 12-speed gearbox, with a listed operating weight of 1643 kg. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1643 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
35 hp
Recorded weight
1643 kg
Transmissions
12-speed synchronized shuttle
Production years
2002-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBransonReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
ROPS.Reference
Engine
Kukje 1.8L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)26.1 kWReference
Kukje 3T90L-ATCReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke90 x 94 mmReference
Power (gross)26.1 kWReference
Air cleanerdry elementReference
Compression21:1Reference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
12-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase174 cmReference
Weight1643 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Ag front8-18Reference
Ag rear12.4-28Reference
Length329 cmReference
Width152 cmReference
Height (ROPS)219 cmReference
Ground clearance30 cmReference
Front tread123 cmReference
Rear tread210 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
