Tractor · 2014Unverified

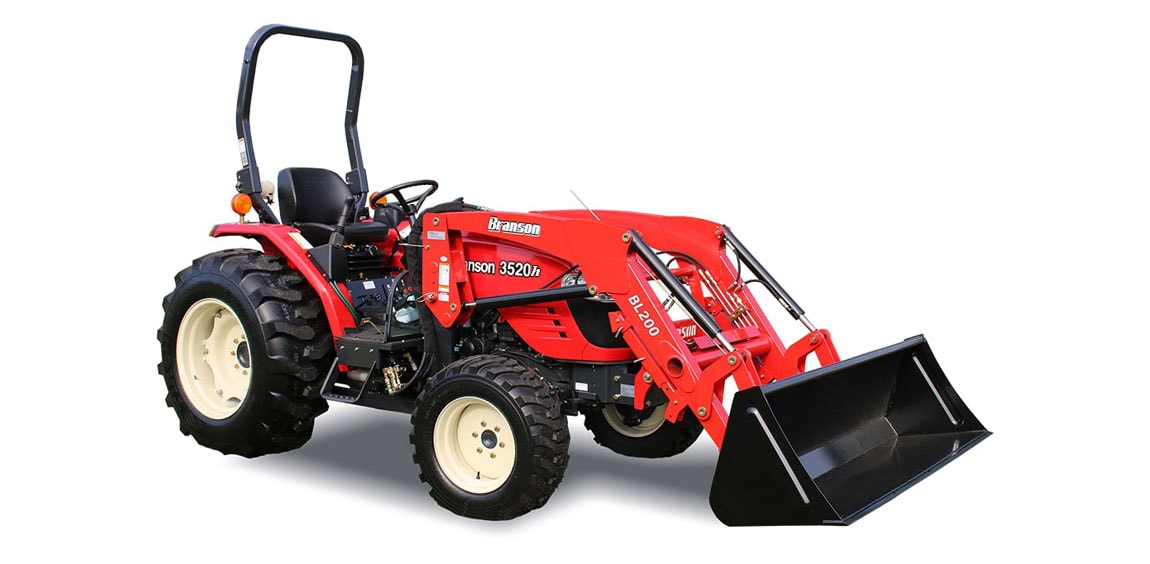

Branson 3520H
Branson 3520H — Compact Utility tractor · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1838 kg
Hover a source tag to verify
Overview
ManufacturerBransonReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank35.2 LReference
Engine26.1 kWReference
Kukje A1700N2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
Power26.1 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)21.6 kWReference
Pump flow33.7 lpmReference
Steering flow18.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1499 kgReference
Rear Armstelescopic lower links and stabilizersReference
Rear PTOindependentReference
Rear PTO Type540/790Reference
Dimensions
Wheelbase180 cmReference
Weight1838 kgReference
Front tire7.5x16Reference
Rear tire12.4x28Reference
Weight607 kgReference
Weight680 kgReference
Weight557 kgReference
Ag front7.5x16Reference
Ag rear12.4x28Reference
Industrial front10x16.5Reference
Industrial rear420/70x24Reference
Length330 cmReference
Width162 cmReference
Height (ROPS)248 cmReference
Ground clearance32 cmReference
Branson 3520H attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Branson BH760 Backhoe
Backhoe typeBranson BH760 BackhoeReference
Transport height216 cmReference
Digging depth231 cmReference
Reach from pivot313 cmReference
Loading height228 cmReference
Bucket Rotation149°Reference
Swing Arc180°Reference
Bucket force2065 kgReference
Dipperstick force1147 kgReference
Branson BH860 Backhoe
Backhoe typeBranson BH860 BackhoeReference
Transport height231 cmReference
Digging depth262 cmReference
Reach from pivot341 cmReference
Loading height234 cmReference
Bucket Rotation151°Reference
Swing Arc180°Reference
Bucket force2011 kgReference
Dipperstick force1221 kgReference
Branson K710 Backhoe
Backhoe typeBranson K710 BackhoeReference
Transport height216 cmReference
Digging depth238 cmReference
Reach from pivot322 cmReference
Loading height129 cmReference
Bucket Rotation175°Reference
Swing Arc180°Reference
Bucket force1446 kgReference
Dipperstick force898 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
