Tractor · 2011Unverified
Branson 3520R
Branson 3520R — 20R Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1838 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank35.2 LReference
Engine26.1 kWReference
Kukje A1700N2-RReference
dieselReference
3-cylinder 6-valveReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
Power26.1 kWReference
Fuel use7.9 l/hourReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression21.3:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed syncro shuttleReference
Typesyncro shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)21.6 kWReference
Typeopen centerReference
Mid valves2Reference
Pump flow33.7 lpmReference
Steering flow18.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1499 kgReference
Rear Armstelescopic lower armsReference
Rear PTOindependentReference
Rear PTO Type540/790 (1.375)Reference
Dimensions
Wheelbase180 cmReference
Weight1838 kgReference
Front tire9.5x16Reference
Rear tire12.4x28Reference
Weight396 kgReference
Weight419 kgReference
Ag front9.5x16Reference
Ag rear12.4x28Reference
Lawn/turf front25x10.50LLReference
Lawn/turf rearLSW610R470Reference
Industrial front10-16.5Reference
Industrial rear420/70-24Reference
Length330 cmReference
Width162 cmReference
Height248 cmReference
Ground clearance32 cmReference
Front tread128 cmReference
Rear tread110 to 152 cmReference
Branson 3520R attachments
front-end loaderReference
backhoeReference
3520R Serial Number Location
Serial number plate on the front-right of the Branson 3520R tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview

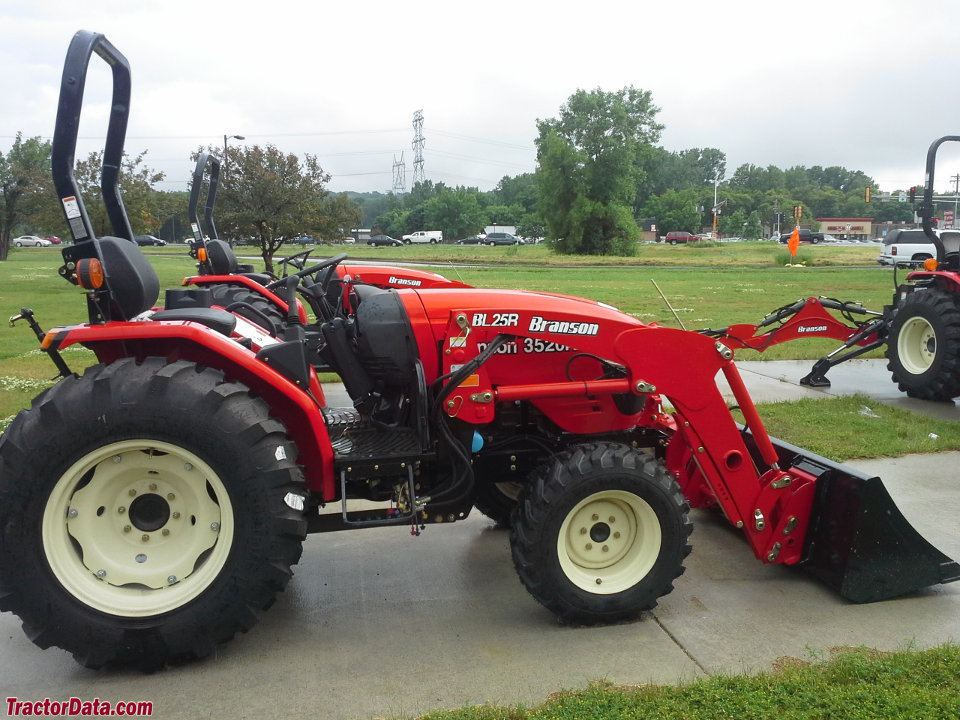

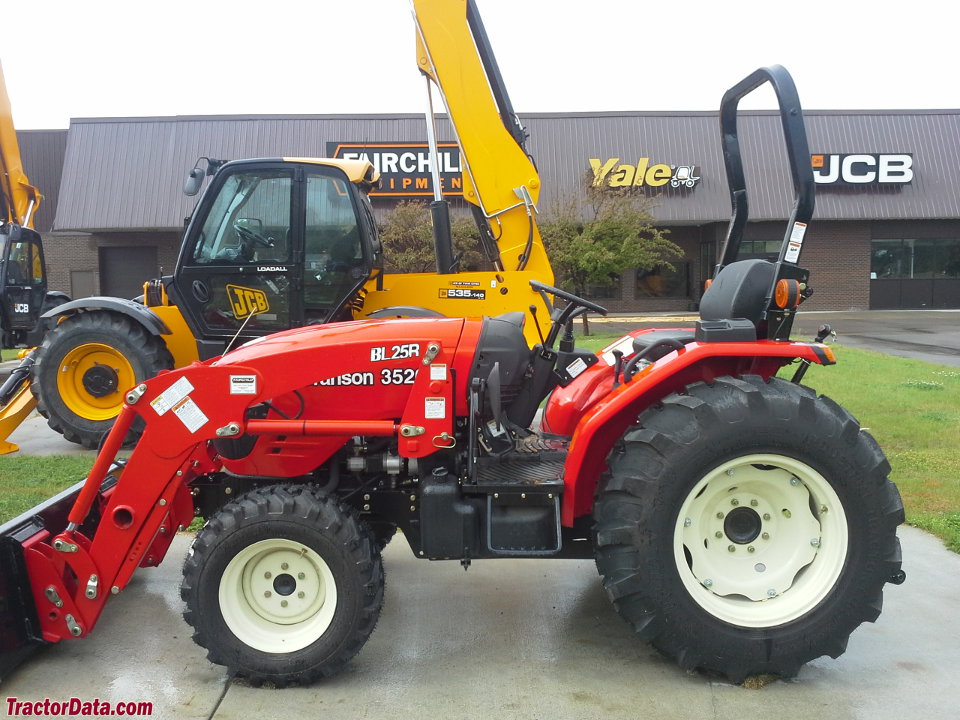

Branson BL25S loaderReference
Branson 2500X loaderReference
BackhoeReference
Branson BH76C Backhoe
Backhoe typeBranson BH76C BackhoeReference
Digging depth228 cmReference
Reach from pivot312 cmReference
Loading height226 cmReference
Bucket Rotation149°Reference
Swing Arc180°Reference
Branson BH7620 Backhoe
Backhoe typeBranson BH7620 BackhoeReference
Digging depth243 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1288 kgReference
Dipperstick force909 kgReference
Branson 7540X Backhoe
Backhoe typeBranson 7540X BackhoeReference
Digging depth233 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot314 cmReference
Loading height198 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1288 kgReference
Dipperstick force900 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
