Tractor · 2021Unverified

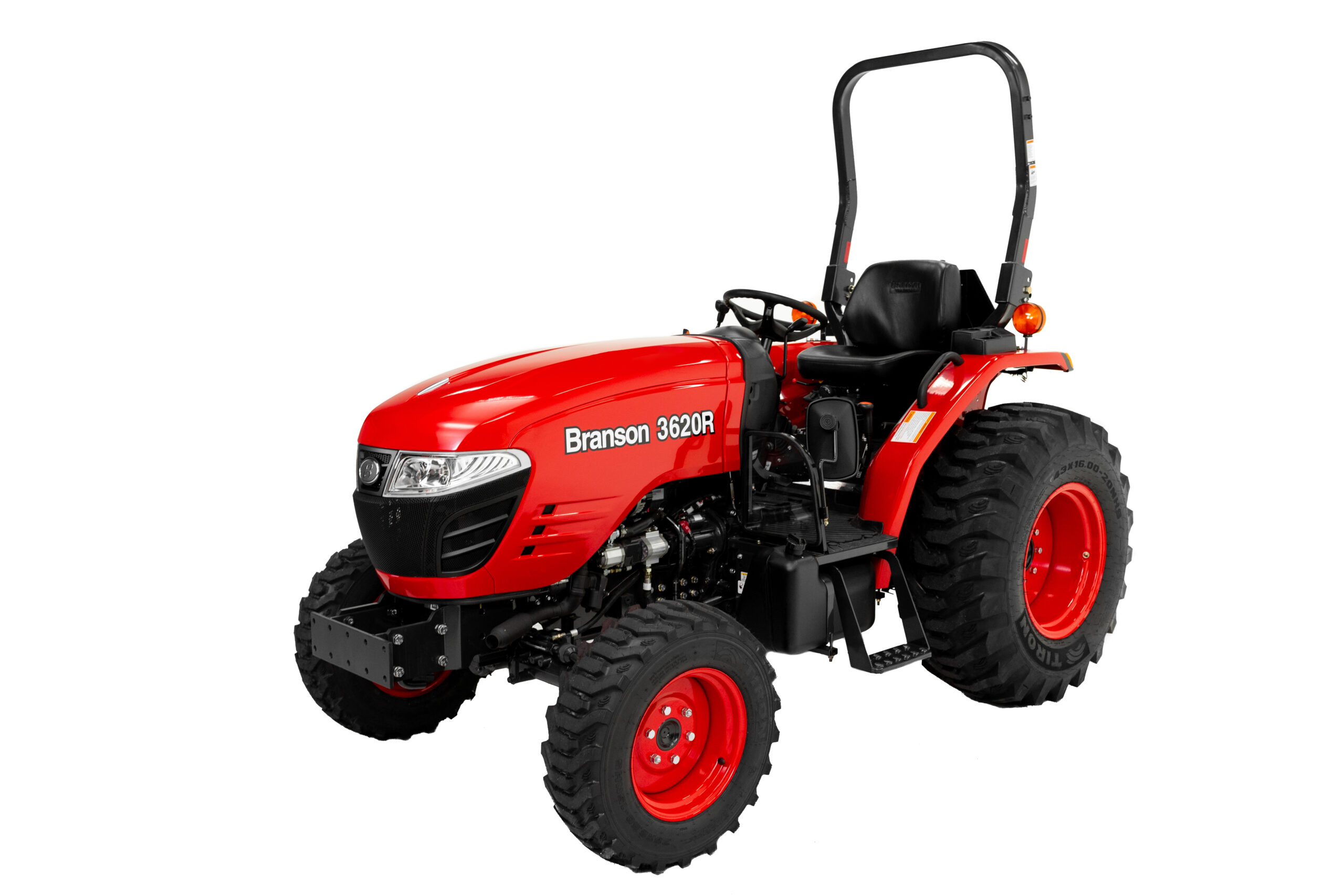

Branson 3620R

Name: Branson 3620R
Brand: Branson

Branson 3620R — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.

The Branson 3620R is a tractor with a rated power of 30 hp, situated at the lighter end of its class. It was manufactured from 2021 to 2023. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and features four-wheel drive, coupled with a hydrostatic transmission. Its listed operating weight is 1684 kg, allowing it to operate on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

1684 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

30 hp

Recorded weight

1684 kg

Transmissions

16-speed synchronized shuttle

Production years

2021-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBranson (a part of TYM)Reference

Compact Utility tractorReference

Four-wheel driveReference

Two-post folding ROPS.Reference

Variants

3620RshuttleReference

3620HhydrostaticReference

Engine

Kukje 1.7L 3-cyl dieselReference

Fuel tank44.7 LReference

Engine26.1 kWReference

KukjeReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.7 LReference

Bore/Stroke88 x 94 mmReference

EmissionsTier IVReference

Power26.1 kWReference

Air cleanerdual dryReference

Rated RPM2600Reference

Transmission

16-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears16 forward and reverseReference

PTO & Hydraulics

PTO (claimed)22.1 kWReference

Pump flow51.9 lpmReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM584@2600Reference

Dimensions

Wheelbase180 cmReference

Weight1684 kgReference

Front tire9.5-16Reference

Rear tire12.4-28Reference

Standard tires (ag)Front: 9.5-16. Rear: 12.4-28Reference

Lawn/turf front29x12.5-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front10-16.5Reference

Industrial rear420/70-24Reference

Length323 cmReference

Width164 cmReference

Height (ROPS)249 cmReference

Ground clearance39 cmReference

Branson 3620R attachments

front-end loaderReference

backhoeReference

Attachment overview

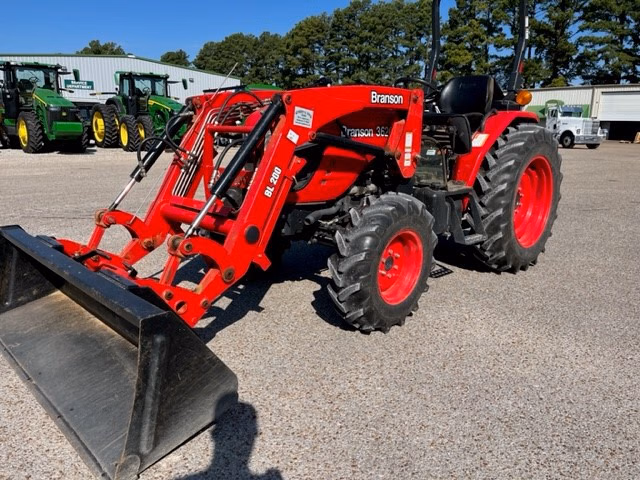

Front-end loaderReference

BackhoeReference

Branson BH250 Backhoe

Backhoe typeBranson BH250 BackhoeReference

Transport height231 cmReference

2-Foot flat digging depth262 cmReference

Reach from pivot341 cmReference

Loading height234 cmReference

Bucket Rotation151°Reference

Swing Arc180°Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
