Tractor · 2017Unverified

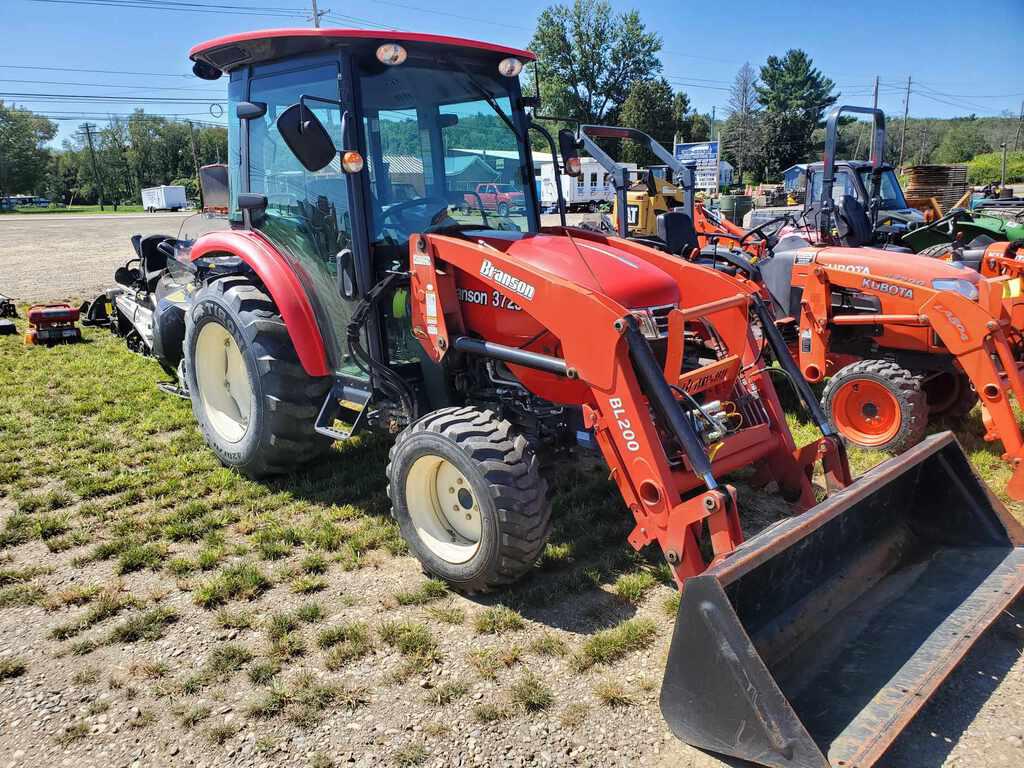

Branson 3725CH

Name: Branson 3725CH
Brand: Branson

Branson 3725CH — Compact Utility tractor · 37 hp. Reference specifications; pending source verification.

The Branson 3725CH is a compact tractor model rated at 37 hp, making it suitable for smaller-scale operations. Manufactured from 2017 to 2021, it features a 4-cylinder diesel liquid-cooled engine, providing four-wheel drive through a hydrostatic transmission. The listed weight of the tractor is 1902 kg, and it is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

37 hp

Weight

1902 kg

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

37 hp

Recorded weight

1902 kg

Transmissions

hydrostatic

Production years

2017-2021

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBranson (a part of Kukje)Reference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Cab with air-conditioning.Reference

Variants

3725RROPS shuttleReference

3725HROPS hydrostaticReference

3725CCab shuttleReference

3725CHCab hydrostaticReference

Engine

Kukje 2.1L 4-cyl dieselReference

Engine (net)27.6 kWReference

Kukje A2000N3-UTR4Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.1 LReference

Bore/Stroke84 x 94 mmReference

EmissionsTier IVReference

Power (net)27.6 kWReference

Air cleanerdual dry elementReference

Compression22:1Reference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity6.6 LReference

Coolant capacity6.1 LReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity37.9 LReference

PTO & Hydraulics

PTO (claimed)23.9 kWReference

Hydraulic system37.9 LReference

Typeopen centerReference

Capacity37.9 LReference

Pressure144.8 barReference

Pump flow39.4 lpmReference

Total flow58.3 lpmReference

Steering flow18.9 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1499 kgReference

Rear lift (at 24"/610mm)1097 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540E (1.375)Reference

Engine RPM540@2500Reference

Engine RPM540E@2000Reference

Capacities

Fuel45.4 LReference

Dimensions

Wheelbase180 cmReference

Weight1902 kgReference

Front tire9.5x16Reference

Rear tire12.4x28Reference

Weight607 kgReference

Weight680 kgReference

Weight557 kgReference

Standard tires (ag)Front: 9.5x16. Rear: 12.4x28Reference

Industrial front10x16.5-6Reference

Industrial rear420/70x24-6Reference

Length327 cmReference

Width152 cmReference

Height (cab)245 cmReference

Shipping weight1902 kgReference

Ground clearance33 cmReference

Branson 3725CH attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Branson BH76 Backhoe

Backhoe typeBranson BH76 BackhoeReference

Transport height216 cmReference

Bucket width40 cmReference

Digging depth231 cmReference

Reach from pivot313 cmReference

Loading height228 cmReference

Bucket Rotation149°Reference

Swing Arc180°Reference

Bucket force2065 kgReference

Dipperstick force1147 kgReference

Branson BH86 Backhoe

Backhoe typeBranson BH86 BackhoeReference

Transport height231 cmReference

Bucket width40 cmReference

Digging depth262 cmReference

Reach from pivot341 cmReference

Loading height234 cmReference

Bucket Rotation151°Reference

Swing Arc180°Reference

Bucket force2011 kgReference

Dipperstick force1221 kgReference

Branson K710 Backhoe

Backhoe typeBranson K710 BackhoeReference

Transport height302 cmReference

Bucket width40 cmReference

Digging depth238 cmReference

Reach from pivot322 cmReference

Loading height129 cmReference

Bucket Rotation175°Reference

Swing Arc180°Reference

Bucket force1446 kgReference

Dipperstick force898 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
