Tractor · 2005Unverified

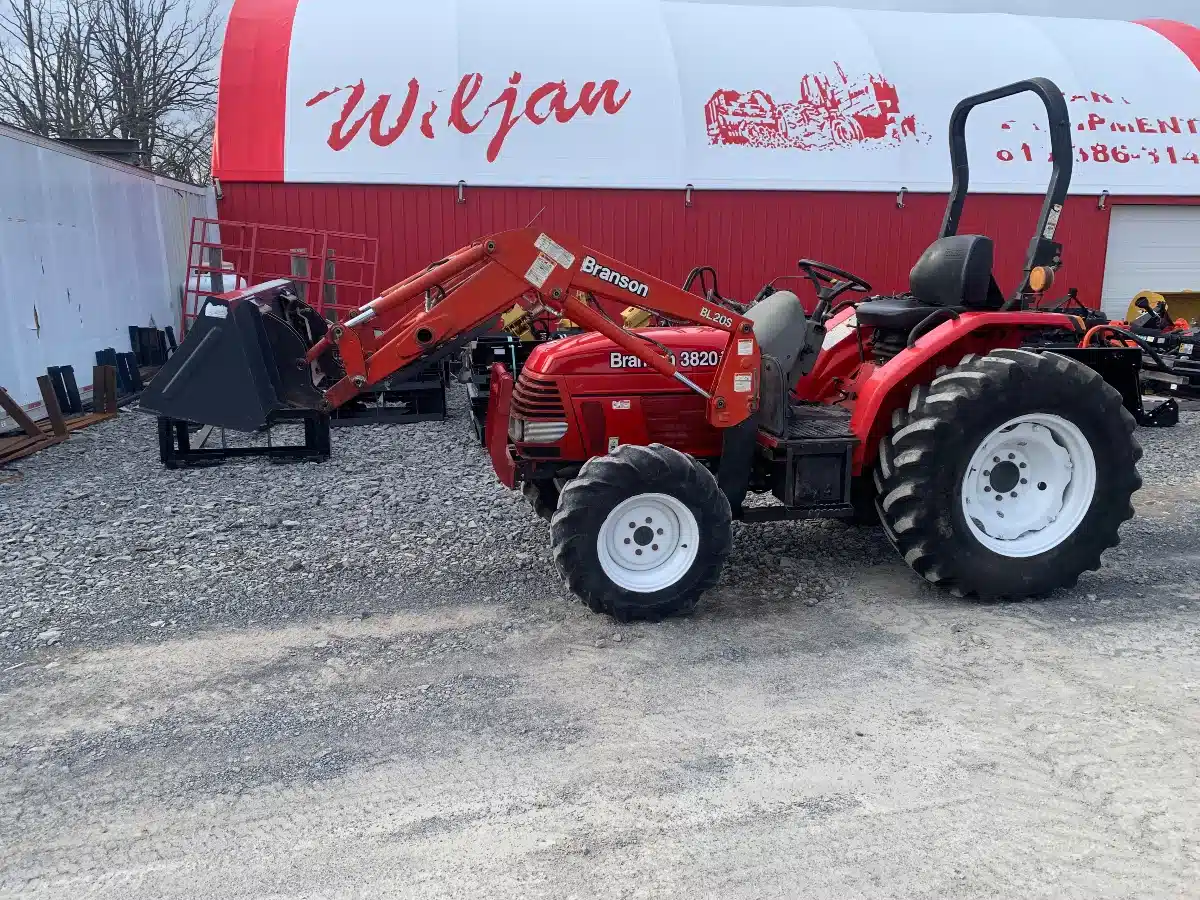

Branson 3820i
Branson 3820i · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1853 kg
Hover a source tag to verify
Overview
ManufacturerBransonReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS. Canopy optional. Soft cab optional.Reference
Engine
2.1L 4-cyl dieselReference
Fuel tank41.6 LReference
Engine (gross)28.3 kWReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Power (gross)28.3 kWReference
Air cleanerdry dual elementReference
Pre-heatingblock heater (optional)Reference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
12-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves0 to 2Reference
Total flow31.8 lpmReference
Rear TypeIReference
Rear lift (at ends)1170 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase175 cmReference
Weight1853 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Ag front8-18Reference
Ag rear12.4-28Reference
Length314 cmReference
Width142 cmReference
Height (ROPS)246 cmReference
Ground clearance30 cmReference
Front tread128 cmReference
Rear tread110 to 150 cmReference
Branson 3820i attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
