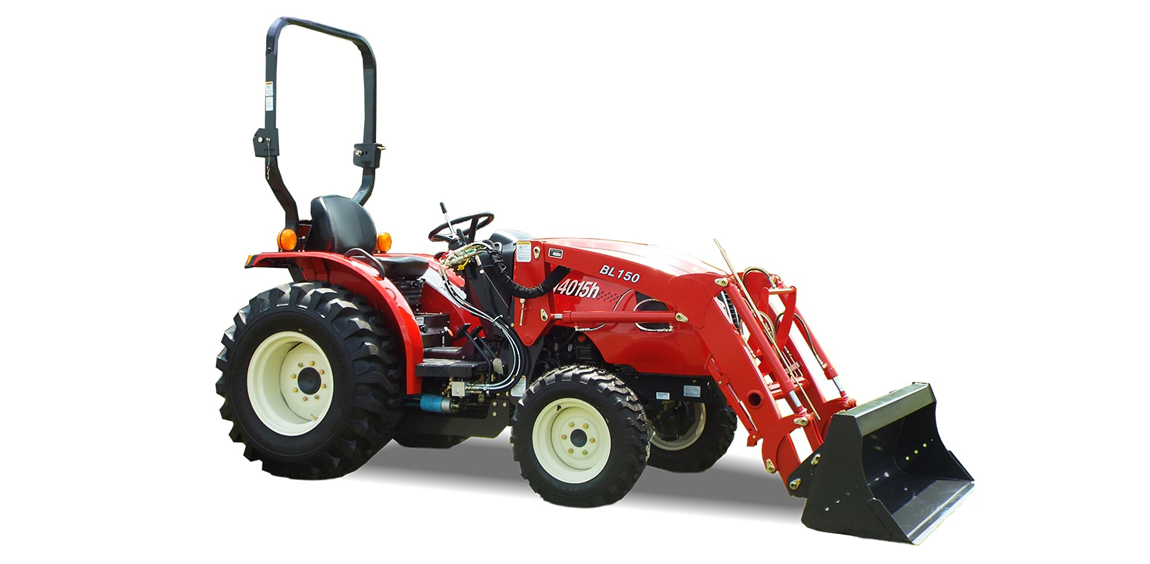

The Branson 4015H is a tractor model with a rated power of 40 hp, which positions it among the lighter models in its class. It was manufactured from 2016 to 2023. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine paired with a four-wheel drive system and a hydrostatic transmission. Its operating weight is listed at 1367 kg, suitable for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1367 kg
Catalogue coverage
Variants represented
2
Richest spec table
55 rows
Recorded power
40 hp
Recorded weight
1367 kg
Transmissions
hydrostatic
Production years
2016-2023
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS.Reference
Variants
4015Rshuttle ROPSReference
4015Cshuttle ROPSReference
4015Hhydrostatic ROPSReference
4015CHhydrostatic cabReference
Engine
Kukje 1.7L 3-cyl dieselReference
Fuel tank26.5 LReference
Engine29.8 kWReference
Kukje A1700T2Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier 4Reference
Power29.8 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Pump flow32.9 lpmReference
Steering flow17.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1097 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase167 cmReference
Weight1367 kgReference
Front tire7x16Reference
Rear tire12.4x24Reference
Ag front7x16Reference
Ag rear12.4x24Reference
Industrial front28x8.50-15Reference
Industrial rear43x16-20Reference
Length299 cmReference
Width144 cmReference
Height (ROPS)238 cmReference
Height (Folded ROPS)152 cmReference
Ground clearance30 cmReference
Branson 4015H attachments
front-end loaderReference
4015H Serial Number Location
Serial number plate on the front right side of the main tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
