Tractor · 2002Unverified

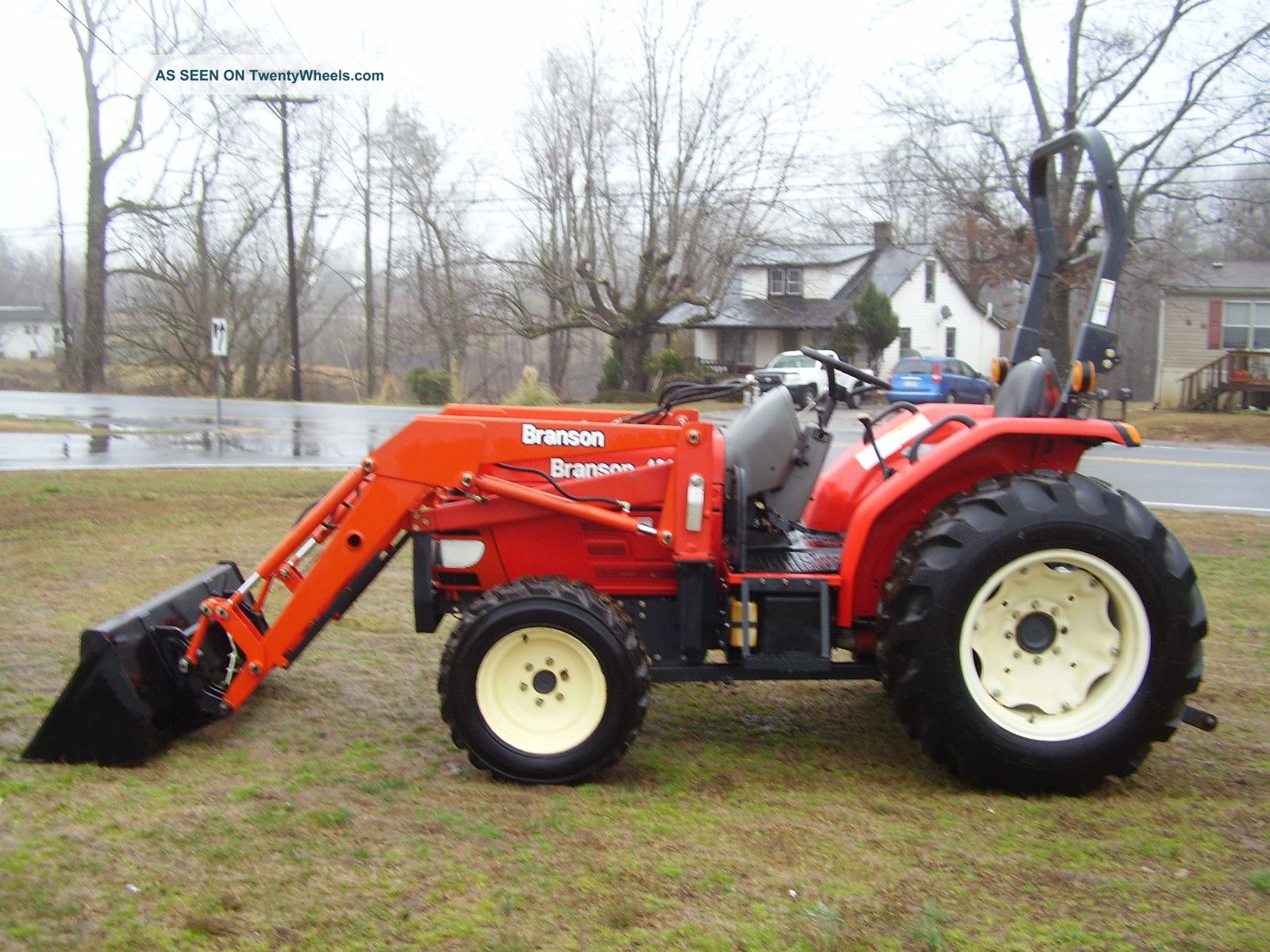

Branson 4020

Name: Branson 4020
Brand: Branson

Branson 4020 · 40 hp. Reference specifications; pending source verification.

The Branson 4020 is a compact tractor, featuring a rated output of 40 hp, and was manufactured between 2002 and 2004. It is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The tractor's listed weight is 1643 kg and is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

1643 kg

Catalogue coverage

Variants represented

Richest spec table

38 rows

Recorded power

40 hp

Recorded weight

1643 kg

Transmissions

12-speed synchronized shuttle

Production years

2002-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBransonReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

ROPS.Reference

Engine

Kukje 1.8L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine (gross)29.8 kWReference

Kukje 3T90L-ATCReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke90 x 94 mmReference

Power (gross)29.8 kWReference

Air cleanerdry elementReference

Compression21:1Reference

Rated RPM2600Reference

Starter typeelectricReference

Transmission

12-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

PTO (claimed)26.8 kWReference

Rear TypeIReference

Rear PTOtransmissionReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase174 cmReference

Weight1643 kgReference

Front tire8-18Reference

Rear tire12.4-28Reference

Ag front8-18Reference

Ag rear12.4-28Reference

Length329 cmReference

Width152 cmReference

Height (ROPS)219 cmReference

Ground clearance30 cmReference

Front tread123 cmReference

Rear tread210 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
