Tractor · 2011Unverified

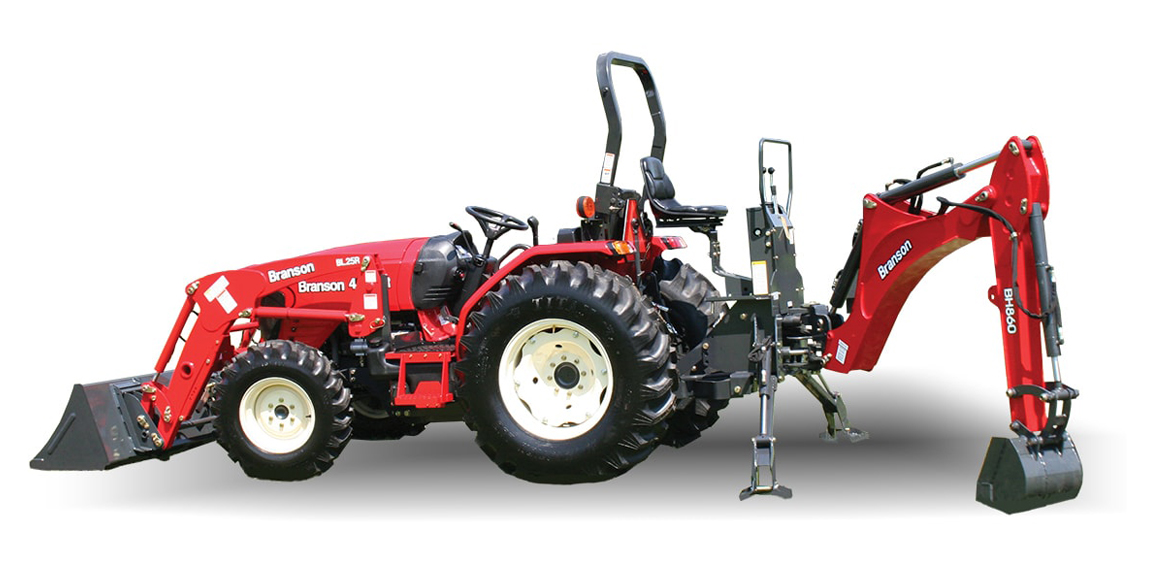

Branson 4020R

Name: Branson 4020R
Brand: Branson

Branson 4020R — 20R Series · 36 hp. Reference specifications; pending source verification.

The Branson 4020R is a tractor model with a rated power output of 36 hp, categorising it at the lighter end of its class. Produced from 2011 to 2021, this model features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The listed operating weight of the Branson 4020R is 1842 kg, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

36 hp

Weight

1842 kg

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

36 hp

Recorded weight

1842 kg

Transmissions

12-speed syncro shuttle

Production years

2011-2021

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBranson (a part of TYM)Reference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Kukje 1.7L 3-cyl dieselReference

Fuel tank35.2 LReference

Engine29.8 kWReference

Kukje A1700T1Reference

turbocharged dieselReference

3-cylinder 6-valveReference

liquid-cooledReference

Displacement1.7 LReference

Bore/Stroke88 x 94 mmReference

Power29.8 kWReference

Fuel use7.9 l/hourReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Compression21.3:1Reference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed syncro shuttleReference

Typesyncro shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

PTO & Hydraulics

PTO (claimed)26.5 kWReference

Typeopen centerReference

Mid valves2Reference

Pump flow33.7 lpmReference

Steering flow18.2 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift1499 kgReference

Rear Armstelescopic lower armsReference

Rear PTOindependentReference

Rear PTO Type540/790 (1.375)Reference

Dimensions

Wheelbase180 cmReference

Weight1842 kgReference

Front tire9.5x16Reference

Rear tire12.4x28Reference

Weight396 kgReference

Weight419 kgReference

Ag front9.5x16Reference

Ag rear12.4x28Reference

Lawn/turf front25x10.50LLReference

Lawn/turf rearLSW610R470Reference

Industrial front10-16.5Reference

Industrial rear420/70-24Reference

Length330 cmReference

Width162 cmReference

Height248 cmReference

Ground clearance32 cmReference

Front tread128 cmReference

Rear tread110 to 152 cmReference

Branson 4020R attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Branson BL25S loaderReference

Branson 2500X loaderReference

BackhoeReference

Branson BH76C Backhoe

Backhoe typeBranson BH76C BackhoeReference

Digging depth228 cmReference

Reach from pivot312 cmReference

Loading height226 cmReference

Bucket Rotation149°Reference

Swing Arc180°Reference

Branson BH7620 Backhoe

Backhoe typeBranson BH7620 BackhoeReference

Digging depth243 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot289 cmReference

Loading height177 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1288 kgReference

Dipperstick force909 kgReference

Branson 7540X Backhoe

Backhoe typeBranson 7540X BackhoeReference

Digging depth233 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot314 cmReference

Loading height198 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1288 kgReference

Dipperstick force900 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
