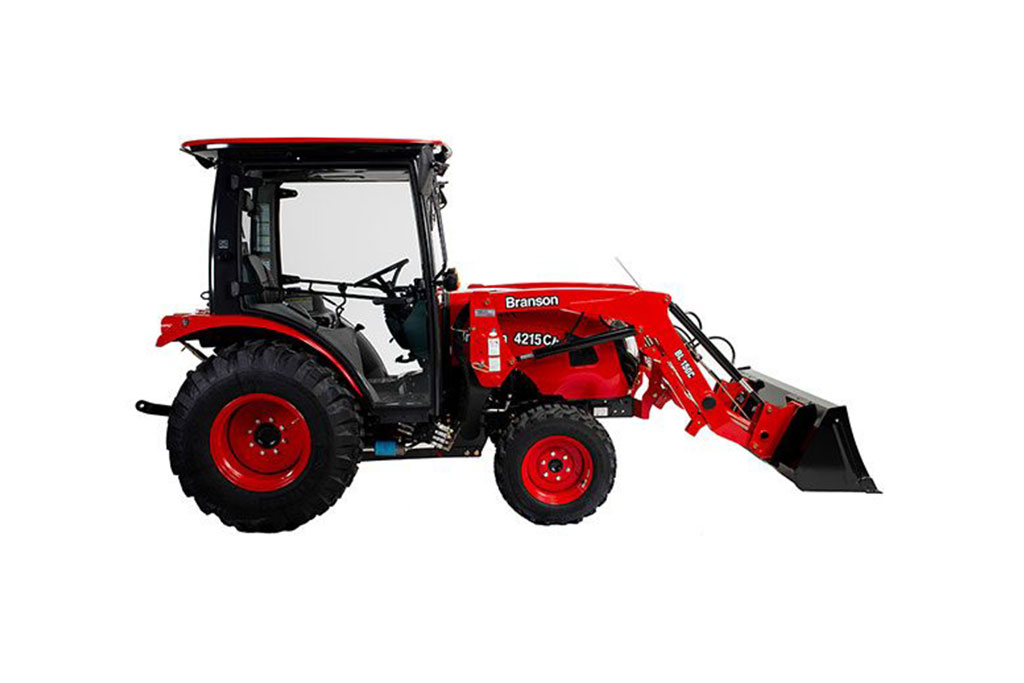

The Branson 4215CH is a compact tractor with a 36 hp rating, making it suitable for smaller-scale operations. Manufactured from 2021 to 2023, this model features a 4-cylinder diesel liquid-cooled engine and a hydrostatic transmission with four-wheel drive. The tractor weighs approximately 1661 kg, and is designed for use on plots of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1661 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
36 hp
Recorded weight
1661 kg
Transmissions
hydrostatic
Production years
2021-2023
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBranson (a part of TYM)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine31.3 kWReference
Kukje A2000N4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier 4Reference
Power31.3 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Pump flow42.0 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear lift1499 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM560@2600Reference
Dimensions
Wheelbase166 cmReference
Weight1661 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Industrial front28-8.50Reference
Industrial rear43x16-20Reference
Length330 cmReference
Width141 cmReference
Height (cab)226 cmReference
Ground clearance33 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
