Tractor · 2004Unverified

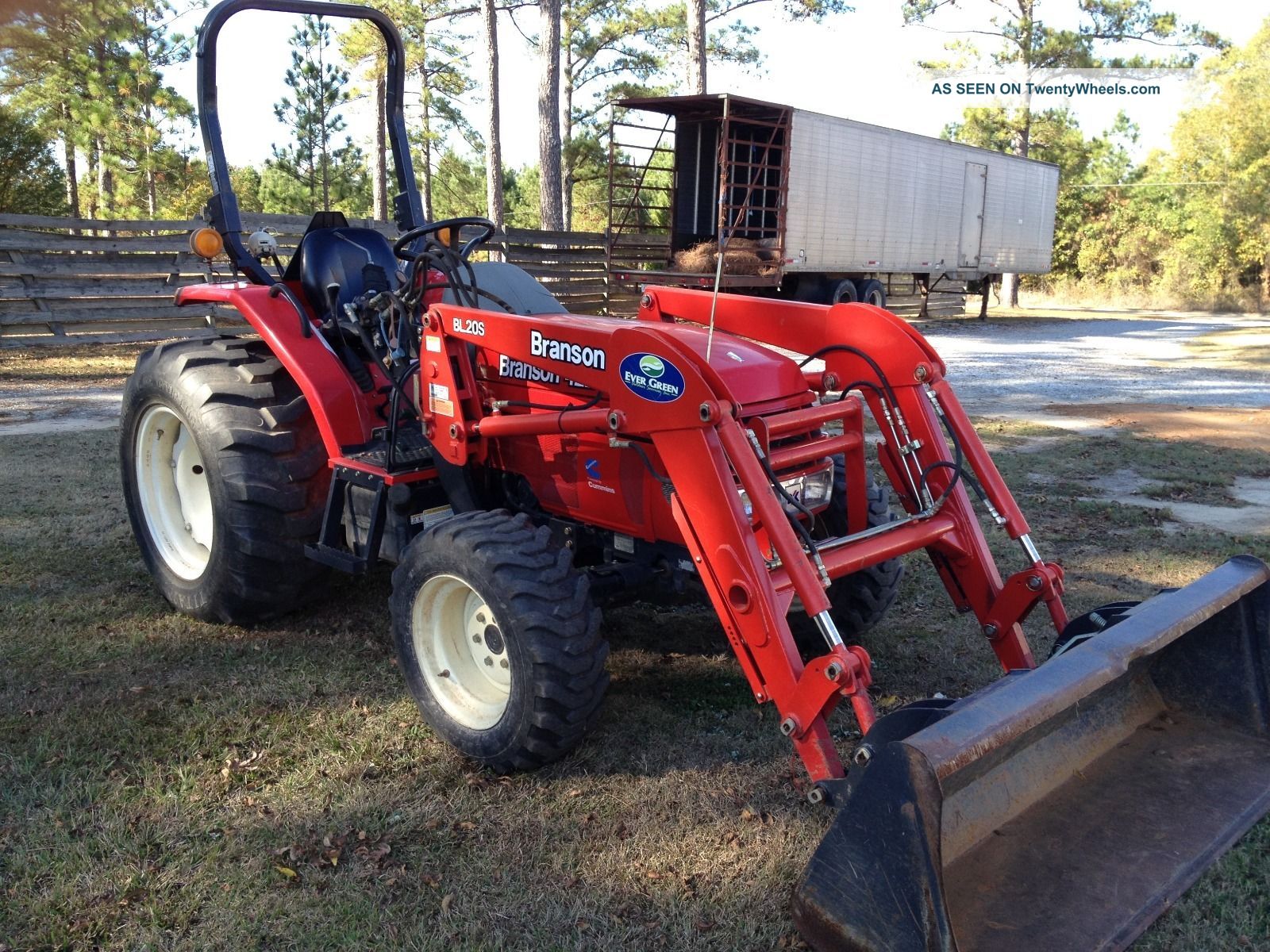

Branson 4220
Branson 4220 — 20 Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1721 kg
Hover a source tag to verify
Overview
ManufacturerBransonReference
Compact Utility tractorReference
Built in Yangsu-ri, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kukje 2.1L 4-cyl dieselReference
Engine31.3 kWReference
Kukje A2000N2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke84 x 94 mmReference
Power31.3 kWReference
Air cleanerdry elementReference
Compression22.2:1Reference
Rated RPM2600Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity6.1 LReference
Coolant capacity9.3 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Hydraulic system36.7 LReference
Typeopen centerReference
Capacity36.7 LReference
Valves0 to 2Reference
Pump flow33.7 lpmReference
Total flow50.0 lpmReference
Rear TypeIReference
Rear lift1170 kgReference
Rear PTOliveReference
Rear PTO Type540/1000Reference
Capacities
Fuel42.0 LReference
Dimensions
Wheelbase175 cmReference
Weight1721 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Ag front8-18Reference
Ag rear12.4-28Reference
Lawn/turf front29x12.00-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length322 cmReference
Width154 cmReference
Height223 cmReference
Ground clearance30 cmReference
Branson 4220 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
