Tractor · 2017Unverified

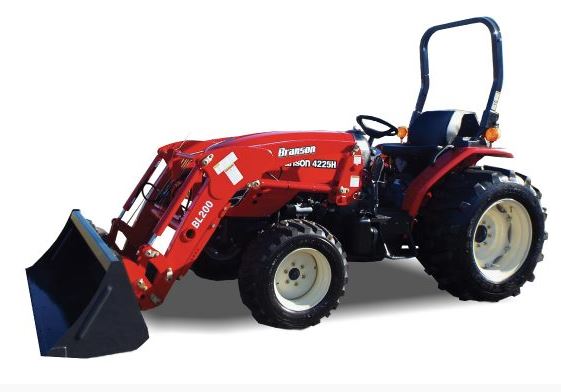

Branson 4225H
Branson 4225H — Compact Utility tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1883 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
4225RROPS shuttleReference
4225HROPS hydrostaticReference
4225CCab shuttleReference
4225CHCab hydrostaticReference
Engine
Kukje 2.1L 4-cyl dieselReference
Engine (net)31.3 kWReference
Kukje A2000N2-UTR4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke84 x 94 mmReference
EmissionsTier IVReference
Power (net)31.3 kWReference
Air cleanerdual dry elementReference
Compression21:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity6.1 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity37.9 LReference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Hydraulic system37.9 LReference
Typeopen centerReference
Capacity37.9 LReference
Pressure144.8 barReference
Pump flow39.4 lpmReference
Total flow58.3 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1097 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E (1.375)Reference
Engine RPM540@2500Reference
Engine RPM540E@2000Reference
Capacities
Fuel45.4 LReference
Dimensions
Wheelbase180 cmReference
Weight1883 kgReference
Front tire9.5x16Reference
Rear tire12.4x28Reference
Weight607 kgReference
Weight680 kgReference
Weight557 kgReference
Standard tires (ag)Front: 9.5x16. Rear: 12.4x28Reference
Industrial front10x16.5-6Reference
Industrial rear420/70x24-6Reference
Length327 cmReference
Width152 cmReference
Height (ROPS)243 cmReference
Shipping weight1883 kgReference
Ground clearance33 cmReference
Branson 4225H attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Branson BH76 Backhoe
Backhoe typeBranson BH76 BackhoeReference
Transport height216 cmReference
Bucket width40 cmReference
Digging depth231 cmReference
Reach from pivot313 cmReference
Loading height228 cmReference
Bucket Rotation149°Reference
Swing Arc180°Reference
Bucket force2065 kgReference
Dipperstick force1147 kgReference
Branson BH86 Backhoe
Backhoe typeBranson BH86 BackhoeReference
Transport height231 cmReference
Bucket width40 cmReference
Digging depth262 cmReference
Reach from pivot341 cmReference
Loading height234 cmReference
Bucket Rotation151°Reference
Swing Arc180°Reference
Bucket force2011 kgReference
Dipperstick force1221 kgReference
Branson K710 Backhoe
Backhoe typeBranson K710 BackhoeReference
Transport height302 cmReference
Bucket width40 cmReference
Digging depth238 cmReference
Reach from pivot322 cmReference
Loading height129 cmReference
Bucket Rotation175°Reference
Swing Arc180°Reference
Bucket force1446 kgReference
Dipperstick force898 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
