Tractor · 2002Unverified

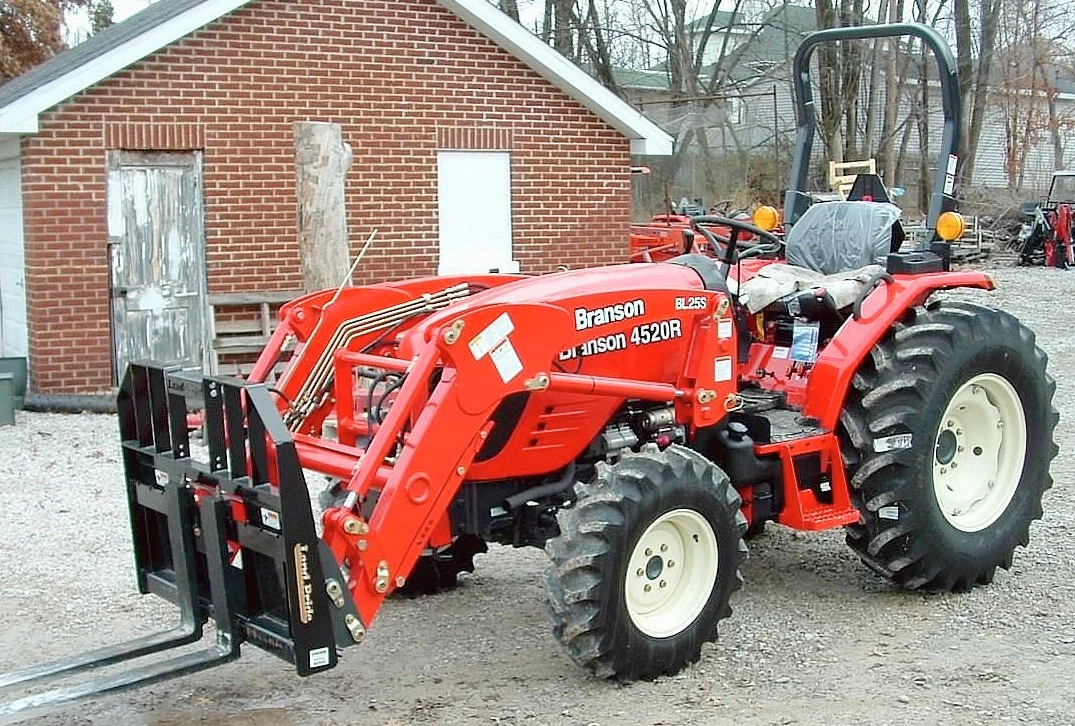

Branson 4520

Name: Branson 4520
Brand: Branson

Branson 4520 · 45 hp. Reference specifications; pending source verification.

The Branson 4520 is a tractor with an engine rating of approximately 45 hp, positioning it at the lower end of its class. It was manufactured in 2002. The model features a 4-cylinder diesel liquid-cooled engine and four-wheel drive, coupled with a hydrostatic transmission. Its operating weight is specified as 1643 kg, and it is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

1643 kg

Catalogue coverage

Variants represented

Richest spec table

38 rows

Recorded power

45 hp

Recorded weight

1643 kg

Transmissions

12-speed synchronized shuttle

Production years

2002-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBransonReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

ROPS.Reference

Engine

Yanmar 2.2L 4-cyl dieselReference

Fuel tank40.1 LReference

Engine (gross)33.6 kWReference

Yanmar 4TNE-88Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke88 x 90 mmReference

Power (gross)33.6 kWReference

Air cleanerdry elementReference

Compression18.5:1Reference

Rated RPM2600Reference

Starter typeelectricReference

Transmission

12-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

PTO (claimed)29.8 kWReference

Rear TypeIReference

Rear PTOtransmissionReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase174 cmReference

Weight1643 kgReference

Front tire8-18Reference

Rear tire12.4-28Reference

Ag front8-18Reference

Ag rear12.4-28Reference

Length329 cmReference

Width152 cmReference

Height (ROPS)219 cmReference

Ground clearance30 cmReference

Front tread123 cmReference

Rear tread210 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
