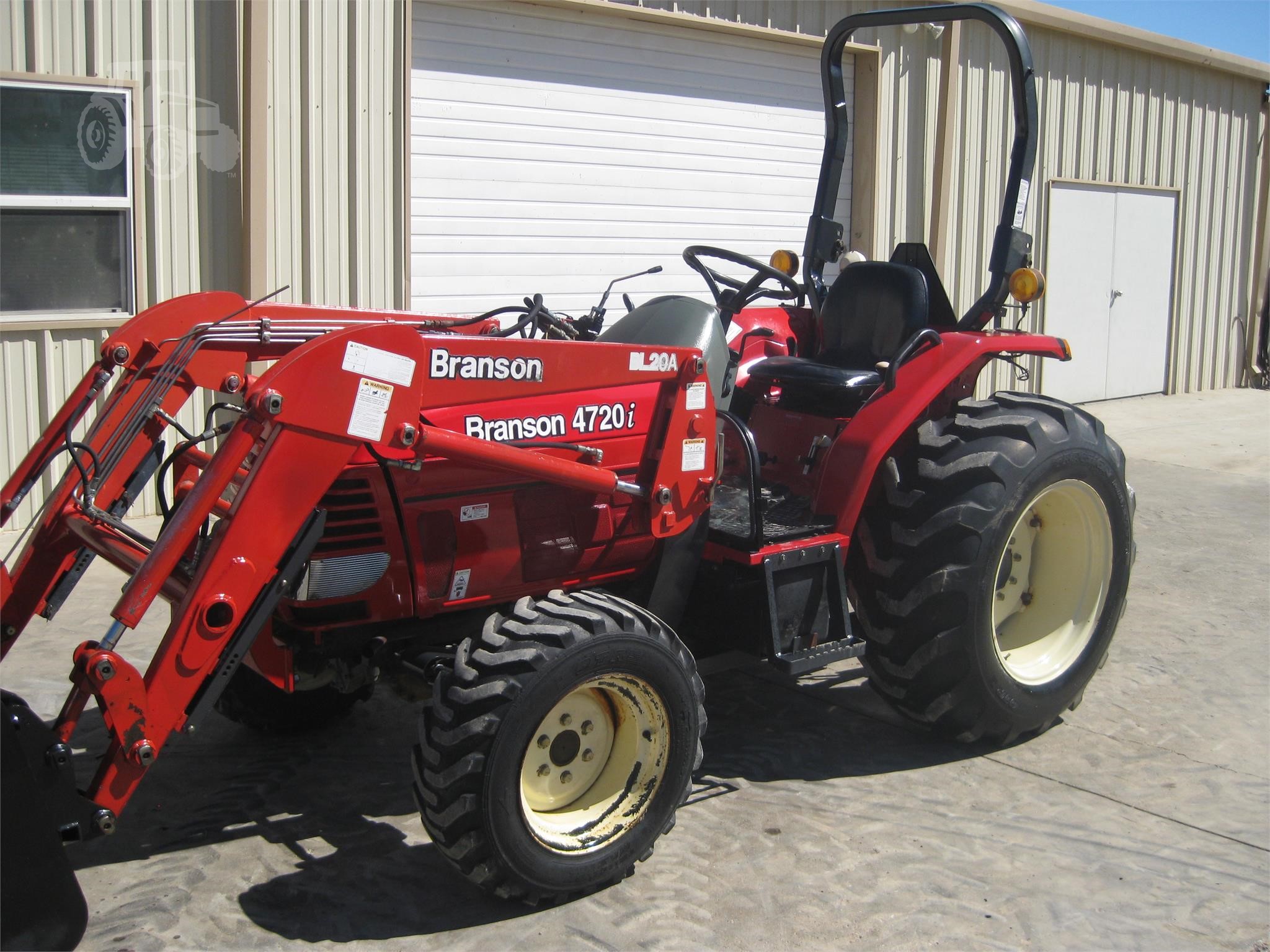

The Branson 4720 is a compact tractor rated at 40 hp, offering a smaller alternative in its class. Manufactured from 2004 to 2005, it features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The tractor has a listed weight of 1761 kg and is designed for use on areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1761 kg
Catalogue coverage
Variants represented
2
Richest spec table
54 rows
Recorded power
40 hp
Recorded weight
1761 kg
Transmissions
12-speed
Production years
2004-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBransonReference
Compact Utility tractorReference
Built in Yangsu-ri, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kukje 2.3L 4-cyl dieselReference
Engine29.8 kWReference
Kukje A2300N2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power29.8 kWReference
Pre-heatingblock heaterReference
Compression21.3:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity9.3 LReference
Transmission
12-speedReference
TransmissionsynchromeshReference
Gears12 forward and reverseReference
Capacities
Fuel42.0 LReference
PTO & Hydraulics
Hydraulic system36.7 LReference
Typeopen centerReference
Capacity36.7 LReference
Valves0 to 2Reference
Pump flow33.7 lpmReference
Total flow50.0 lpmReference
Rear TypeIReference
Rear lift1170 kgReference
Rear PTOliveReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase180 cmReference
Weight1761 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Ag front8-18Reference
Ag rear12.4-28Reference
Lawn/turf front29x12.00-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length322 cmReference
Width154 cmReference
Height223 cmReference
Ground clearance30 cmReference
Branson 4720 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
