Tractor · 2005Unverified

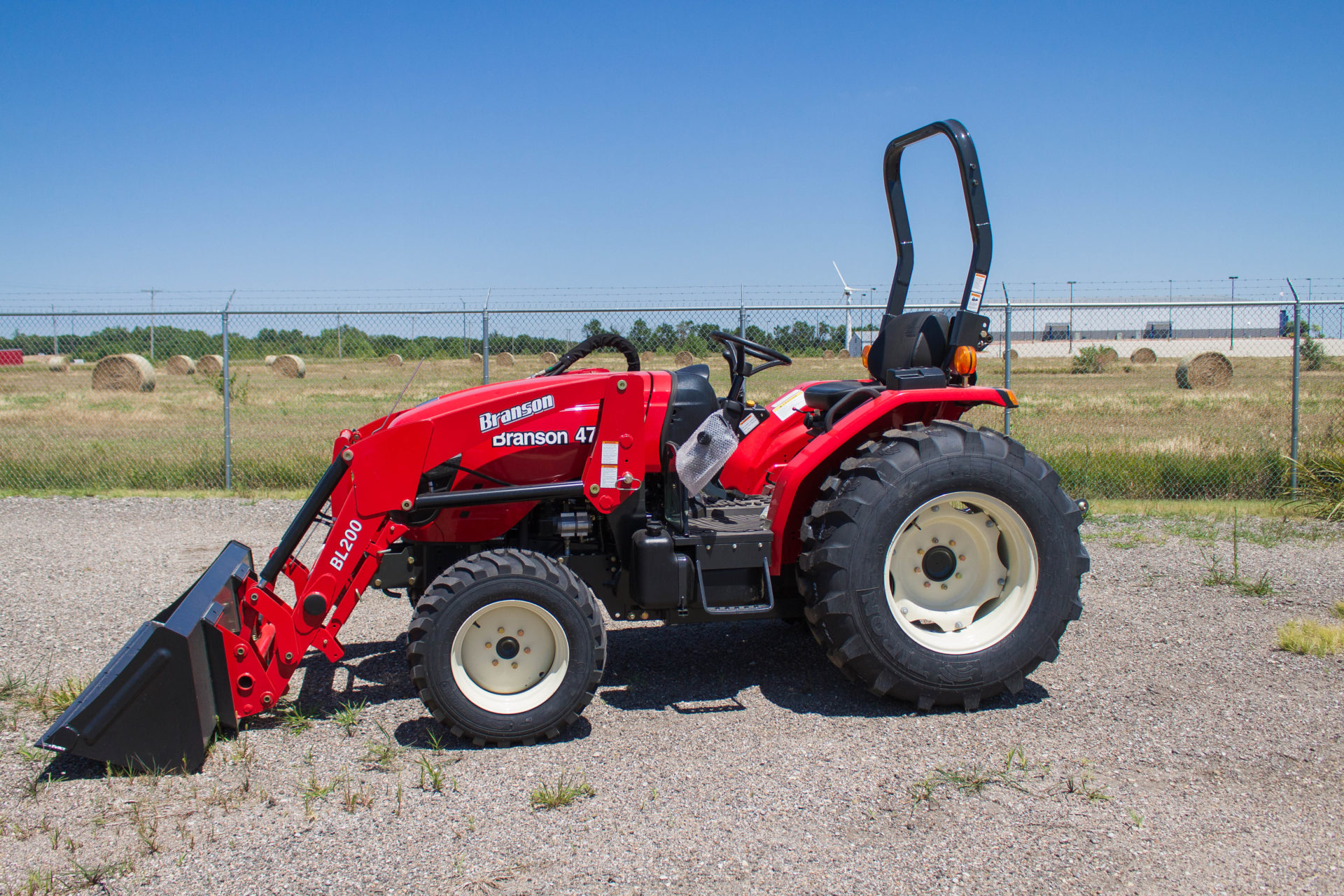

Branson 4720h

Name: Branson 4720h
Brand: Branson

Branson 4720h · 47 hp. Reference specifications; pending source verification.

The Branson 4720h is a tractor model with a power rating of approximately 47 hp, categorising it at the lower end of its class. It was manufactured in 2005. The tractor features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight is listed as 1867 kg, suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

47 hp

Weight

1867 kg

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

47 hp

Recorded weight

1867 kg

Transmissions

hydrostatic

Production years

2005-2005

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBransonReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

ROPS. Canopy optional.Reference

Variants

4720ishuttle shiftReference

4720hhydrostaticReference

Engine

Kukje 2.3L 4-cyl dieselReference

Fuel tank37.1 LReference

Engine (gross)35.0 kWReference

Kukje A2300N2Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.3 LReference

Bore/Stroke88 x 94 mmReference

Power (gross)35.0 kWReference

Air cleanerdry elementReference

Pre-heatingblock heater (optional)Reference

Compression21.3:1Reference

Rated RPM2600Reference

Starter typeelectricReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Valves0 to 2Reference

Total flow31.8 lpmReference

Rear TypeIReference

Rear lift (at ends)1170 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Dimensions

Wheelbase180 cmReference

Weight1867 kgReference

Front tire8-18Reference

Rear tire12.4-28Reference

Ag front8-18Reference

Ag rear12.4-28Reference

Length314 cmReference

Width142 cmReference

Height (ROPS)246 cmReference

Ground clearance30 cmReference

Front tread111 cmReference

Rear tread110 to 150 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
