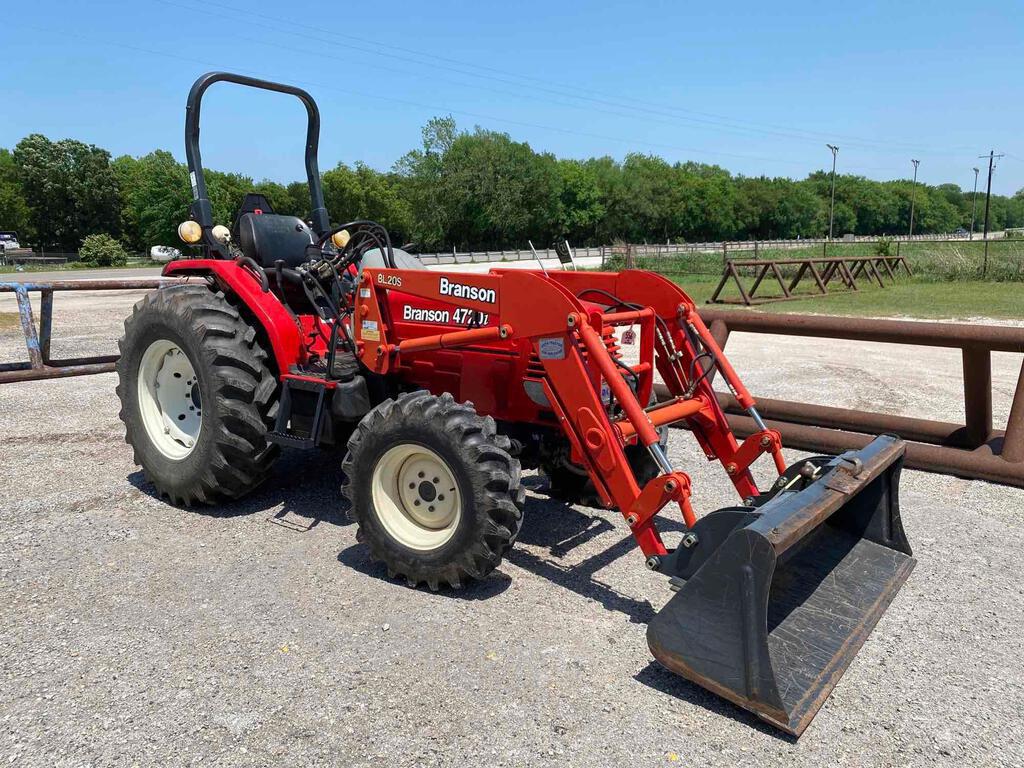

The Branson 4720i is a compact tractor model with a rated output of 47 hp, manufactured in 2005. It features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system through a hydrostatic transmission. The listed weight of the Branson 4720i is 1867 kg, and it is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
1867 kg
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
47 hp
Recorded weight
1867 kg
Transmissions
12-speed synchronized shuttle
Production years
2005-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBransonReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS. Canopy optional.Reference
Variants
4720ishuttle shiftReference
4720hhydrostaticReference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank41.6 LReference
Engine (gross)35.0 kWReference
Kukje A2300N2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power (gross)35.0 kWReference
Air cleanerdry elementReference
Pre-heatingblock heater (optional)Reference
Compression21.3:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves0 to 2Reference
Total flow31.8 lpmReference
Rear TypeIReference
Rear lift (at ends)1170 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase180 cmReference
Weight1867 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Ag front8-18Reference
Ag rear12.4-28Reference
Length314 cmReference
Width142 cmReference
Height (ROPS)246 cmReference
Ground clearance30 cmReference
Front tread128 cmReference
Rear tread110 to 150 cmReference
Branson 4720i attachments
front-end loaderReference
backhoeReference
4720i Serial Numbers
Location:Serial number plate on the right side of the Branson 4720i tractor frame, ahead of the front wheel.Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Branson B8620 Backhoe
Backhoe typeBranson B8620 BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
