Tractor · 2021Unverified

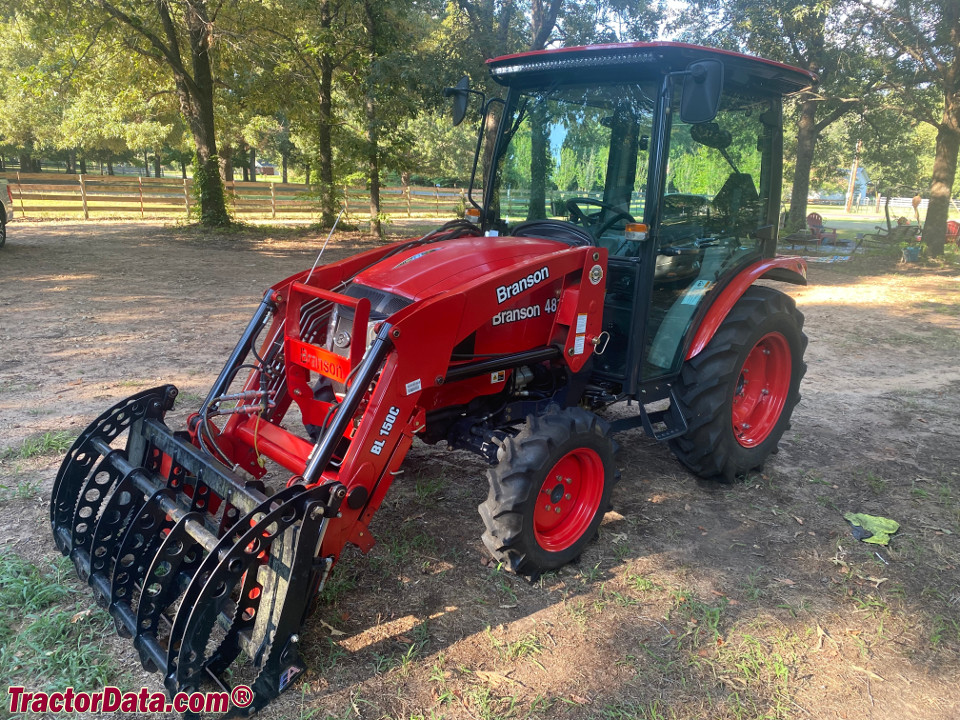

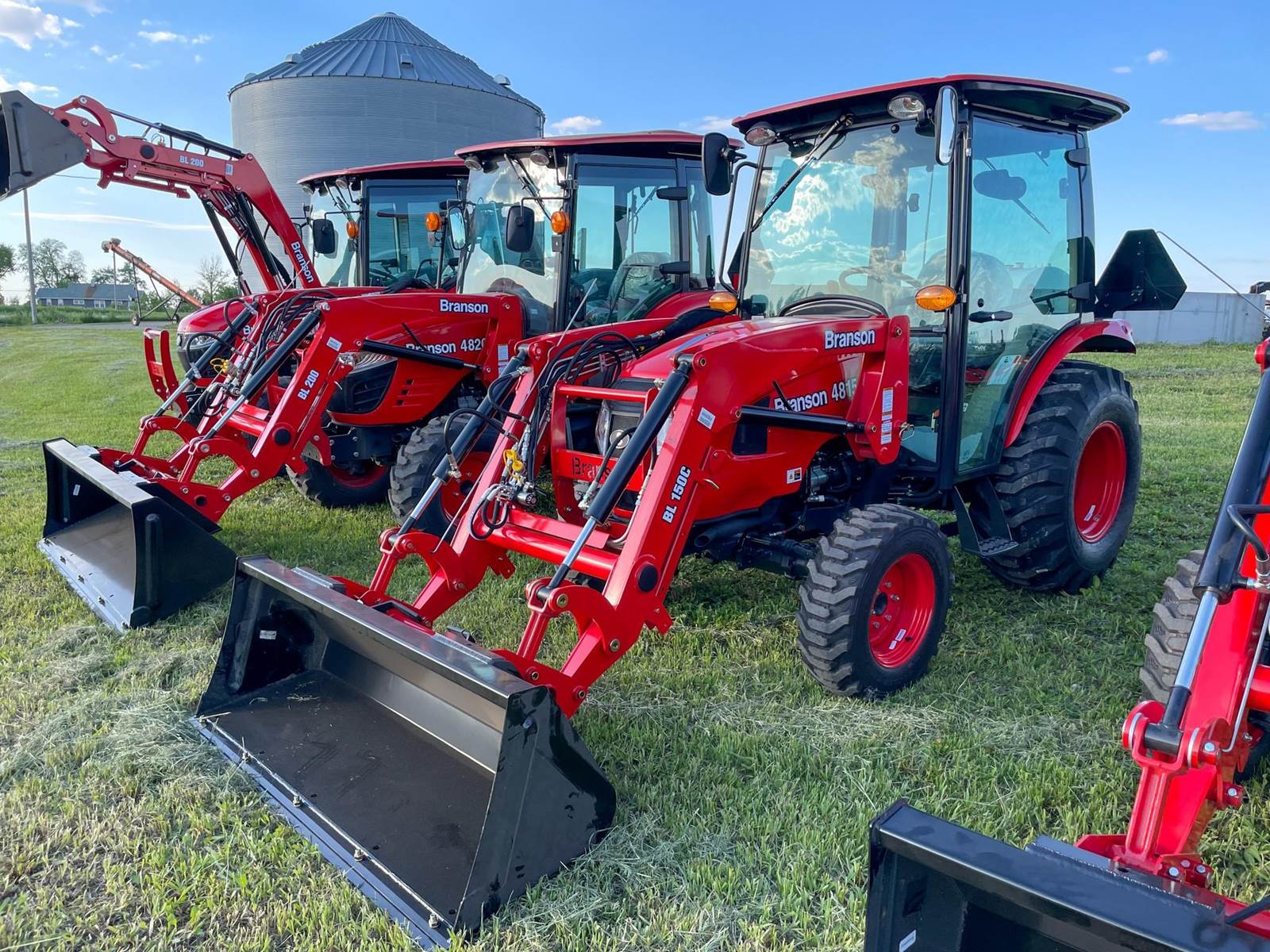

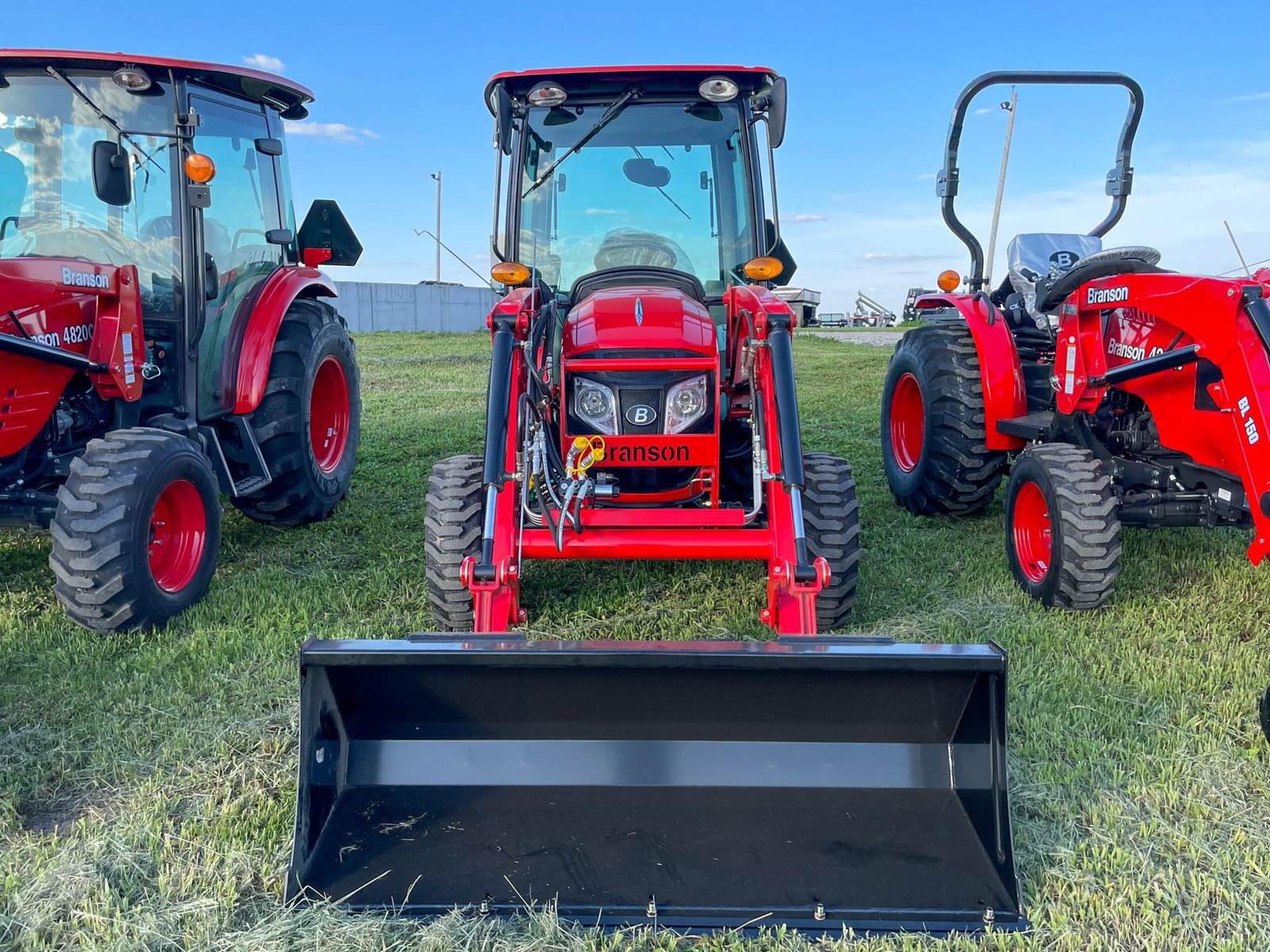

Branson 4815CH
Branson 4815CH — 15 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1661 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of TYM)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
4815RshuttleReference
4815HhydrostaticReference
4815CHcabReference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine35.8 kWReference
Kukje A2300N2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier 4Reference
Power35.8 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
Typeopen centerReference
Pump flow16.7 lpmReference
Total flow54.1 lpmReference
Steering flow37.5 lpmReference
Rear TypeIReference
Rear lift1499 kgReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM560@2600Reference
Dimensions
Wheelbase166 cmReference
Weight1661 kgReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Industrial front28x8.5-14Reference
Industrial rear15-19.5Reference
Length330 cmReference
Width141 cmReference
Height (cab)226 cmReference
Ground clearance33 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
