Tractor · 2015Unverified

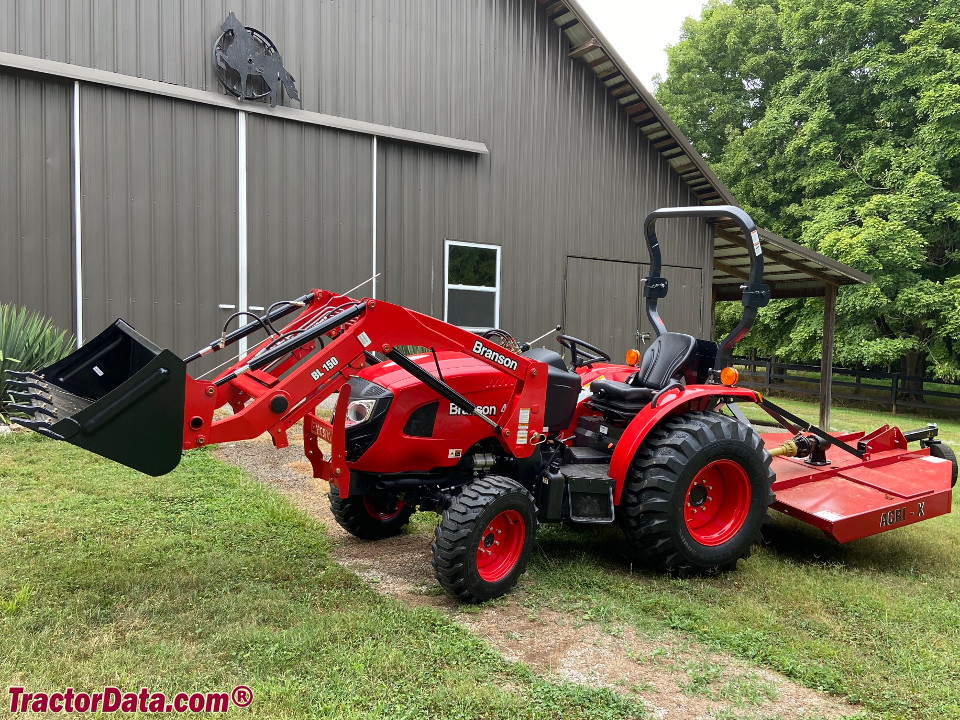

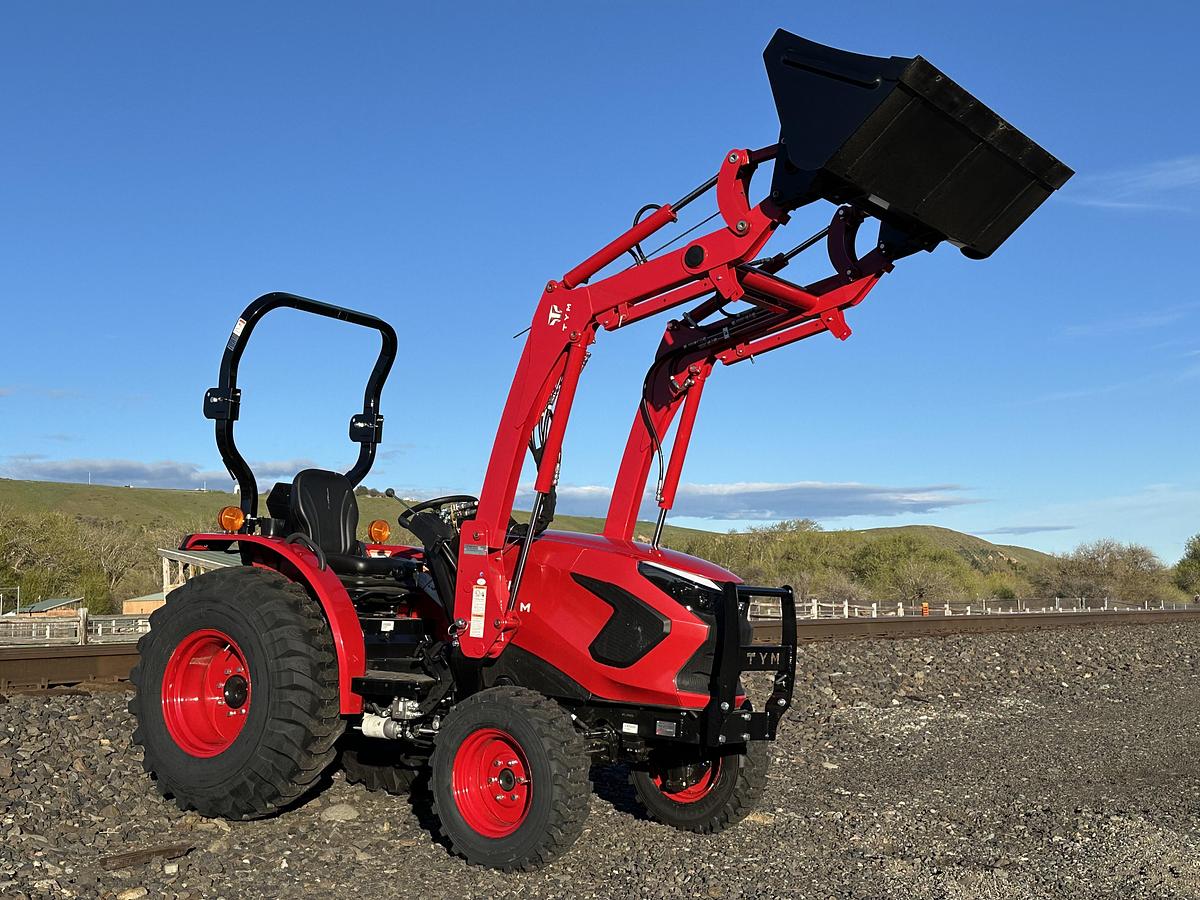

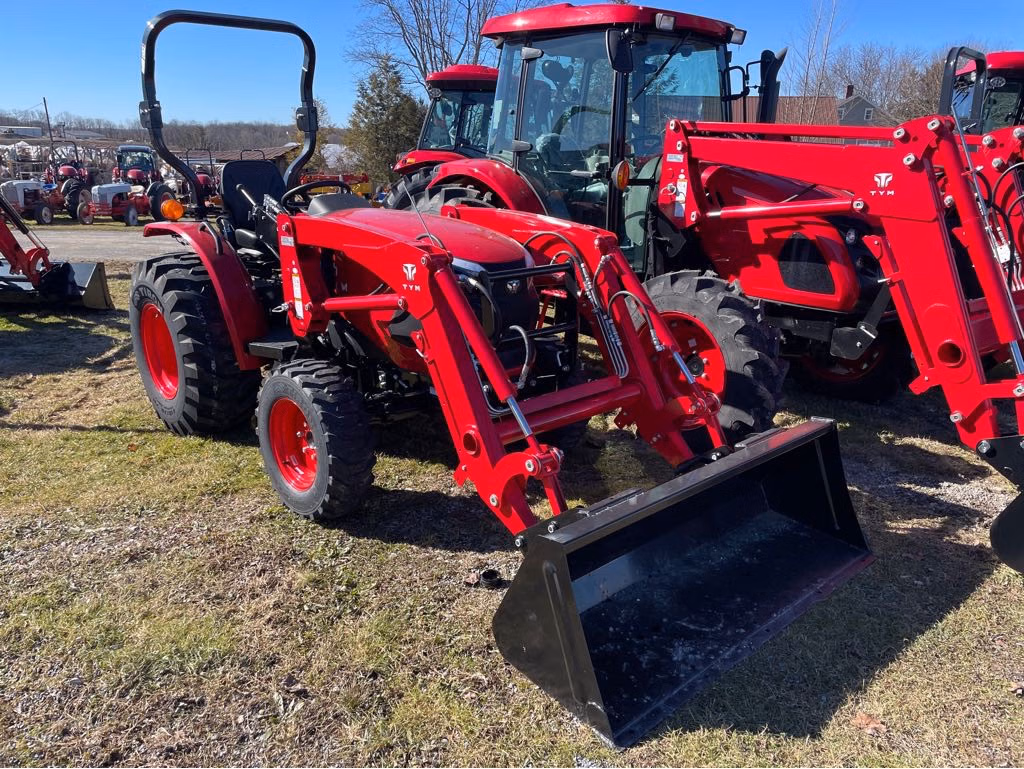

Branson 4815H
Branson 4815H — 15 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1486 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of TYM)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
4815RshuttleReference
4815HhydrostaticReference
4815CHcabReference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine35.0 kWReference
Kukje A2300N2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power35.0 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
Pump flow32.9 lpmReference
Steering flow17.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1097 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase166 cmReference
Weight1486 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Industrial front28x8.50-15Reference
Industrial rear43x16-20Reference
Length307 cmReference
Width143 cmReference
Height (ROPS)247 cmReference
Ground clearance36 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
