Tractor · 2015Unverified

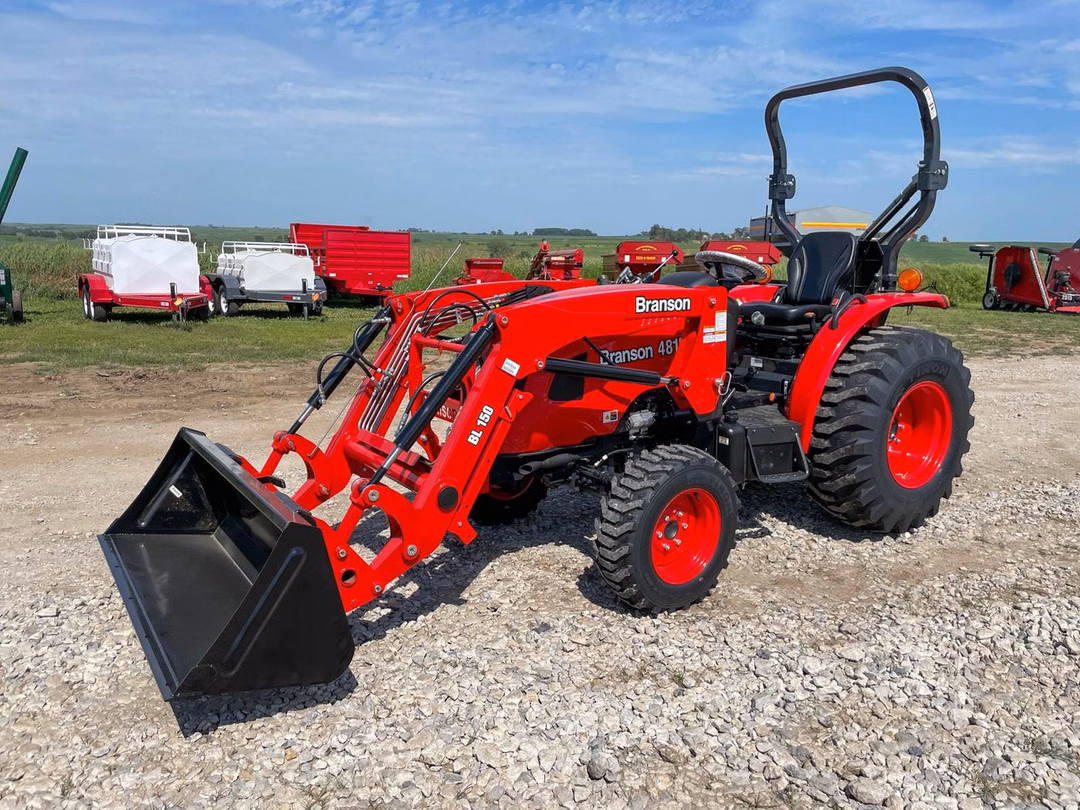

Branson 4815R
Branson 4815R — 15 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Hover a source tag to verify
Overview
ManufacturerBranson (a part of TYM)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
4815RshuttleReference
4815HhydrostaticReference
4815CHcabReference
Engine
Kukje 2.3L 4-cyl dieselReference
Engine35.0 kWReference
Kukje A2300N2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power35.0 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
Pump flow32.9 lpmReference
Steering flow17.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1499 kgReference
Rear lift (at 24"/610mm)1097 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Industrial front28x8.50-15Reference
Industrial rear43x16-20Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
