Tractor · 2021Unverified

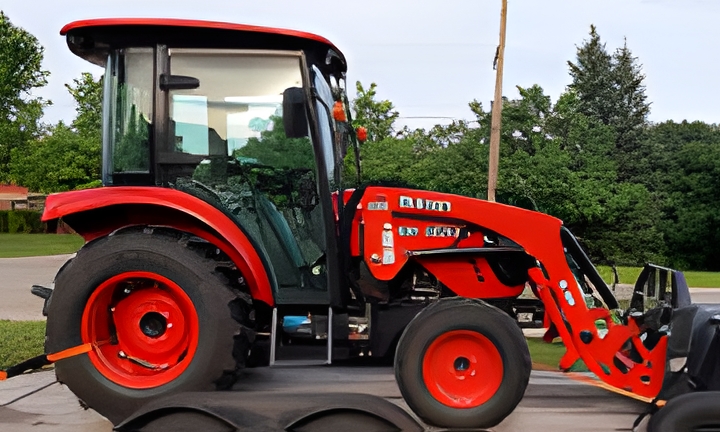

Branson 4820C

Name: Branson 4820C
Brand: Branson

Branson 4820C — Compact Utility tractor · 36 hp. Reference specifications; pending source verification.

The Branson 4820C tractor has a rated output of 36 hp, making it one of the more compact options in its class. It was manufactured from 2021 to 2025. The tractor is powered by a 4-cylinder diesel liquid-cooled engine, which drives through four-wheel drive via a hydrostatic transmission. Its listed weight is 1972 kg, and it is suited to tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

36 hp

Weight

1972 kg

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

36 hp

Recorded weight

1972 kg

Transmissions

16-speed synchronized shuttle

Production years

2021-2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBranson (a part of TYM)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Cab standard.Reference

Variants

4820RROPS shuttleReference

4820HROPS hydrostaticReference

4820CCab shuttleReference

4820CHCab hydrostaticReference

Engine

Kukje 2.3L 4-cyl dieselReference

Fuel tank44.7 LReference

Engine35.8 kWReference

KukjeReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.3 LReference

Bore/Stroke88 x 94 mmReference

EmissionsTier IVReference

Power35.8 kWReference

Air cleanerdual dryReference

Rated RPM2600Reference

Transmission

16-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears16 forward and reverseReference

PTO & Hydraulics

PTO (claimed)26.8 kWReference

Pump flow60.9 lpmReference

Steering flow18.9 lpmReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM584@2600Reference

Dimensions

Wheelbase180 cmReference

Weight1972 kgReference

Front tire9.5-16Reference

Rear tire12.4-28Reference

Standard tires (ag)Front: 9.5-16. Rear: 12.4-28Reference

Lawn/turf front29x12.5-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front10-16.5Reference

Industrial rear420/70-24Reference

Length323 cmReference

Height (cab)248 cmReference

Ground clearance39 cmReference

Branson 4820C attachments

front-end loaderReference

backhoeReference

Attachment overview

Front-end loaderReference

BackhoeReference

Branson BH250 Backhoe

Backhoe typeBranson BH250 BackhoeReference

Transport height231 cmReference

2-Foot flat digging depth262 cmReference

Reach from pivot341 cmReference

Loading height234 cmReference

Bucket Rotation151°Reference

Swing Arc180°Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
