Tractor · 2021Unverified

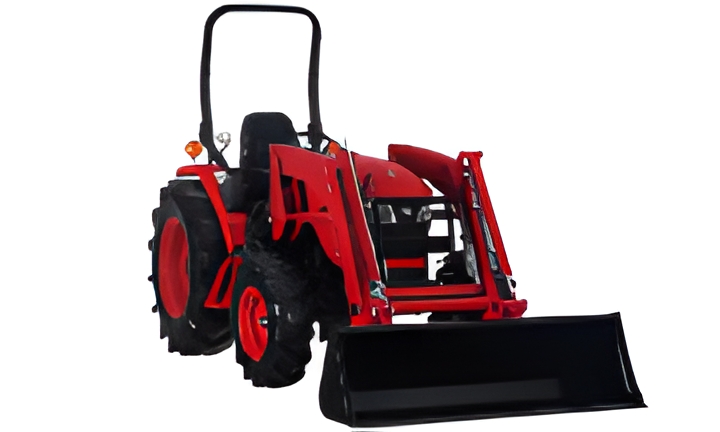

Branson 4820R
Branson 4820R — Compact Utility tractor · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1737 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of TYM)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
4820RROPS shuttleReference
4820HROPS hydrostaticReference
4820CCab shuttleReference
4820CHCab hydrostaticReference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank44.7 LReference
Engine35.8 kWReference
KukjeReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
EmissionsTier IVReference
Power35.8 kWReference
Air cleanerdual dryReference
Rated RPM2600Reference
Transmission
16-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Pump flow60.9 lpmReference
Steering flow18.9 lpmReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM584@2600Reference
Dimensions
Wheelbase180 cmReference
Weight1737 kgReference
Front tire9.5-16Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 9.5-16. Rear: 12.4-28Reference
Lawn/turf front29x12.5-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10-16.5Reference
Industrial rear420/70-24Reference
Length323 cmReference
Width164 cmReference
Height (ROPS)249 cmReference
Ground clearance39 cmReference

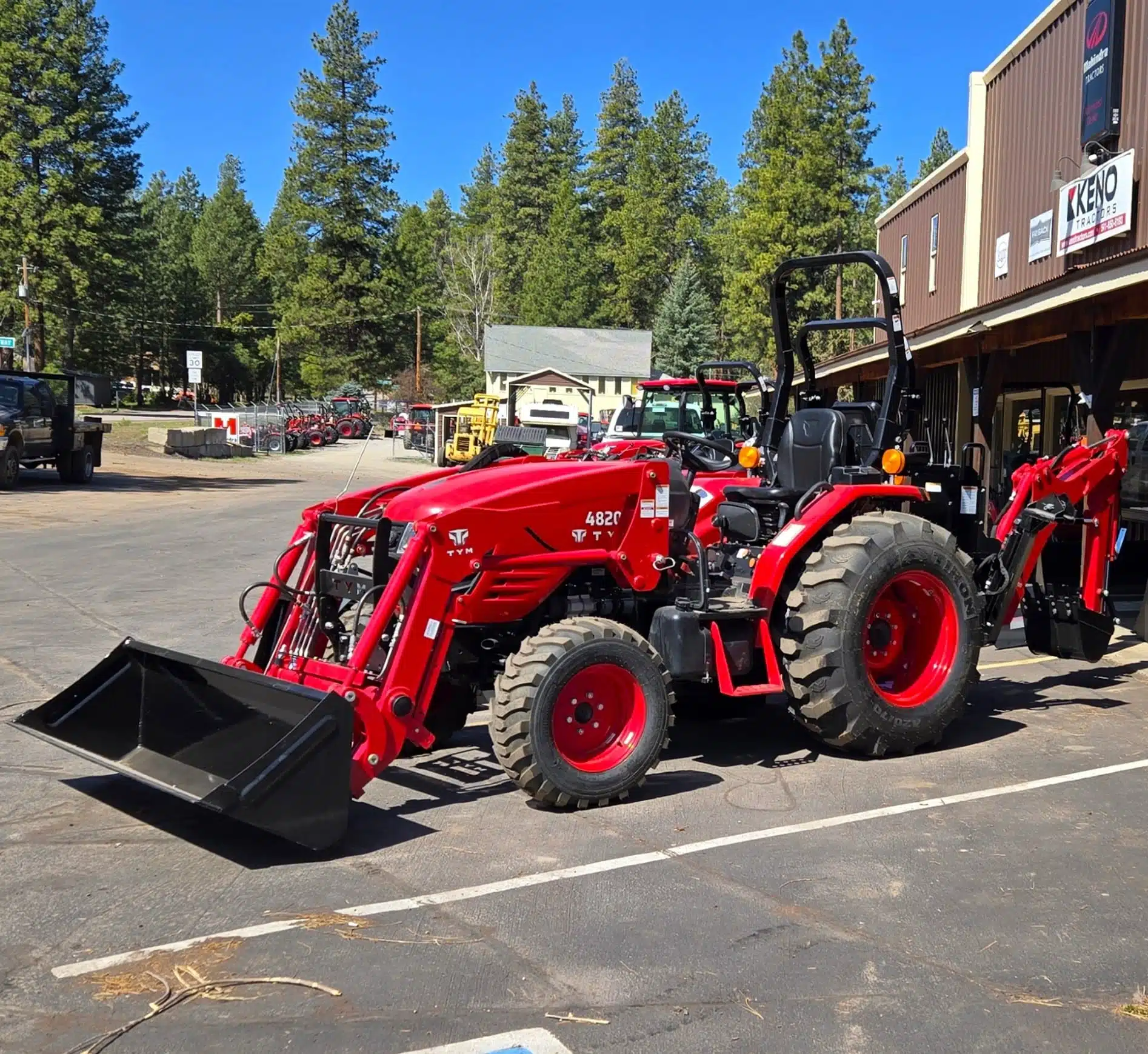

Branson 4820R attachments
front-end loaderReference
backhoeReference
Attachment overview
Front-end loaderReference
BackhoeReference
Branson BH250 Backhoe
Backhoe typeBranson BH250 BackhoeReference
Transport height231 cmReference
2-Foot flat digging depth262 cmReference
Reach from pivot341 cmReference
Loading height234 cmReference
Bucket Rotation151°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
