Tractor · 2012Unverified
Branson 5220C
Branson 5220C — 20C Series · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1870 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Variants
5220RROPSReference
5220CCabReference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank35.2 LReference
Engine41.0 kWReference
Kukje A2300T3-RReference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power41.0 kWReference
Fuel use12.5 l/hourReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression21.3:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed syncro shuttleReference
Typesyncro shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)35.4 kWReference
Typeopen centerReference
Mid valves2Reference
Pump flow42.0 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1499 kgReference
Rear Armstelescopic lower armsReference
Rear PTOindependentReference
Rear PTO Type540/790 (1.375)Reference
Dimensions
Wheelbase180 cmReference
Weight1870 kgReference
Front tire7-16Reference
Rear tire11.2-24Reference
Weight471 kgReference
Weight396 kgReference
Ag front7-16Reference
Ag rear11.2-24Reference
Lawn/turf front29x12.5-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front12-16.5Reference
Industrial rear17.5Lx24Reference
Length330 cmReference
Width162 cmReference
Height248 cmReference
Ground clearance32 cmReference
Front tread128 cmReference
Rear tread110 to 152 cmReference
Branson 5220C attachments
front-end loaderReference
backhoeReference
5220C Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview

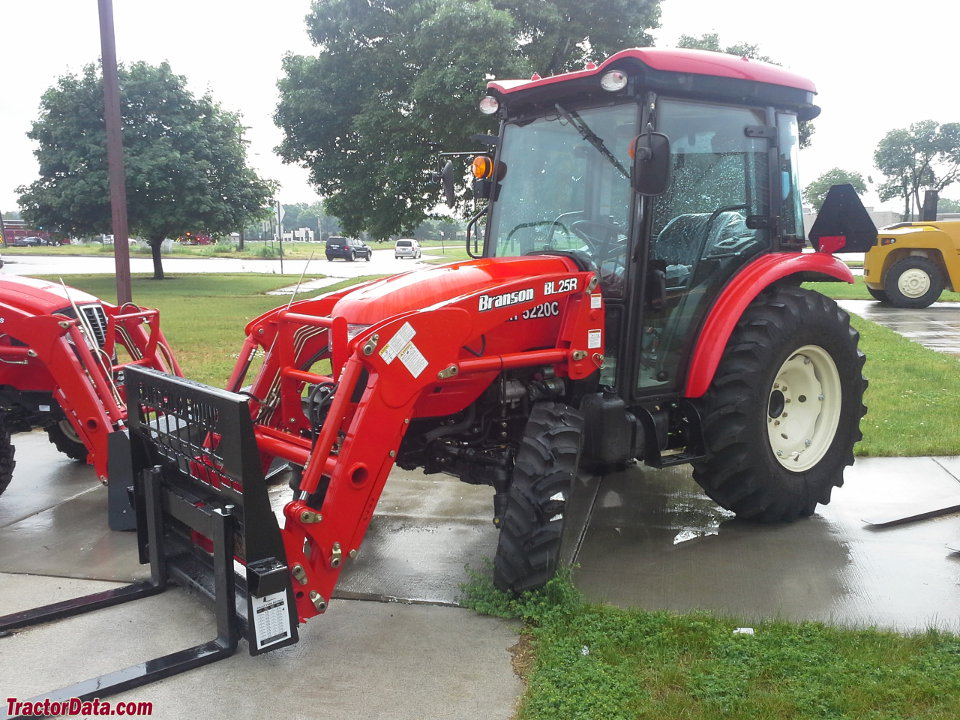

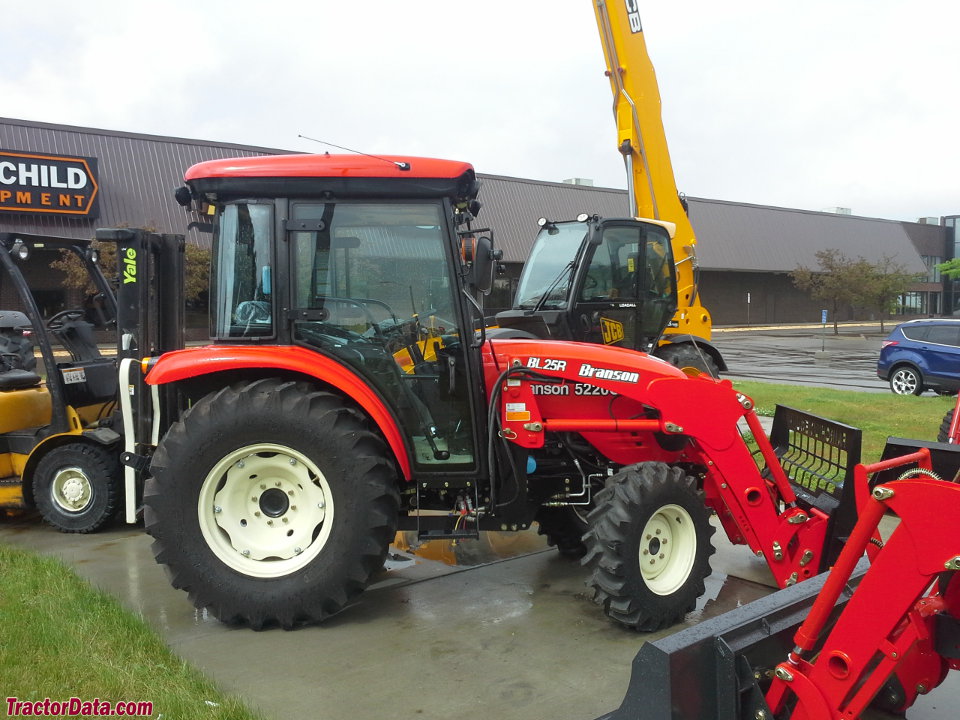

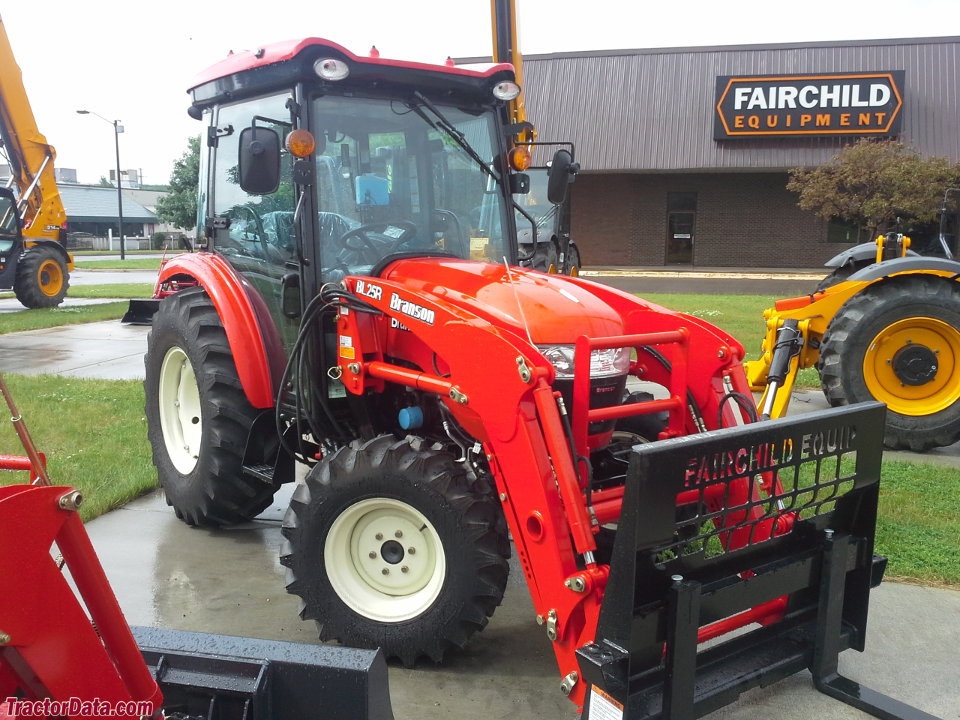

Branson BL25S loaderReference
Branson 2500X loaderReference
BackhoeReference
Branson BH860 Backhoe
Backhoe typeBranson BH860 BackhoeReference
Digging depth259 cmReference
Reach from pivot340 cmReference
Loading height231 cmReference
Bucket Rotation151°Reference
Swing Arc180°Reference
Branson B8620 Backhoe
Backhoe typeBranson B8620 BackhoeReference
Digging depth274 cmReference
2-Foot flat digging depth259 cmReference
Reach from pivot337 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
Branson 8540X Backhoe
Backhoe typeBranson 8540X BackhoeReference
Digging depth243 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1288 kgReference
Dipperstick force909 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
