Tractor · 2016Unverified

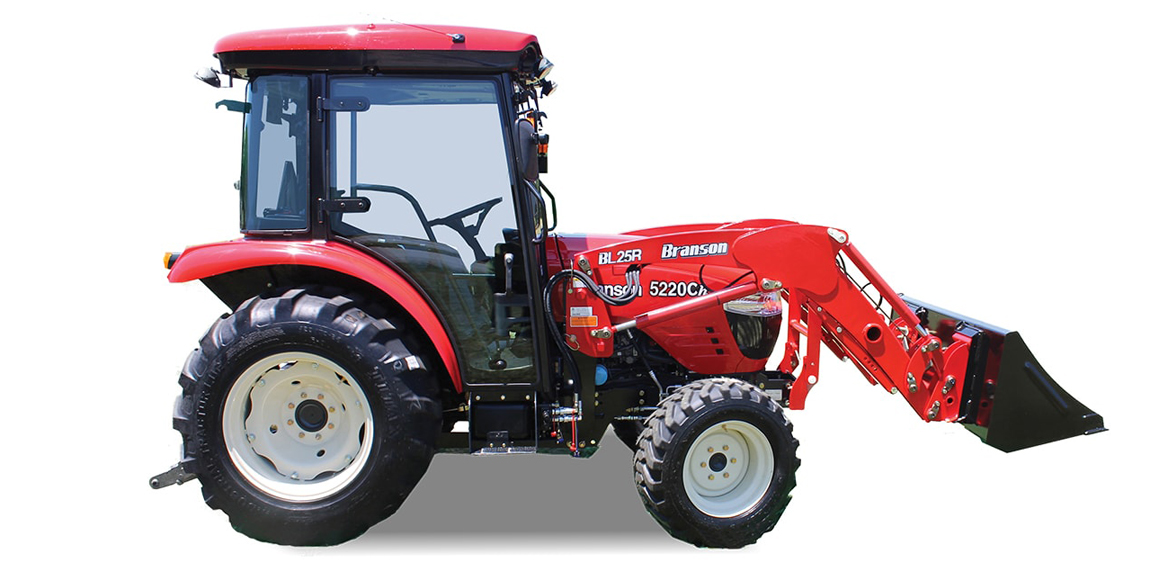

Branson 5220CH

Name: Branson 5220CH
Brand: Branson

Branson 5220CH — 20 Series · 48 hp. Reference specifications; pending source verification.

The Branson 5220CH is a tractor with a rated power output of 48 hp, positioned within the lower power range for its class. Manufactured from 2016 to 2020, it features a 4-cylinder turbocharged diesel liquid-cooled engine paired with a four-wheel drive system and hydrostatic transmission. The tractor has an operating weight of 2014 kg, and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

48 hp

Weight

2014 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

48 hp

Recorded weight

2014 kg

Transmissions

hydrostatic

Production years

2016-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBranson (a part of Kukje)Reference

Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Kukje 2.3L 4-cyl dieselReference

Fuel tank35.2 LReference

Engine41.0 kWReference

Kukje A2300T3Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.3 LReference

Bore/Stroke88 x 94 mmReference

Power41.0 kWReference

Air cleanerdry dual elementReference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)35.4 kWReference

Pump flow39.4 lpmReference

Steering flow18.9 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift1499 kgReference

Rear Armstelescopic lower linksReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Dimensions

Wheelbase180 cmReference

Weight2014 kgReference

Front tire7x16Reference

Rear tire12.4x24Reference

Weight680 kgReference

Weight557 kgReference

Standard tires (ag)Front: 7x16. Rear: 12.4x24Reference

Standard tires (ag)Front: 9.5x16. Rear: 12.4x28Reference

Standard tires (ag)Front: 9.5x16. Rear: 14.9x24Reference

Lawn/turf front27x8.5x15Reference

Lawn/turf front29x12.5x15Reference

Lawn/turf rear41x14x20Reference

Lawn/turf rear44x18x20Reference

Industrial front28x8.50-15Reference

Industrial front10x16.5Reference

Industrial front12x16.5Reference

Industrial rear43x16-20Reference

Industrial rear420/70x24Reference

Industrial rear16.9x24Reference

Length331 cmReference

Height (cab)236 cmReference

Ground clearance33 cmReference

Front tread128 cmReference

Rear tread110 to 152 cmReference

Branson 5220CH attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Branson BH860 Backhoe

Backhoe typeBranson BH860 BackhoeReference

Transport height231 cmReference

Bucket width40 cmReference

Digging depth262 cmReference

Reach from pivot341 cmReference

Loading height234 cmReference

Bucket Rotation151°Reference

Swing Arc180°Reference

Bucket force2011 kgReference

Dipperstick force1221 kgReference

Branson K710 Backhoe

Backhoe typeBranson K710 BackhoeReference

Transport height302 cmReference

Bucket width40 cmReference

Digging depth238 cmReference

Reach from pivot322 cmReference

Loading height129 cmReference

Bucket Rotation175°Reference

Swing Arc180°Reference

Bucket force1446 kgReference

Dipperstick force898 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
