Branson 5220H
Branson 5220H — 20 Series · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1867 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank35.2 LReference
Engine41.0 kWReference
Kukje A2300T3Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power41.0 kWReference
Air cleanerdry dual elementReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)35.4 kWReference
Pump flow39.4 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1499 kgReference
Rear Armstelescopic lower linksReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase180 cmReference
Weight1867 kgReference
Front tire7x16Reference
Rear tire12.4x24Reference
Weight680 kgReference
Weight557 kgReference
Standard tires (ag)Front: 7x16. Rear: 12.4x24Reference
Standard tires (ag)Front: 9.5x16. Rear: 12.4x28Reference
Standard tires (ag)Front: 9.5x16. Rear: 14.9x24Reference
Lawn/turf front27x8.5x15Reference
Lawn/turf front29x12.5x15Reference
Lawn/turf rear41x14x20Reference
Lawn/turf rear44x18x20Reference
Industrial front28x8.50-15Reference
Industrial front10x16.5Reference
Industrial front12x16.5Reference
Industrial rear43x16-20Reference
Industrial rear420/70x24Reference
Industrial rear16.9x24Reference
Length331 cmReference
Height (ROPS)252 cmReference
Ground clearance38 cmReference
Front tread128 cmReference
Rear tread110 to 152 cmReference
Branson 5220H attachments

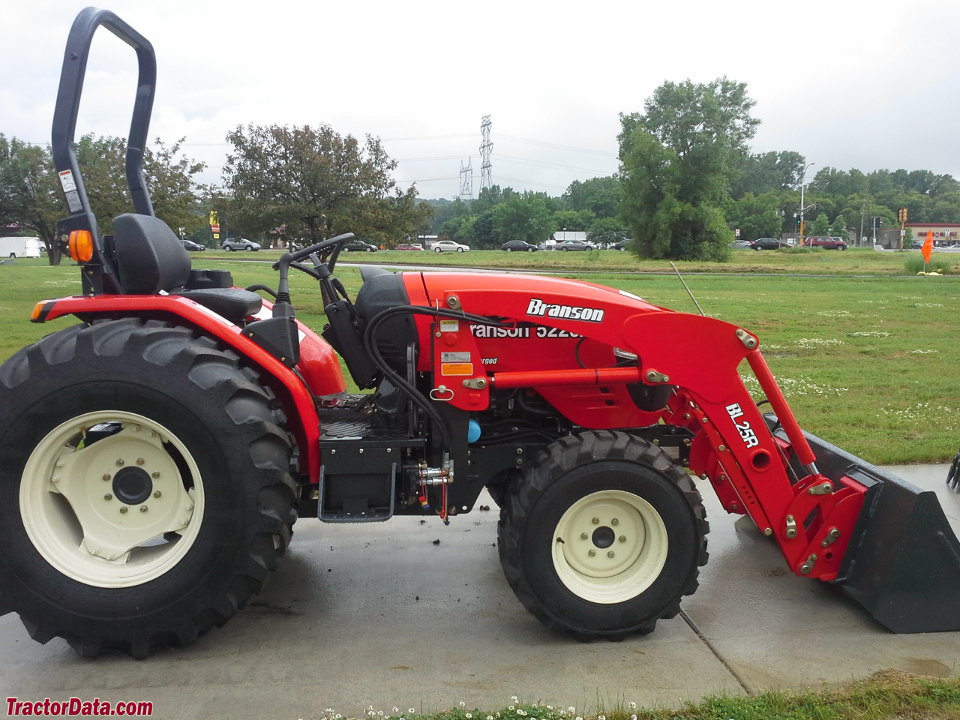

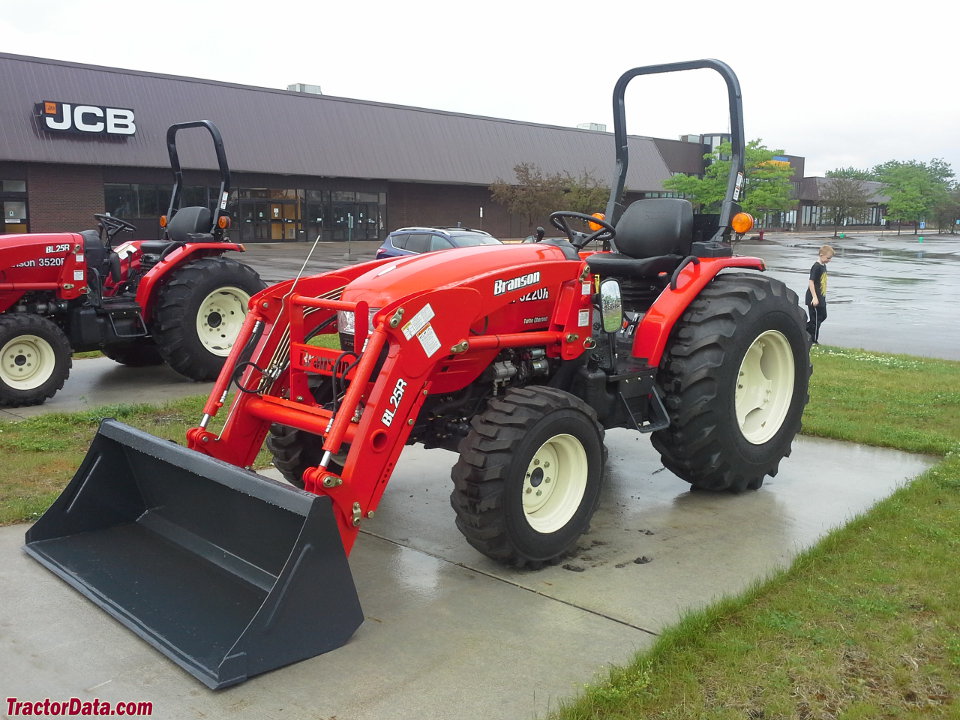

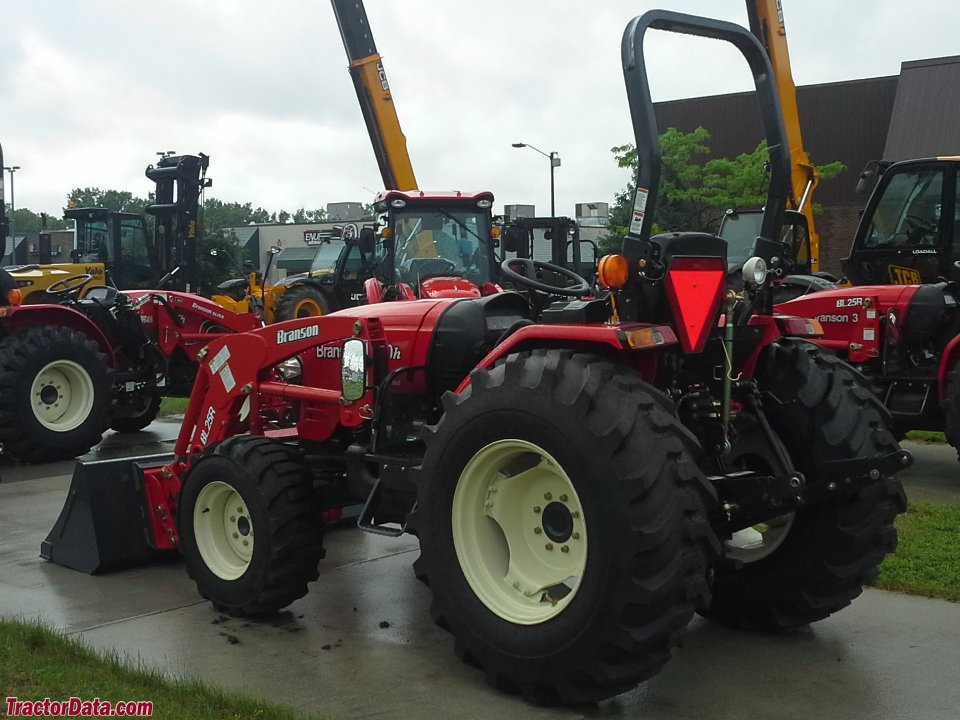

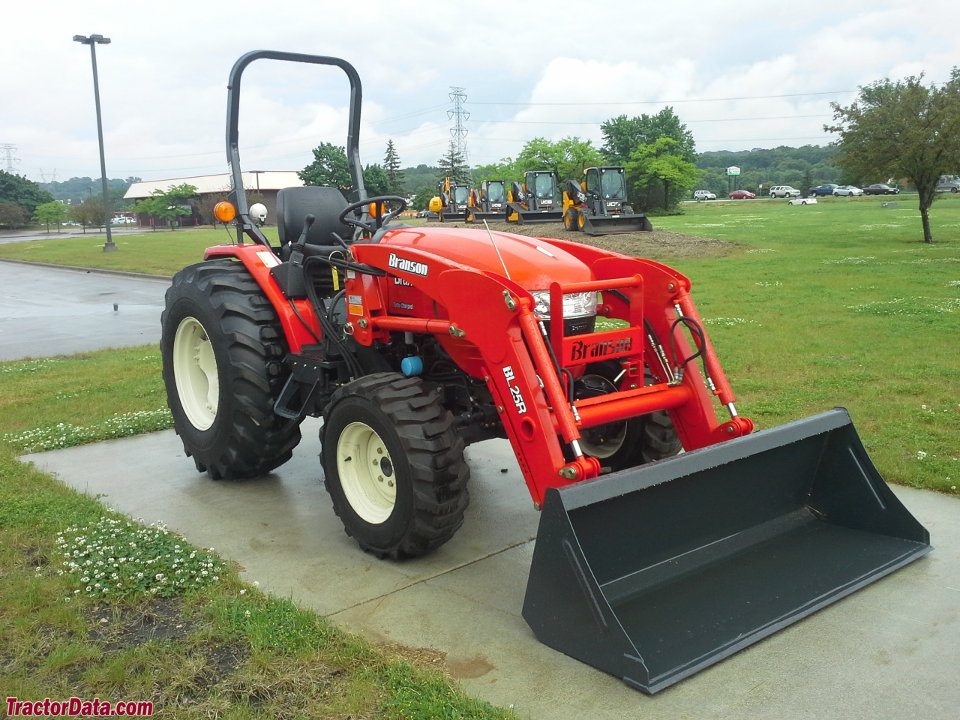

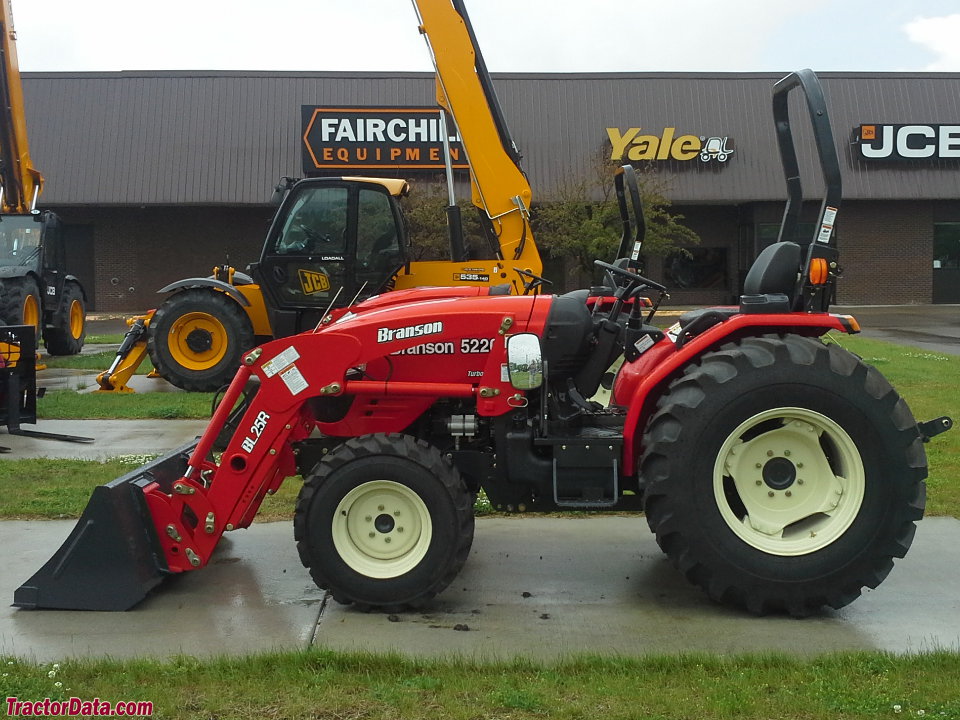

front-end loaderReference
backhoeReference
5220H Serial Number Location
Serial number plate on the front-right of the Branson 5220H tractor frame, ahead of the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Branson BH860 Backhoe
Backhoe typeBranson BH860 BackhoeReference
Transport height231 cmReference
Bucket width40 cmReference
Digging depth262 cmReference
Reach from pivot341 cmReference
Loading height234 cmReference
Bucket Rotation151°Reference
Swing Arc180°Reference
Bucket force2011 kgReference
Dipperstick force1221 kgReference
Branson K710 Backhoe
Backhoe typeBranson K710 BackhoeReference
Transport height302 cmReference
Bucket width40 cmReference
Digging depth238 cmReference
Reach from pivot322 cmReference
Loading height129 cmReference
Bucket Rotation175°Reference
Swing Arc180°Reference
Bucket force1446 kgReference
Dipperstick force898 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
