Tractor · 2021Unverified

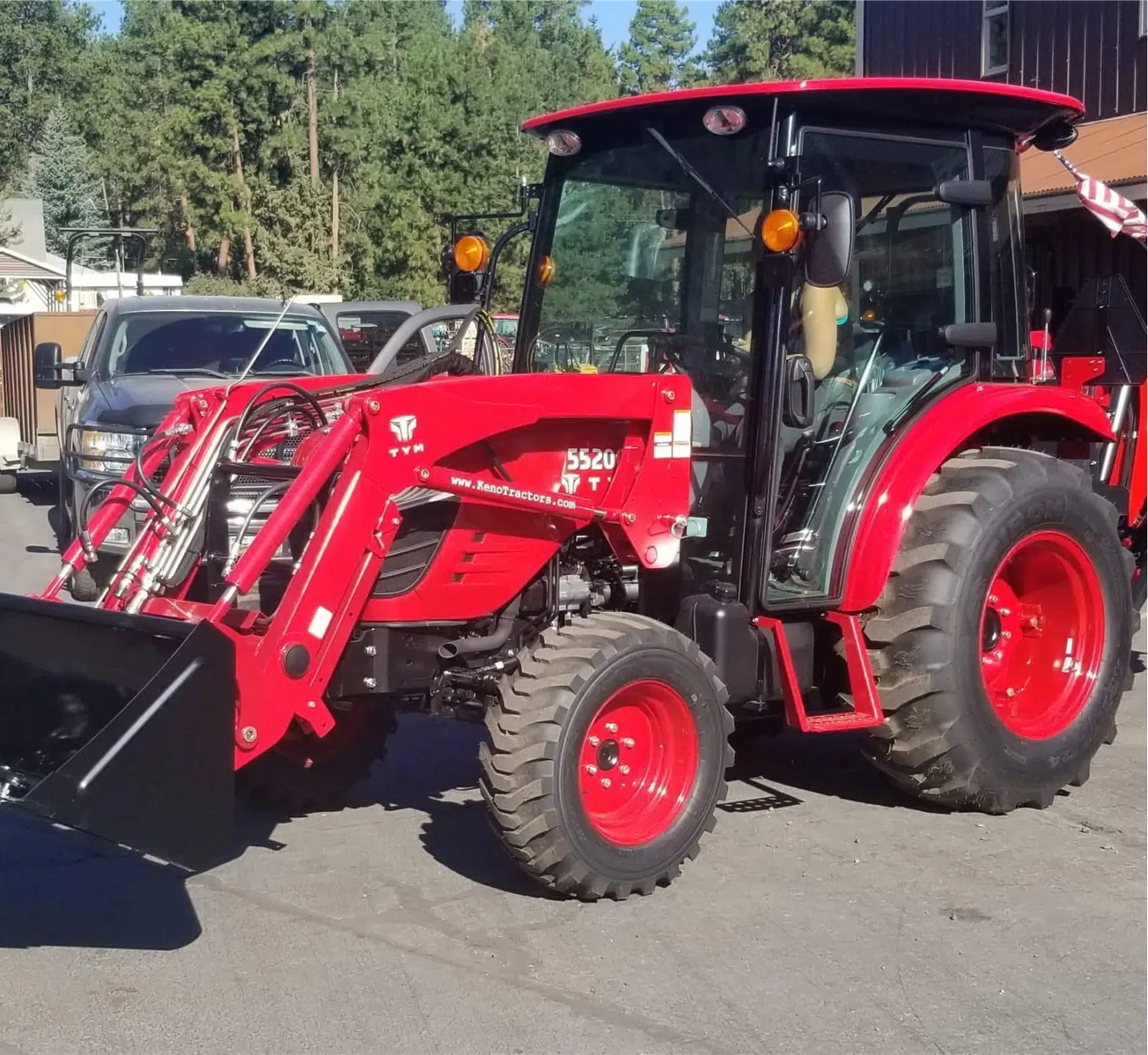

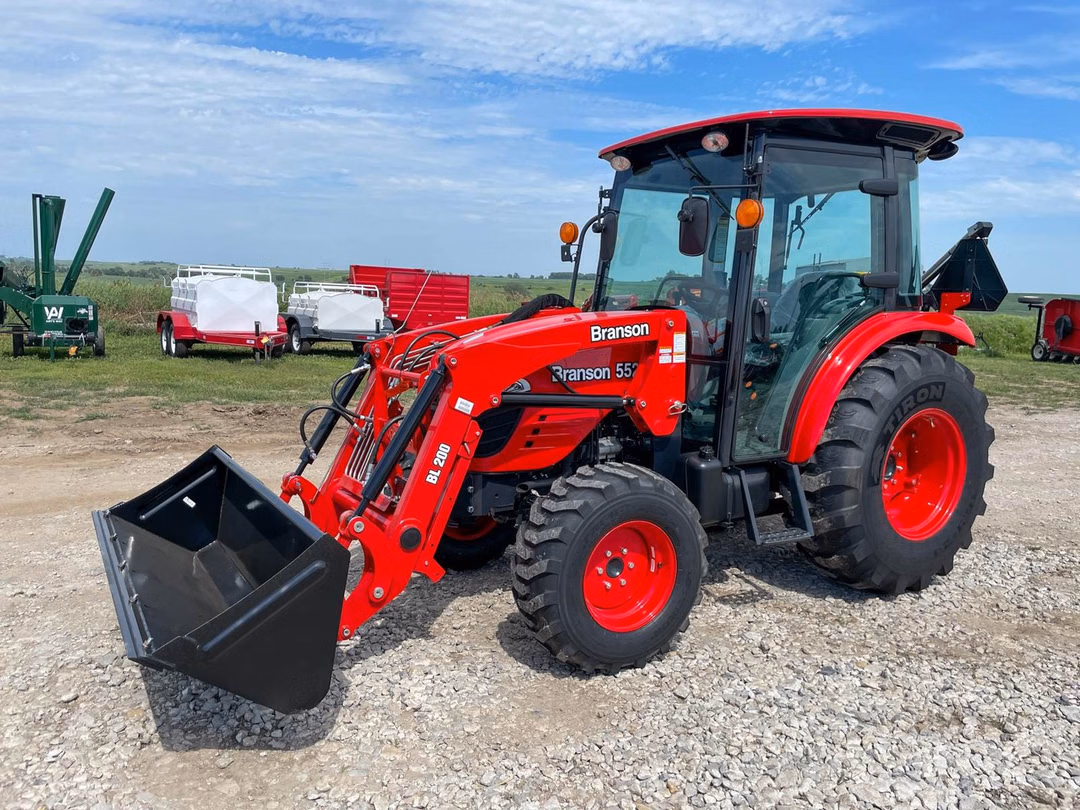

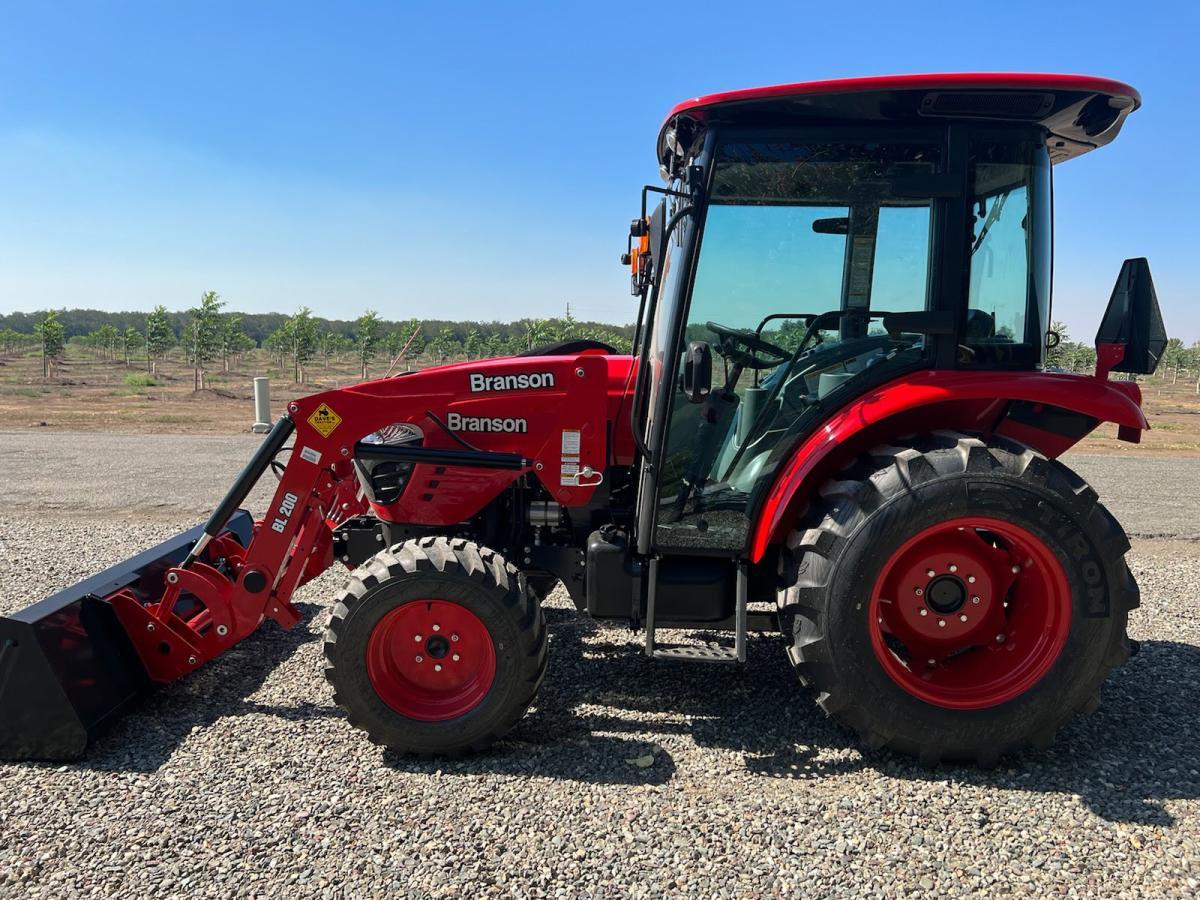

Branson 5520C

Name: Branson 5520C
Brand: Branson

Branson 5520C — Compact Utility tractor · 44 hp. Reference specifications; pending source verification.

The Branson 5520C is a compact tractor model with a rating of 44 hp. Manufactured between 2021 and 2023, it is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which drives the four-wheel drive system through a hydrostatic transmission. The tractor's listed weight is 1972 kg, making it suitable for tasks involving up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

44 hp

Weight

1972 kg

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

44 hp

Recorded weight

1972 kg

Transmissions

16-speed synchronized shuttle

Production years

2021-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBranson (a part of TYM)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Cab standard.Reference

Variants

5520RROPS shuttleReference

5520HROPS hydrostaticReference

5520CCab shuttleReference

5520CHCab hydrostaticReference

Engine

Kukje 2.3L 4-cyl dieselReference

Fuel tank44.7 LReference

Engine41.0 kWReference

KukjeReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.3 LReference

Bore/Stroke88 x 94 mmReference

EmissionsTier IVReference

Power41.0 kWReference

Air cleanerdual dryReference

Rated RPM2600Reference

Transmission

16-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears16 forward and reverseReference

PTO & Hydraulics

PTO (claimed)32.8 kWReference

Pump flow57.9 lpmReference

Steering flow18.9 lpmReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM584@2600Reference

Dimensions

Wheelbase180 cmReference

Weight1972 kgReference

Front tire9.5-16Reference

Rear tire14.9-24Reference

Standard tires (ag)Front: 9.5-16. Rear: 14.9-24Reference

Lawn/turf front29x12.5-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front10-16.5Reference

Industrial rear16.9-24Reference

Length323 cmReference

Height (cab)248 cmReference

Ground clearance39 cmReference

Branson 5520C attachments

front-end loaderReference

backhoeReference

Attachment overview

Front-end loaderReference

BackhoeReference

Branson BH250 Backhoe

Backhoe typeBranson BH250 BackhoeReference

Transport height231 cmReference

2-Foot flat digging depth262 cmReference

Reach from pivot341 cmReference

Loading height234 cmReference

Bucket Rotation151°Reference

Swing Arc180°Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
