Tractor · 2021Unverified

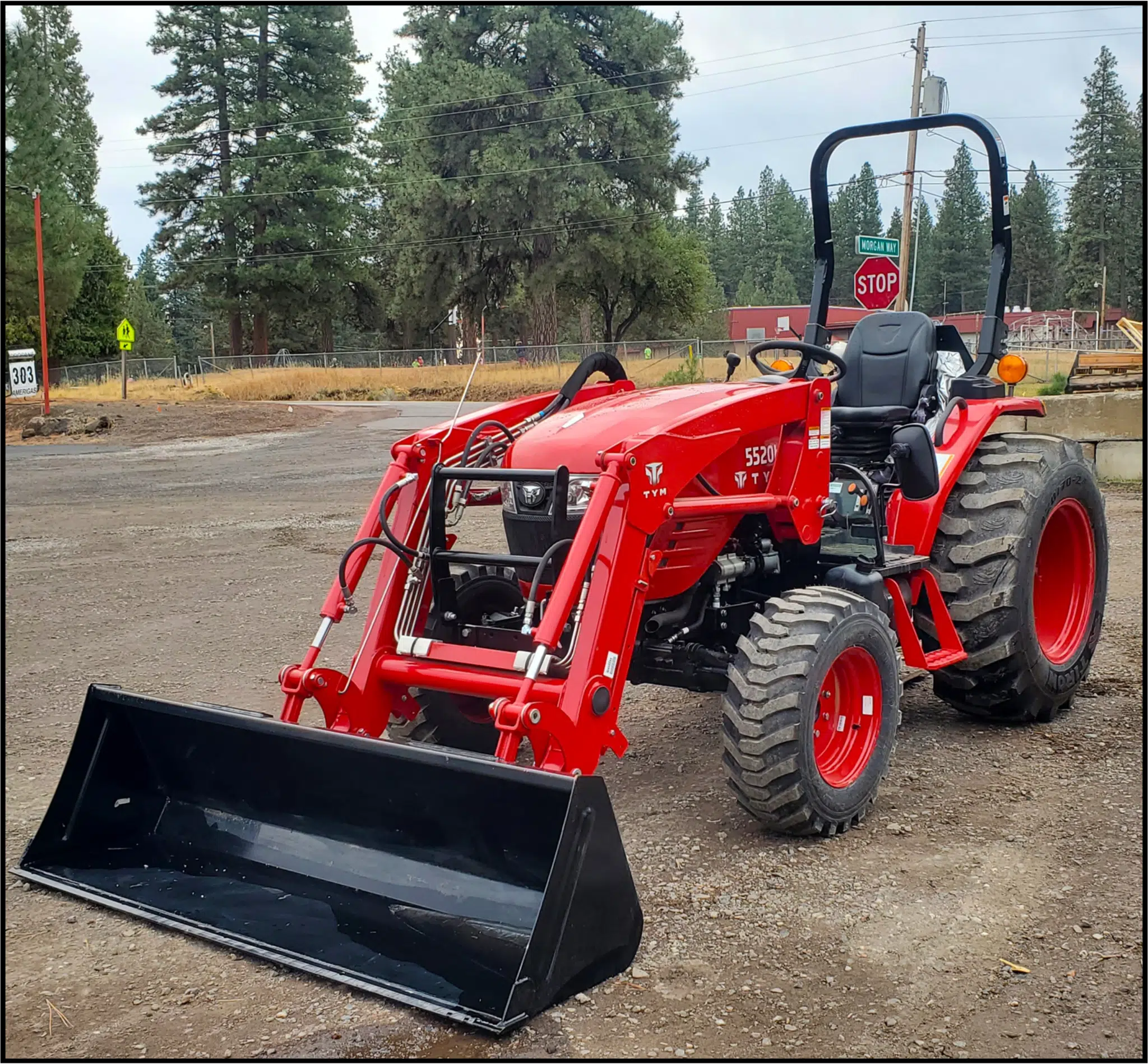

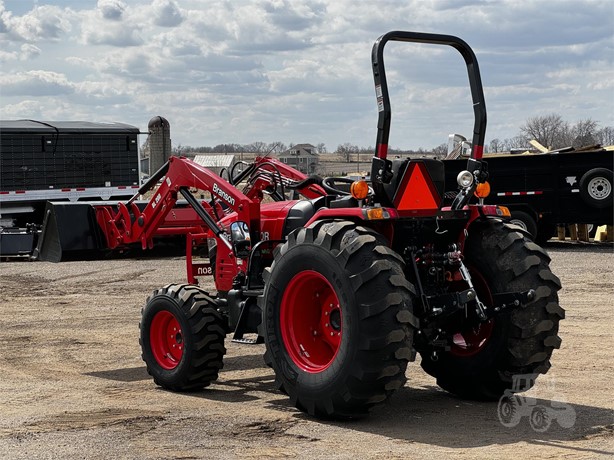

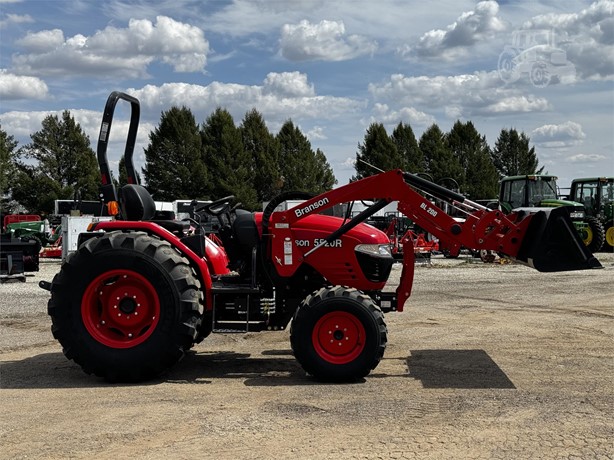

Branson 5520R

Name: Branson 5520R
Brand: Branson

Branson 5520R — Compact Utility tractor · 44 hp. Reference specifications; pending source verification.

The Branson 5520R is a compact tractor rated at 44 hp, one of the smaller options in its class. This model was produced from 2021 to 2023. It features a 4-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. The listed weight is 1740 kg, and it is suited for jobs covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

44 hp

Weight

1740 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

44 hp

Recorded weight

1740 kg

Transmissions

16-speed synchronized shuttle

Production years

2021-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBranson (a part of TYM)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post folding ROPS.Reference

Variants

5520RROPS shuttleReference

5520HROPS hydrostaticReference

5520CCab shuttleReference

5520CHCab hydrostaticReference

Engine

Kukje 2.3L 4-cyl dieselReference

Fuel tank44.7 LReference

Engine41.0 kWReference

KukjeReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.3 LReference

Bore/Stroke88 x 94 mmReference

EmissionsTier IVReference

Power41.0 kWReference

Air cleanerdual dryReference

Rated RPM2600Reference

Transmission

16-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears16 forward and reverseReference

PTO & Hydraulics

PTO (claimed)32.8 kWReference

Pump flow60.9 lpmReference

Steering flow18.9 lpmReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM584@2600Reference

Dimensions

Wheelbase180 cmReference

Weight1740 kgReference

Front tire9.5-16Reference

Rear tire14.9-24Reference

Standard tires (ag)Front: 9.5-16. Rear: 14.9-24Reference

Lawn/turf front29x12.5-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front10-16.5Reference

Industrial rear16.9-24Reference

Length323 cmReference

Width164 cmReference

Height (ROPS)249 cmReference

Ground clearance39 cmReference

Branson 5520R attachments

front-end loaderReference

backhoeReference

Attachment overview

Front-end loaderReference

BackhoeReference

Branson BH250 Backhoe

Backhoe typeBranson BH250 BackhoeReference

Transport height231 cmReference

2-Foot flat digging depth262 cmReference

Reach from pivot341 cmReference

Loading height234 cmReference

Bucket Rotation151°Reference

Swing Arc180°Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
