Tractor · 2005Unverified

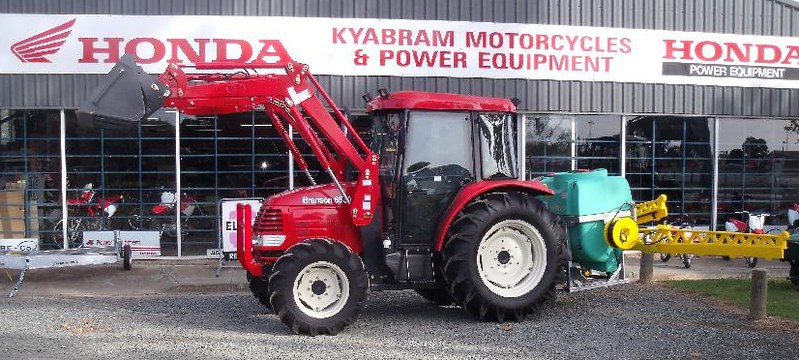

Branson 6530C
Branson 6530C · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
2634 kg
Hover a source tag to verify
Overview
ManufacturerBransonReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab with heat and air-conditioning.Reference
Variants
6530RROPSReference
6530CcabReference
Engine
Cummins 3.3L 4-cyl dieselReference
Fuel tank90.8 LReference
Engine (gross)48.5 kWReference
Cummins B3.3Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke95 x 115 mmReference
Power (gross)48.5 kWReference
Air cleanerdry elementReference
Pre-heatingblock heater (optional)Reference
Compression18:1Reference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
24-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/680/1000Reference
Dimensions
Wheelbase203 cmReference
Weight2634 kgReference
Front tire11.2-20Reference
Rear tire14.9-30Reference
Ag front11.2-20Reference
Ag rear14.9-30Reference
Length364 cmReference
Width175 cmReference
Height (cab)254 cmReference
Ground clearance35 cmReference
Front tread125 to 162 cmReference
Rear tread127 to 155 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
