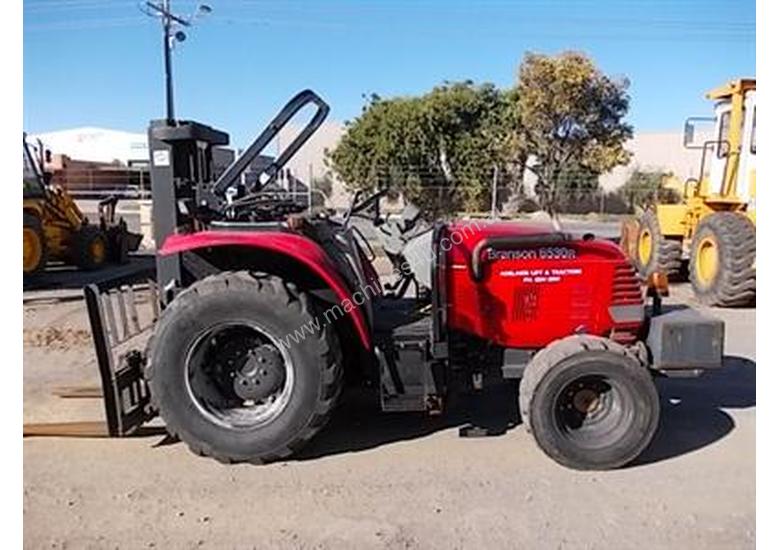

The Branson 6530R is a compact tractor model, rated at 57 hp, manufactured in 2005. It features a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission, and is listed at a weight of 2431 kg. The 6530R is designed for use in areas of approximately 200 acres. Detailed specifications for the model are provided below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Weight
2431 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
57 hp
Recorded weight
2431 kg
Transmissions
24-speed synchronized shuttle
Production years
2005-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBransonReference
Built in Yangsu-ri, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS. Canopy optional.Reference
Variants
6530RROPSReference
6530CcabReference
Engine
Cummins 3.3L 4-cyl dieselReference
Fuel tank84.0 LReference
Engine48.5 kWReference
CumminsReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke95 x 115 mmReference
Power48.5 kWReference
Compression18:1Reference
Rated RPM2600Reference
Starter volts12Reference
Transmission
24-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/680/1000Reference
Dimensions
Wheelbase203 cmReference
Weight2431 kgReference
Front tire11.2-20Reference
Rear tire14.9-30Reference
Ag front11.2-20Reference
Ag rear14.9-30Reference
Length388 cmReference
Width187 cmReference
Height245 cmReference
Ground clearance38 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
