Tractor · 2012Unverified

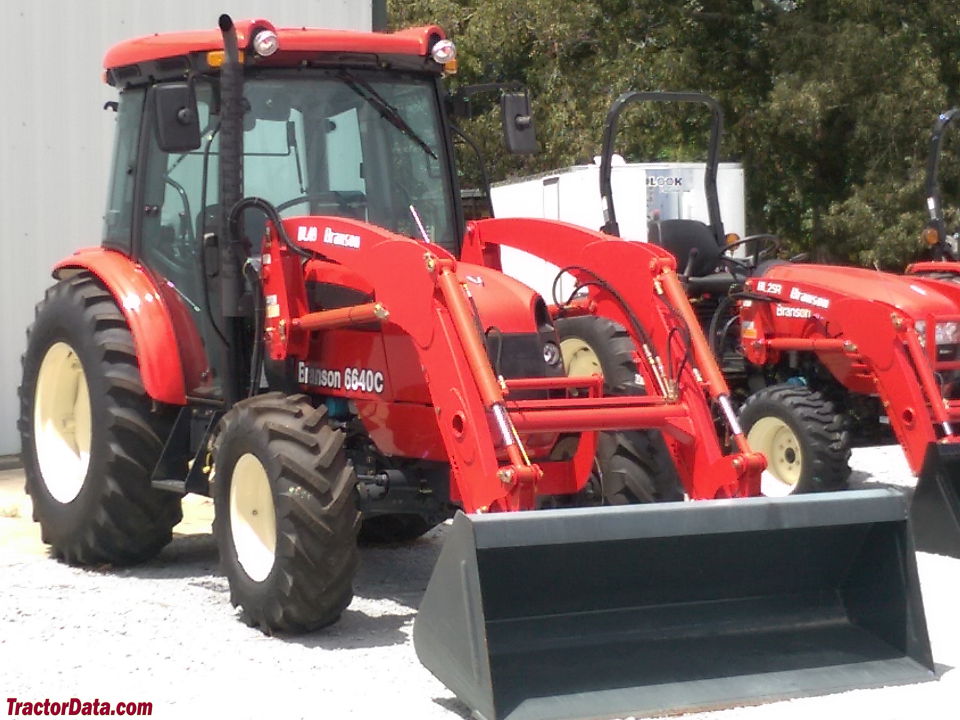

Branson 6640C
Branson 6640C — 40 Series · 57 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Weight
2642 kg
Hover a source tag to verify
Overview
ManufacturerBransonReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
Kukje 3.4L 4-cyl dieselReference
Fuel tank90.8 LReference
Engine49.2 kWReference
Kukje D3400NAReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke98 x 113 mmReference
Power49.2 kWReference
Fuel use9.1 l/hourReference
Air cleanerdryReference
Pre-heatingair heaterReference
Compression19.5:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed syncro shuttleReference
Typesyncro shuttleReference
Gears24 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
Typeopen centerReference
Mid valves2Reference
Pump flow42.0 lpmReference
Steering flow26.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2177 kgReference
Rear PTOindependentReference
Rear PTO Type540/670/1000 (1.375)Reference
Dimensions
Wheelbase203 cmReference
Weight2642 kgReference
Front tire12.5/80-18Reference
Rear tire16.9-28Reference
Weight734 kgReference
Ag front12.5/80-18Reference
Ag rear16.9-28Reference
Lawn/turf front31x15.50-15Reference
Lawn/turf rearLSW570x648Reference
Industrial front12.5/80-18Reference
Industrial rear16.9-28Reference
Length360 cmReference
Width185 cmReference
Height256 cmReference
Ground clearance38 cmReference
Front tread177 to 188 cmReference
Rear tread177 to 188 cmReference
Branson 6640C attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Branson B9620 Backhoe
Backhoe typeBranson B9620 BackhoeReference
Digging depth307 cmReference
2-Foot flat digging depth292 cmReference
Reach from pivot378 cmReference
Loading height233 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2075 kgReference
Dipperstick force1440 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
