Tractor · 2016Unverified

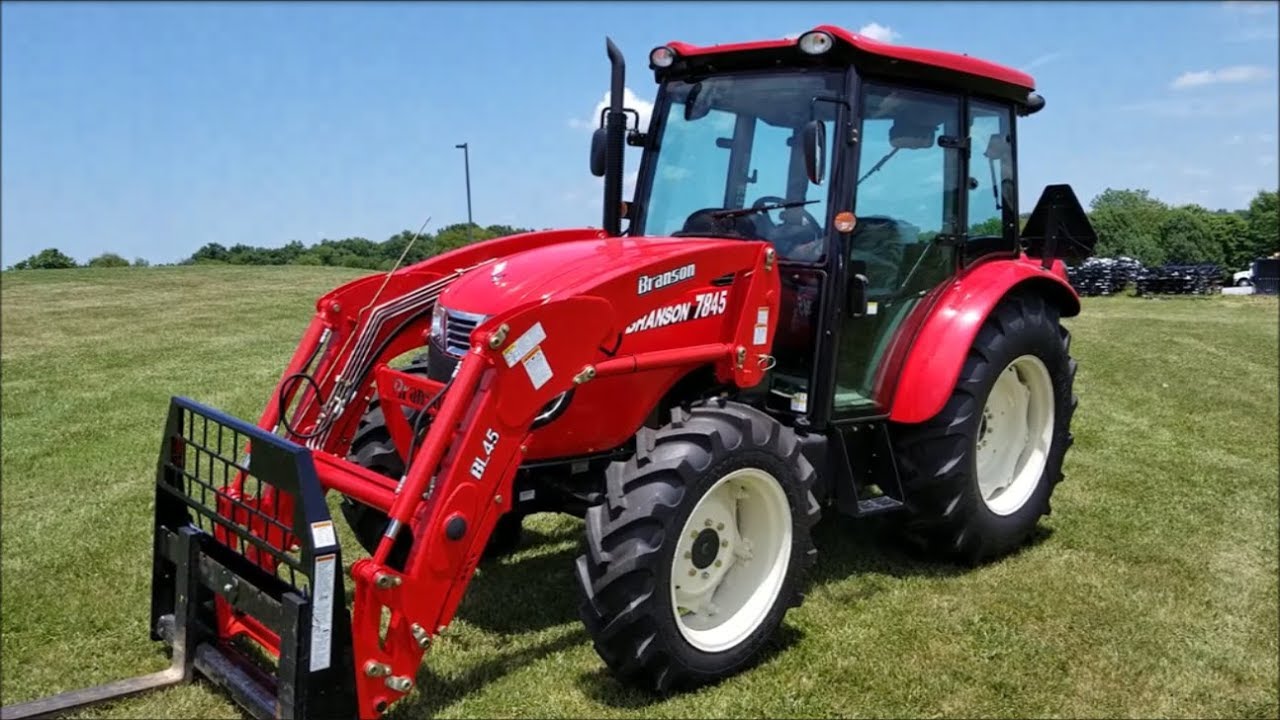

Branson 7845C
Branson 7845C — 45 Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
2835 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
7845RROPSReference
7845CCabReference
Engine
Kukje 3.4L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine58.2 kWReference
Kukje D3400T10-UTC-3Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke98 x 113 mmReference
Power58.2 kWReference
Air cleanerdry dual elementReference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed sychronized shuttleReference
Typesychronized shuttleReference
Gears16 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)47.7 kWReference
Pump flow46.9 lpmReference
Steering flow31.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear Armstelescopic lower linksReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Dimensions
Wheelbase219 cmReference
Weight2835 kgReference
Front tire11.2x24Reference
Rear tire16.9x30Reference
Standard tires (ag)Front: 11.2x24. Rear: 16.9x30Reference
Length387 cmReference
Width189 cmReference
Height (ROPS)260 cmReference
Ground clearance46 cmReference
Branson 7845C attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
