Tractor · 2000Unverified

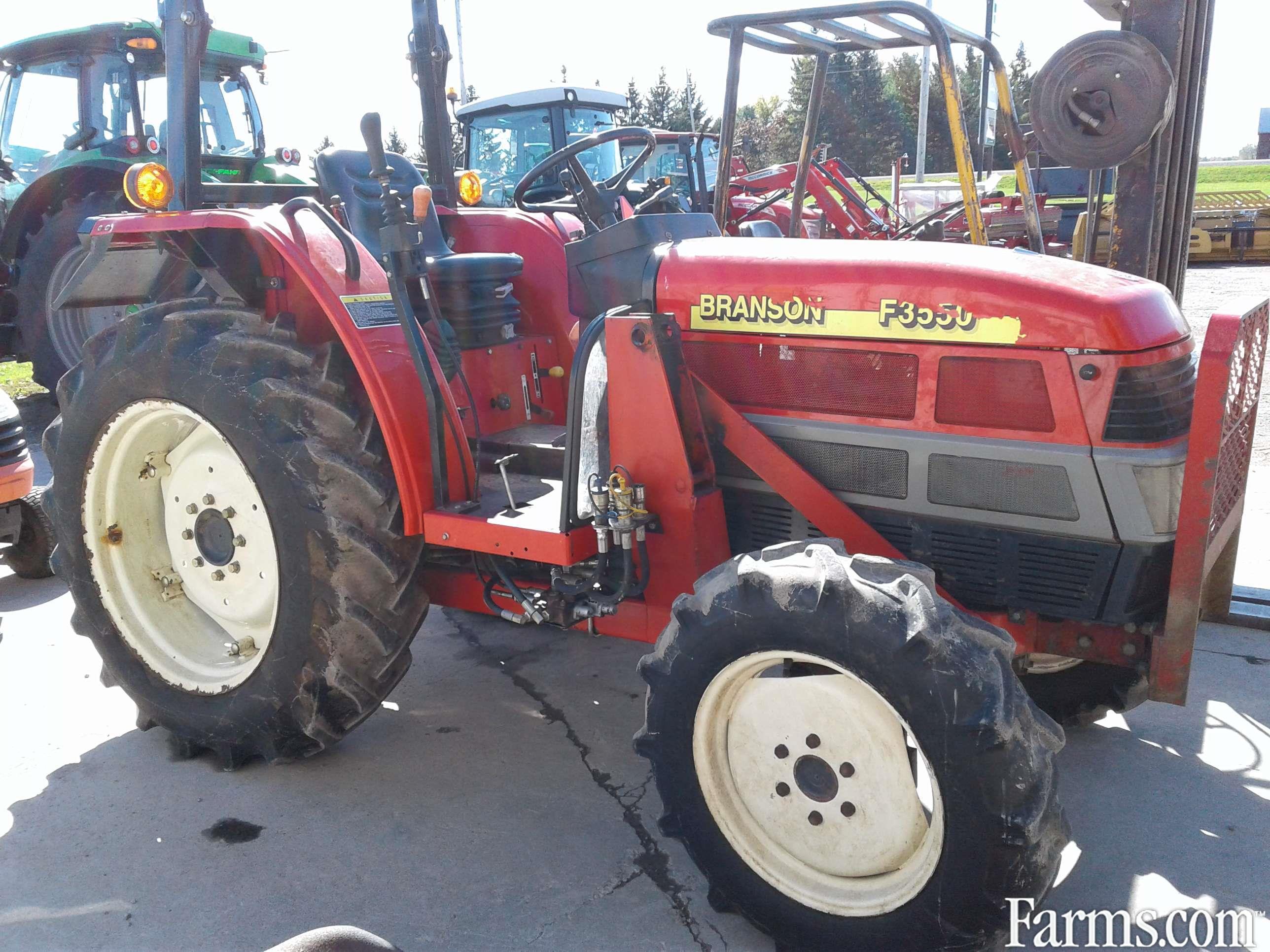

Branson F3550
Branson F3550 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1601 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
ROPS. Foldable ROPS optional. Canopy optional.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Engine26.5 kWReference
Mitsubishi S4L2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power26.5 kWReference
Pre-heatingglow plugsReference
Pre-heatingblock heater (optional)Reference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)22.7 kWReference
Total flow31.0 lpmReference
Rear TypeIReference
Rear lift (at ends)1170 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Weight1601 kgReference
Rear tire8-18Reference
Ag rear8-18Reference
Ag front8.3x16Reference
Ag front9.5x16Reference
Ag rear13.6x24Reference
Ag rear14.9x24Reference
Lawn/turf front33x12.5x15Reference
Lawn/turf rear14.9x24Reference
Industrial front10x16.5Reference
Industrial rear420/70Dx24Reference
Length322 cmReference
Width153 cmReference
Height (ROPS)224 cmReference
Ground clearance30 cmReference
Speeds
With 12.4-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
