Tractor · 1949Unverified

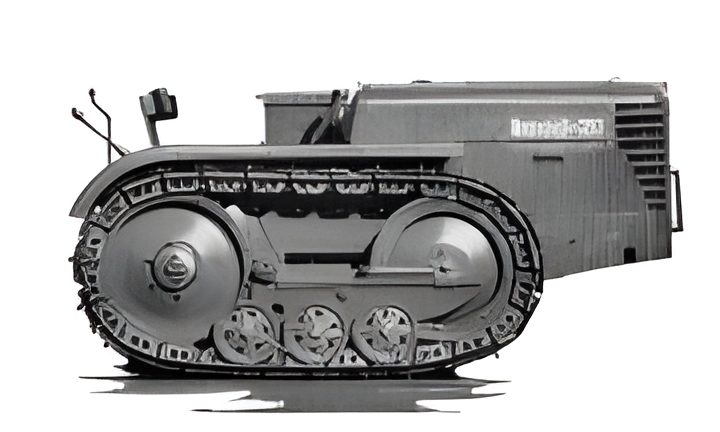

Bristol 20
Bristol 20 — Agricultural Crawler tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1360 kg
Hover a source tag to verify
Overview
ManufacturerBristolReference
Agricultural Crawler tractorReference
Built in EnglandReference
DrivecrawlerReference
Open operator station.Reference
Engine
Austin 2.2L 4-cyl gasolineReference
Fuel tank40.9 LReference
Engine16.4 kWReference
Austin A70Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke79 x 111 mmReference
Power16.4 kWReference
Air cleaneroil bathReference
Compression5.6:1Reference
Rated RPM1500Reference
Starter volts12Reference
Coolant capacity15.9 LReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1360 kgReference
7-inch tracksReference
Length241 cmReference
Width96 cmReference
Height (hood)117 cmReference
Height (exhaust)162 cmReference
Ground clearance35 cmReference
Gauge74 cmReference
Bristol 20 Tracks
Width17 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
