Tractor · 2000Unverified

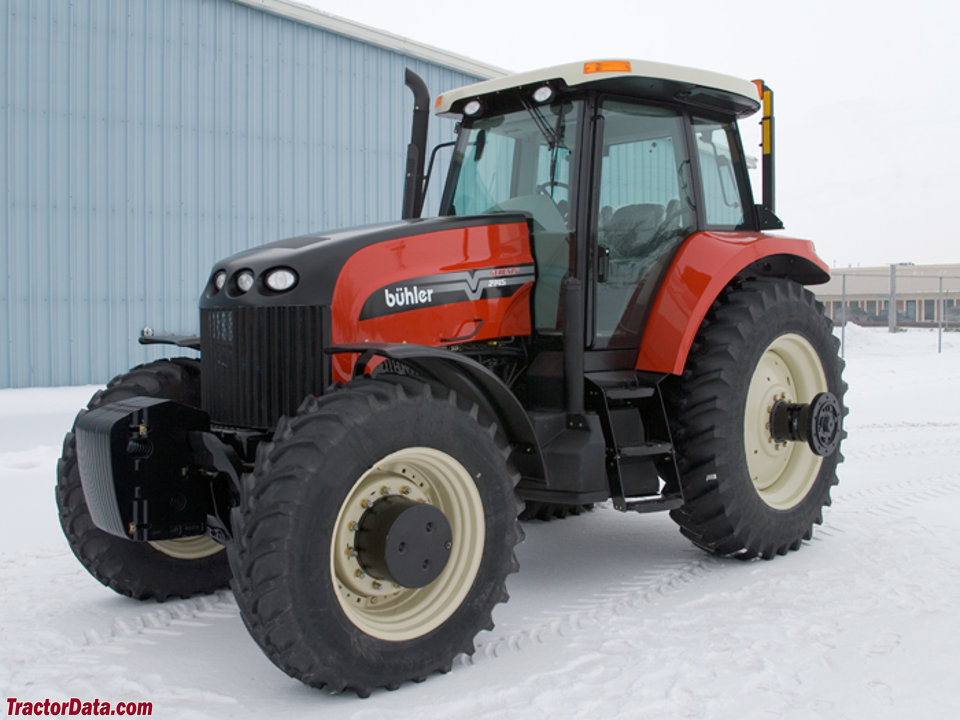

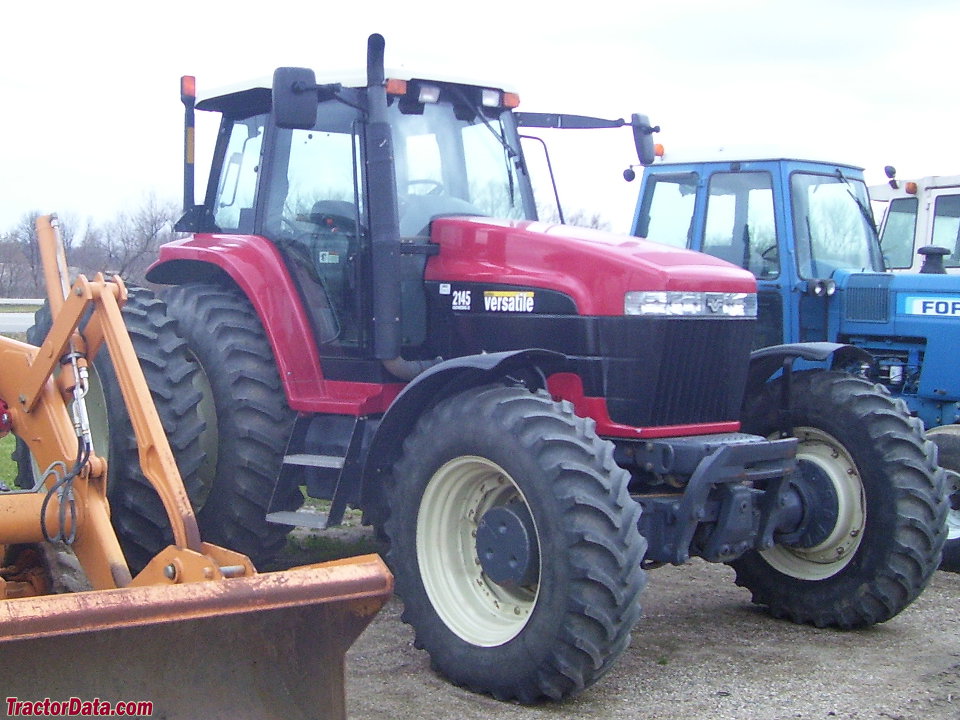

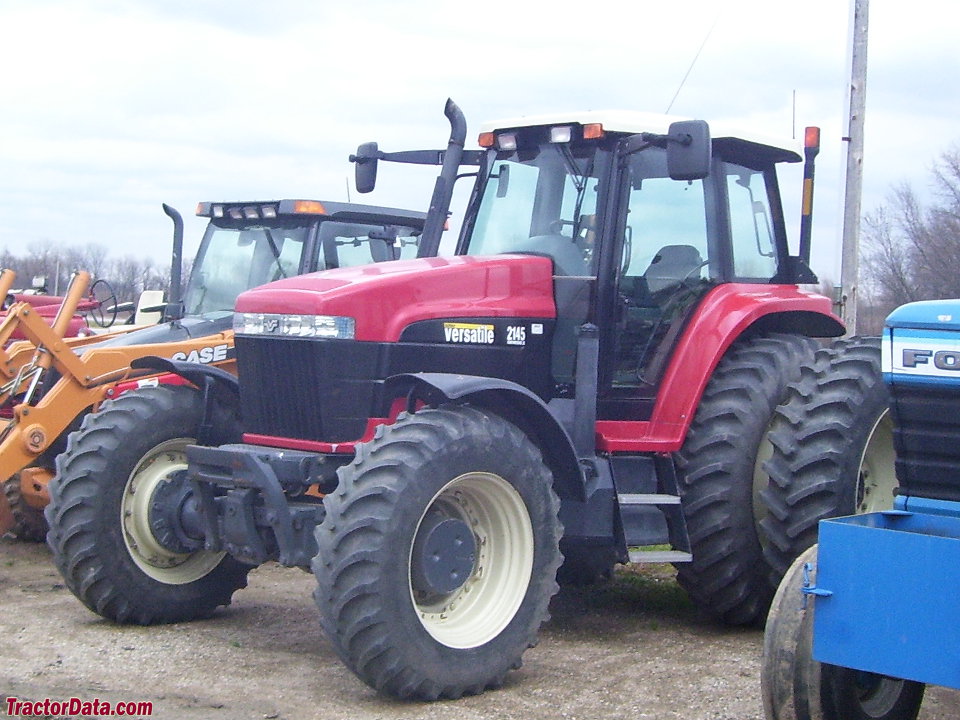

Buhler Versatile 2145
Buhler Versatile 2145 — Genesis Series · 148 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
148 hp
Max power
125.0 kW
Weight
7697 kg
Hover a source tag to verify
Overview
ManufacturerBuhler VersatileReference
Row-Crop tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $99,000 in 2008Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
8670similar Ford modelReference
Engine
New Holland 7.5L 6-cyl dieselReference
Engine145.4 kWReference
Drawbar (tested)98.5 kWReference
New Holland GenesisReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
EmissionsTier IIReference
Power145.4 kWReference
Fuel systemelectronic fuel injectionReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity21.3 LReference
Coolant capacity24.6 LReference
Max power125.0 kWReference
Power at rated engine speed110.1 kWReference
Max power98.5 kWReference
Transmission
16-speed full power shiftReference
18-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 9 reverseReference
Clutchelectro-hydraulic wet discReference
Gears18 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)108.1 kWReference
PTO (tested)125.0 kWReference
Hydraulic system117.3 LReference
Typeclosed center load-sensingReference
Capacity117.3 LReference
Pressure200.0 barReference
Valves3 or 4Reference
Total flow113.6 lpmReference
Total flow208.2 lpmReference
Rear Type3Reference
Controlelectronic draft sensingReference
Rear lift5670 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1878Reference
Engine RPM1000@1903Reference
Power at rated PTO speed122.1 kWReference
Capacities
Fuel416.4 LReference
Dimensions
Standard Steer Wheelbase300 cmReference
Ultra Steer Wheelbase311 cmReference
Weight7697 kgReference
Front tire14.9R28Reference
Rear tire20.8R38Reference
Ag front14.9R28Reference
Ag rear20.8R38Reference
Standard Steer Length509 cmReference
Ultra Steer Length520 cmReference
Width284 cmReference
Height (cab)309 cmReference
Height (exhaust)314 cmReference
Ground clearance47 cmReference
Rear axle91 by 2844 mmReference
2WD Front tread154 to 220 cmReference
4WD Front tread152 to 223 cmReference
Rear tread152 to 314 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDJuly 1996 - August 1996, Link: OCED Tractor Test 1649 fileReference
PTO performanceReference
Fuel use34.4 l/hourReference
Fuel use34.8 l/hourReference
Drawbar performanceReference
Gear 9 used for power test.Reference
Max pull7885 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
