Tractor · 2000Unverified

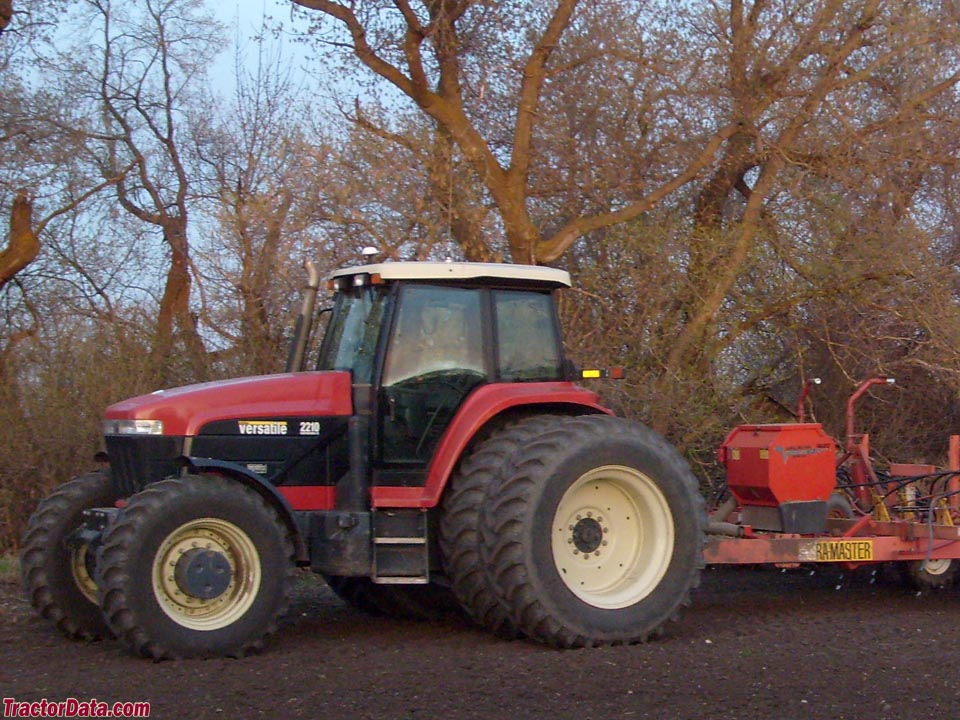

Buhler Versatile 2210
Buhler Versatile 2210 — Genesis Series · 212 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
212 hp
Max power
167.5 kW
Weight
8901 kg
Hover a source tag to verify
Overview
ManufacturerBuhler VersatileReference
Row-Crop tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $117,000 in 2008Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
8970similar Ford modelReference
Engine
New Holland 7.5L 6-cyl dieselReference
Engine205.1 kWReference
Drawbar (tested)141.3 kWReference
New Holland GenesisReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
EmissionsTier IIReference
Power205.1 kWReference
Fuel systemelectronic fuel injectionReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity21.3 LReference
Coolant capacity26.5 LReference
Max power167.5 kWReference
Power at rated engine speed158.4 kWReference
Max power141.3 kWReference
Transmission
16-speed full power shiftReference
18-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 9 reverseReference
Clutchelectro-hydraulic wet discReference
ManufacturerFunkReference
Gears18 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)156.6 kWReference
PTO (tested)167.5 kWReference
Hydraulic system140.0 LReference
Typeclosed center load-sensingReference
Capacity140.0 LReference
Pressure200.0 barReference
Valves3 or 4Reference
Total flow113.6 lpmReference
Total flow208.2 lpmReference
Rear TypeIIIReference
Controlelectronic draft sensingReference
Rear lift6804 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM1000@1903Reference
Power at rated PTO speed167.4 kWReference
Capacities
Fuel416.4 LReference
Dimensions
Standard Steer Wheelbase300 cmReference
Ultra Steer Wheelbase311 cmReference
Weight8901 kgReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Ag front16.9R30Reference
Ag rear20.8R42Reference
Standard Steer Length511 cmReference
Ultra Steer Length522 cmReference
Width284 cmReference
Height (cab)309 cmReference
Height (exhaust)314 cmReference
Ground clearance47 cmReference
Rear axle104 by 2844 mmReference
Rear axle104 by 3048 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 314 cmReference
Rear tread152 to 325 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDMay 1996 - July 1996, Link: OCED Tractor Test 1646 fileReference
PTO performanceReference
Fuel use43.9 l/hourReference
Fuel use44.7 l/hourReference
Drawbar performanceReference
Gear 9 used for power test.Reference
Max pull12705 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
