Tractor · 2003Unverified

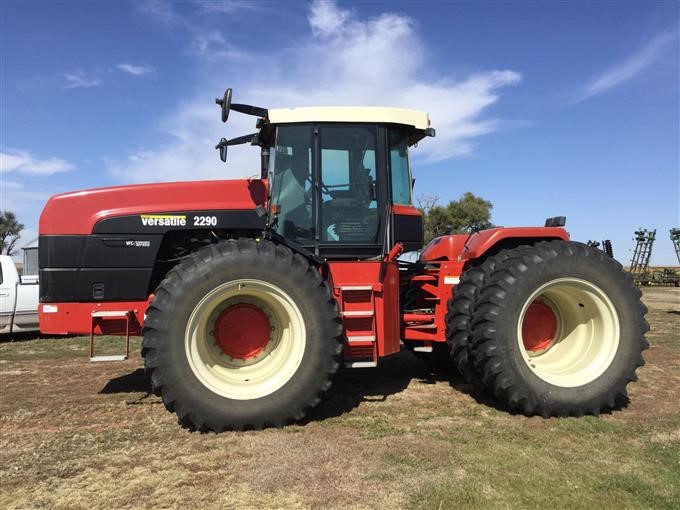

Buhler Versatile 2290
Buhler Versatile 2290 — Four-wheel Drive (4WD) tractor · 290 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
290 hp
Hover a source tag to verify
Overview
ManufacturerBuhler VersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
Cummins 10.8L 6-cyl dieselReference
Engine216.3 kWReference
Cummins QSM11Reference
turbo dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement10.8 LReference
Bore/Stroke125 x 147 mmReference
Power216.3 kWReference
Compression16.3:1Reference
Rated RPM2100Reference
Transmission
12-speedReference
TransmissionQuadShift IIIReference
Gears12 forward and 4 reverseReference
TransmissionPowerShiftReference
Gears12 forward and 2 reverseReference
PTO & Hydraulics
Typeclosed centerReference
Valves4Reference
Valves5 (with 3-point hitch)Reference
Total flow170.3 lpmReference
Rear TypeIVN/IIIReference
Rear lift5896 kgReference
Dimensions
Wheelbase337 cmReference
Length675 cmReference
Height372 cmReference
Ground clearance50 cmReference
Electrical
Charging amps130Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
