Tractor · 2008Unverified

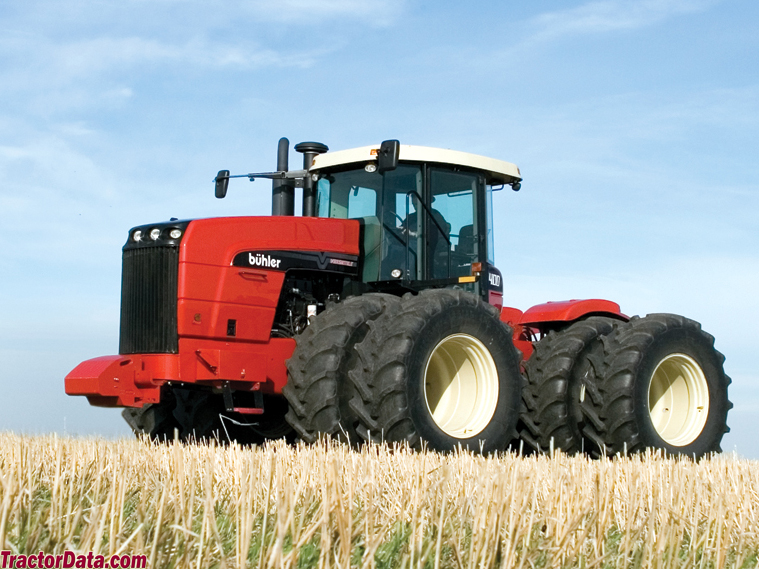

Buhler Versatile 400
Buhler Versatile 400 — Four-wheel Drive (4WD) tractor · 400 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
400 hp
Weight
14515 kg
Hover a source tag to verify
Overview
ManufacturerBuhler VersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockoptionalReference
Dual dry caliper brakesReference
Cab standard with heat and A/CReference
Engine
Cummins 10.8L 6-cyl dieselReference
Engine298.3 kWReference
Cummins QSM11Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.8 LReference
Bore/Stroke125 x 147 mmReference
Power298.3 kWReference
Torque1830.6 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity36.7 LReference
Coolant capacity54.9 LReference
Transmission
12-speed partially synchronizedReference
12-speed powershiftReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Four synchronized gears in each of three ranges.Reference
TypepowershiftReference
Gears12 forward and 2 reverseReference
Capacities
Fuel946.2 LReference
PTO & Hydraulics
Hydraulic system75.7 LReference
Typeclosed center load sensingReference
Capacity75.7 LReference
Pressure200.0 barReference
Valves4 to 6Reference
Total flow189.2 lpmReference
Total flow283.9 lpmReference
Rear Type3/4N optionalReference
Rear lift5896 kgReference
Rear PTOoptionalReference
Rear PTO Type1000Reference
Dimensions
Wheelbase360 cmReference
Weight14515 kgReference
Length698 cmReference
Height (cab)363 cmReference
Height (exhaust)370 cmReference
Shipping weight14515 kgReference
Max weight18144 kgReference
Ground clearance42 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps160Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
