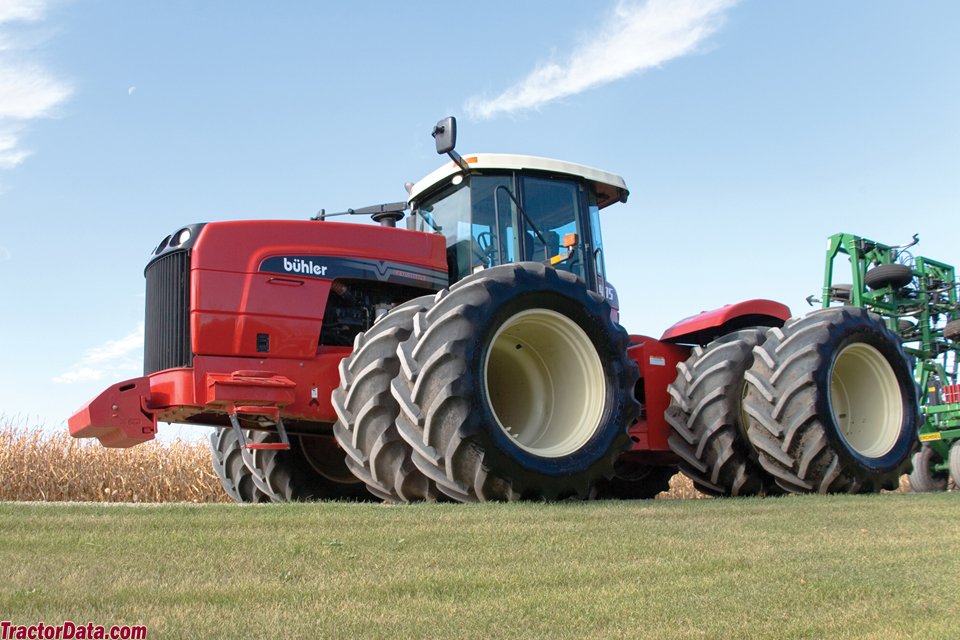

Buhler Versatile 485
Buhler Versatile 485 — HHT Series · 485 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
485 hp
Weight
19051 kg
Hover a source tag to verify
Overview
ManufacturerBuhler VersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Dual dry caliper brakesReference
Cab standard with heat and A/CReference
Engine
Cummins 15.0L 6-cyl dieselReference
Engine361.7 kWReference
Cummins QSX15Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement15.0 LReference
Bore/Stroke137 x 170 mmReference
Power361.7 kWReference
Torque2000.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity43.9 LReference
Coolant capacity83.3 LReference
Transmission
12-speedReference
16-speedReference
Transmissionpartial synchroReference
Gears12 forward and 4 reverseReference
Four synchronized gears in each of three rangesReference
TransmissionpowershiftReference
Gears16 forward and 4 reverseReference
Caterpillar electro-hydraulic power shiftReference
Capacities
Fuel1324.8 LReference
PTO & Hydraulics
Hydraulic system113.6 LReference
Typeclosed center load sensingReference
Capacity113.6 LReference
Pressure200.0 barReference
Valves4 to 8Reference
Total flow208.2 lpmReference
Total flow302.8 lpmReference
Rear PTOoptionalReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight19051 kgReference
Length759 cmReference
Height (cab)363 cmReference
Height (exhaust)393 cmReference
Shipping weight19051 kgReference
Max weight19731 kgReference
Ground clearance55 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps160Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
