Tractor · 2010Unverified

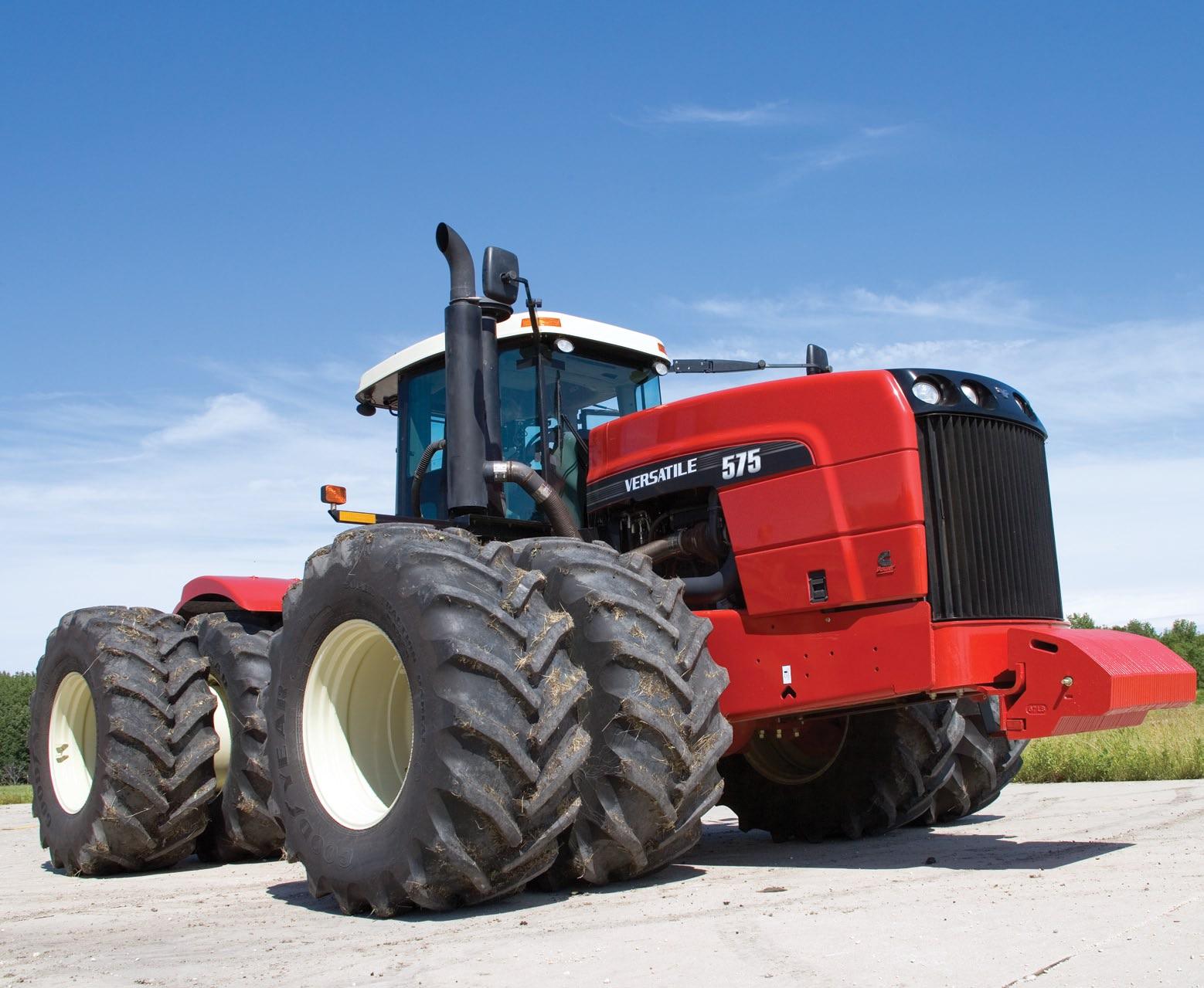

Buhler Versatile 575

Name: Buhler Versatile 575
Brand: Buhler Versatile

Buhler Versatile 575 — HHT Series · 575 hp. Reference specifications; pending source verification.

The Buhler Versatile 575 is a tractor with a rated output of 575 hp, categorising it as a high-powered machine in its class. It was produced in 2010 and features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight is 21636 kg, and this model is suited to tasks involving areas of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

575 hp

Weight

21636 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

575 hp

Recorded weight

21636 kg

Transmissions

16-speed power shift

Production years

2010-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBuhler VersatileReference

Four-wheel Drive (4WD) tractorReference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Differential lockhydraulic lockReference

Dual dry caliper brakesReference

Trailer brakeshydraulic standardReference

Deluxe cab standard with air-contidioning, automatic temperature control, and leather seating.Reference

Engine

Cummins 15.0L 6-cyl dieselReference

Engine428.8 kWReference

Cummins QSX15Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement15.0 LReference

Power428.8 kWReference

Maximum Power454.9 kWReference

Torque2542.5 NmReference

Oil capacity47.7 LReference

Coolant capacity75.7 LReference

Transmission

16-speed power shiftReference

TransmissionCaterpillarReference

Typepower shiftReference

Gears16 forward and 4 reverseReference

Capacities

Fuel1324.8 LReference

Max capacity26082 kgReference

PTO & Hydraulics

Hydraulic system113.6 LReference

Typeclosed center load sensingReference

Capacity113.6 LReference

Pressure200.0 barReference

Valves6Reference

Total flow302.8 lpmReference

DrawbarCategory VReference

Rear PTOoptionalReference

Rear PTO Type1000Reference

Dimensions

Wheelbase391 cmReference

Weight21636 kgReference

Length759 cmReference

Height (cab)358 cmReference

Height (exhaust)393 cmReference

Clearance (drawbar)55 cmReference

Shipping21636 kgReference

Max Drawbar4082 kgReference

Max Drawbar5443 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps180Reference

Charging volts12Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
