Tractor · 1960Unverified

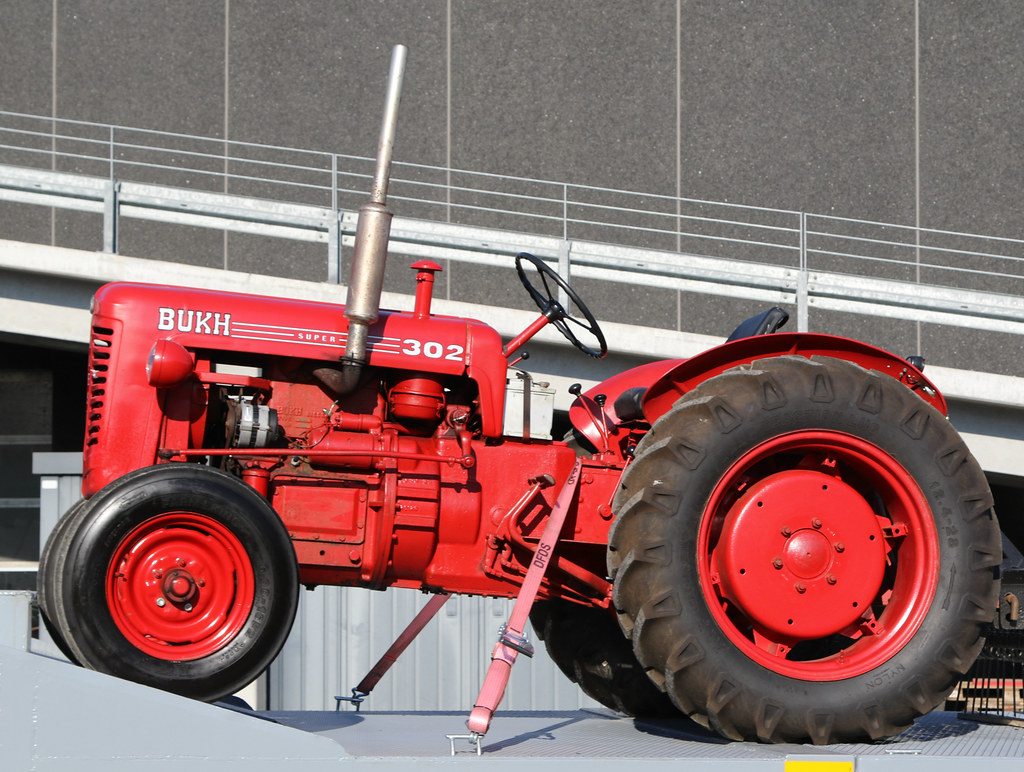

Bukh 302
Bukh 302 — Utility tractor · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1678 kg
Hover a source tag to verify
Overview
ManufacturerBukhReference
Utility tractorReference
Built in DenmarkReference
Two-wheel driveReference
Open operator station.Reference
Engine
Bukh 2.0L 2-cyl dieselReference
Bukh 2.3L 2-cyl dieselReference
Fuel tank35.0 LReference
Engine26.8 kWReference
Bukh 2EV100Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke100 x 130 mmReference
Power22.4 kWReference
Rated RPM1800Reference
StarterelectricReference
Starter volts12Reference
Bukh 2G105Reference
The 2G105 replaced the 2EV100 as the engine for the 302 in 1961.Reference
Displacement2.3 LReference
Bore/Stroke105 x 130 mmReference
Power26.8 kWReference
Rated RPM2000Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
Four gears in two ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)21.6 kWReference
Pump flow15.9 lpmReference
Rear TypeIReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1935Reference
Engine RPM1000@1800Reference
Dimensions
Weight1678 kgReference
Capacities
Diameter22 cmReference
Width14 cmReference
RPM1440Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
