Tractor · 1960Unverified

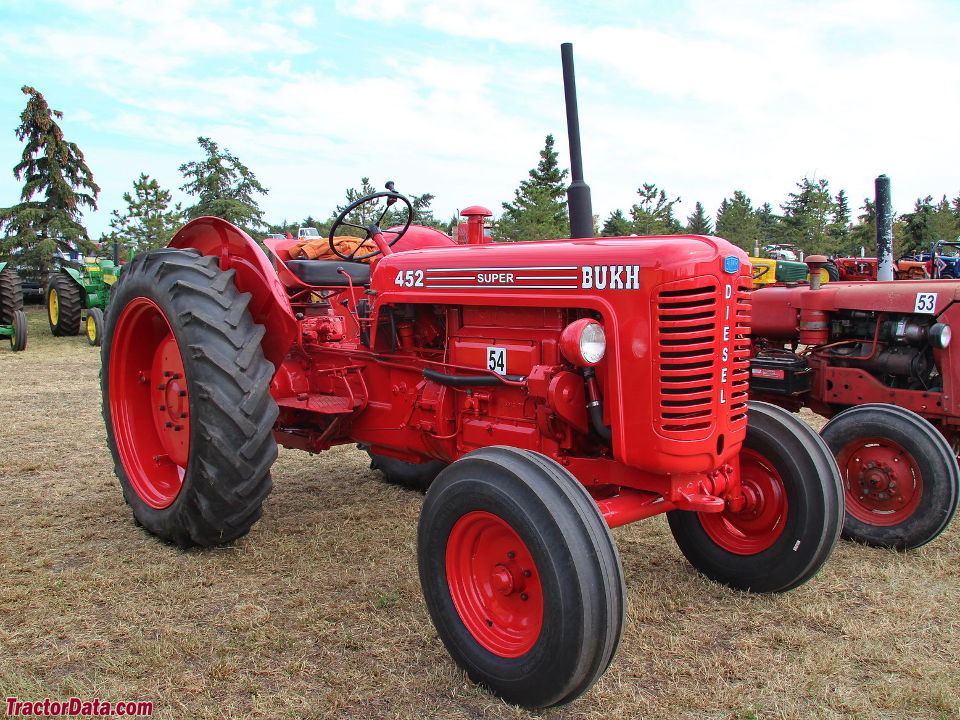

Bukh 452
Bukh 452 — Utility tractor · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
2358 kg
Hover a source tag to verify
Overview
ManufacturerBukhReference
Utility tractorReference
Built in DenmarkReference
Two-wheel driveReference
Open operator station.Reference
Engine
Bukh 3.1L 3-cyl dieselReference
Bukh 3.4L 3-cyl dieselReference
Engine41.0 kWReference
Bukh 3EV100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke100 x 130 mmReference
Power33.6 kWReference
Rated RPM1800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.0 LReference
Coolant capacity25.0 LReference
Bukh 3G105Reference
The 3G105 replaced the 3EV100 as the engine for the 452 in 1961.Reference
Displacement3.4 LReference
Bore/Stroke105 x 130 mmReference
Power41.0 kWReference
Rated RPM2000Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
Oil capacity22.1 LReference
Four gears in two ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)32.1 kWReference
Hydraulic system14.0 LReference
Capacity14.0 LReference
Pump flow32.2 lpmReference
Rear TypeIIReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1775Reference
Engine RPM1000@1855Reference
Capacities
Fuel48.8 LReference
Diameter22 cmReference
Width14 cmReference
RPM1825Reference
Dimensions
Weight2358 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
